x Platemaking / Master Feed / Ejection Section
chap.2
The following is the structure of the master clump opening / closing section viewed with the rear cover opened.
The rotation stop position of the master clump opening / closing lever is determined by the clump motor and
two cams. There are 3 rotation stop positions: A mode, B mode and C mode. Their functions are as follows:-
(1) Structure
2. Operation of Master Clump Open / Close Lever

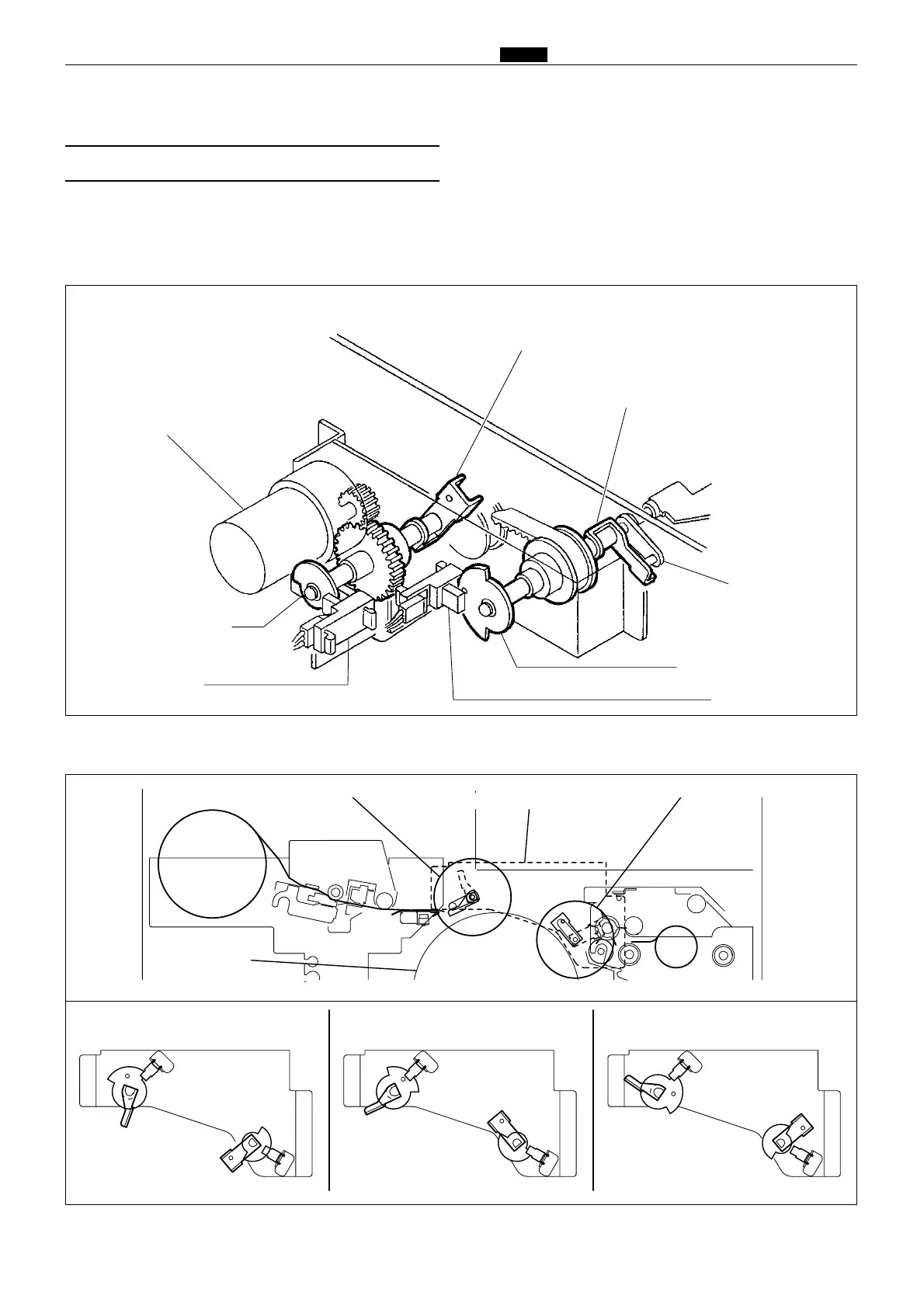

The drawing below is a section through the machine's interior, viewed from the control side.
Master clump opening / closing lever
Master clump opening / closing section
2A mode 2B mode 2C mode
Clump motor
B mode adjusting cam
Master set position
Drum
Master removal position
A / C mode adjusting cam
B mode sensor
A / C mode sensor
Master clump opening / closing lever
Master clump
23S0266
