72
c Paper Feed Section
chap.2
(4)

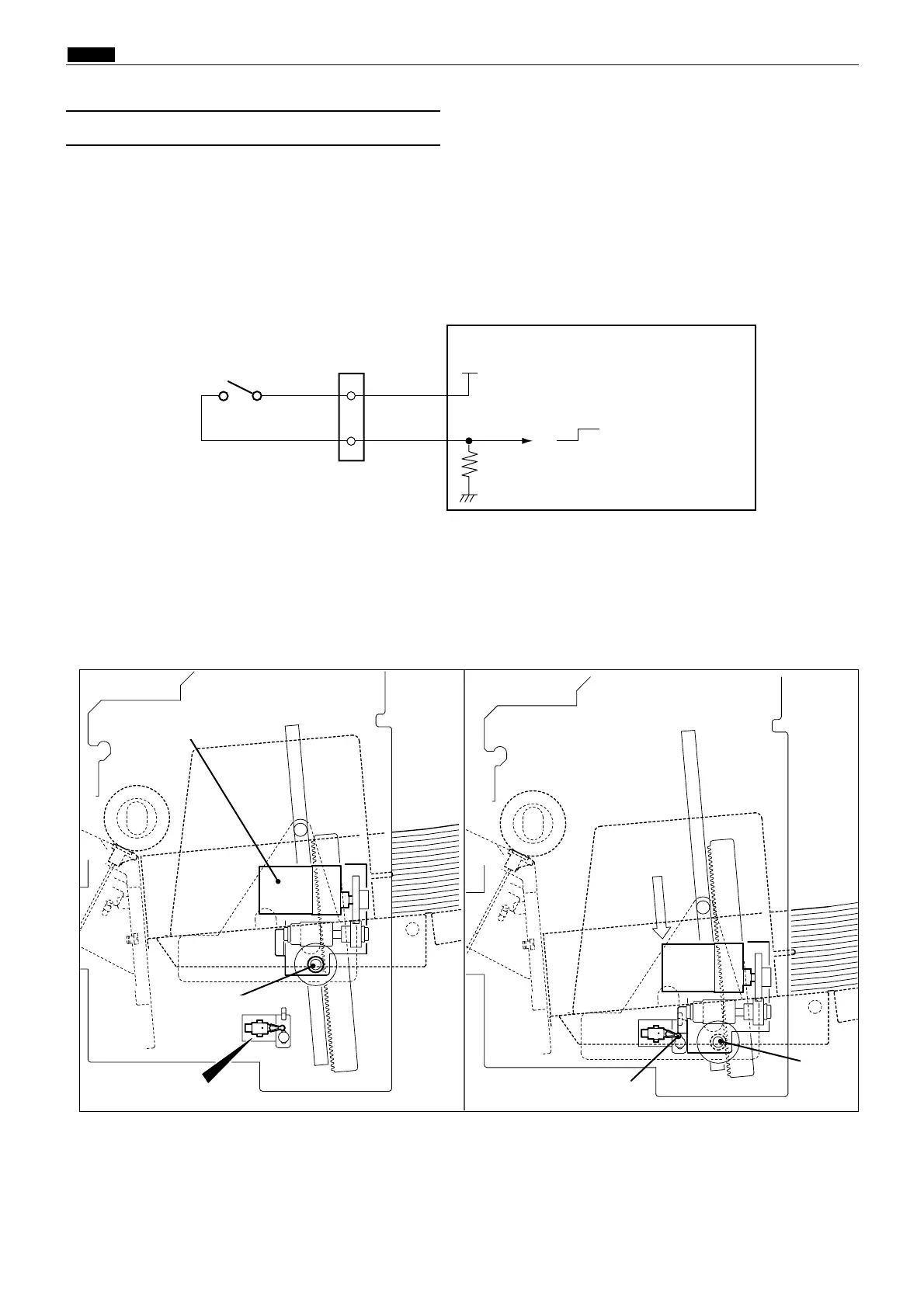

Elevator bottom Limit Switch
Description
Circuits
Operation
This is a micro switch that senses the bottom limit position of the feed tray.
When the feed tray rises, the bracket disengages from the switch and the switch closes. When the feed tray
descends to its bottom limit position, the bracket engages the switch’s actuator, opening the switch.
If the switch does not open within about 30 seconds of the sending of the LOWER FEED TRAY command, error
E002 (elevator lock) is displayed.
To Next Page
