Duplo DUPRINTER DP-440 - Long Paper Unit Mechanism( Option )

74
c Paper Feed Section
chap.2
(6) Long Paper Unit Mechanism (Option)

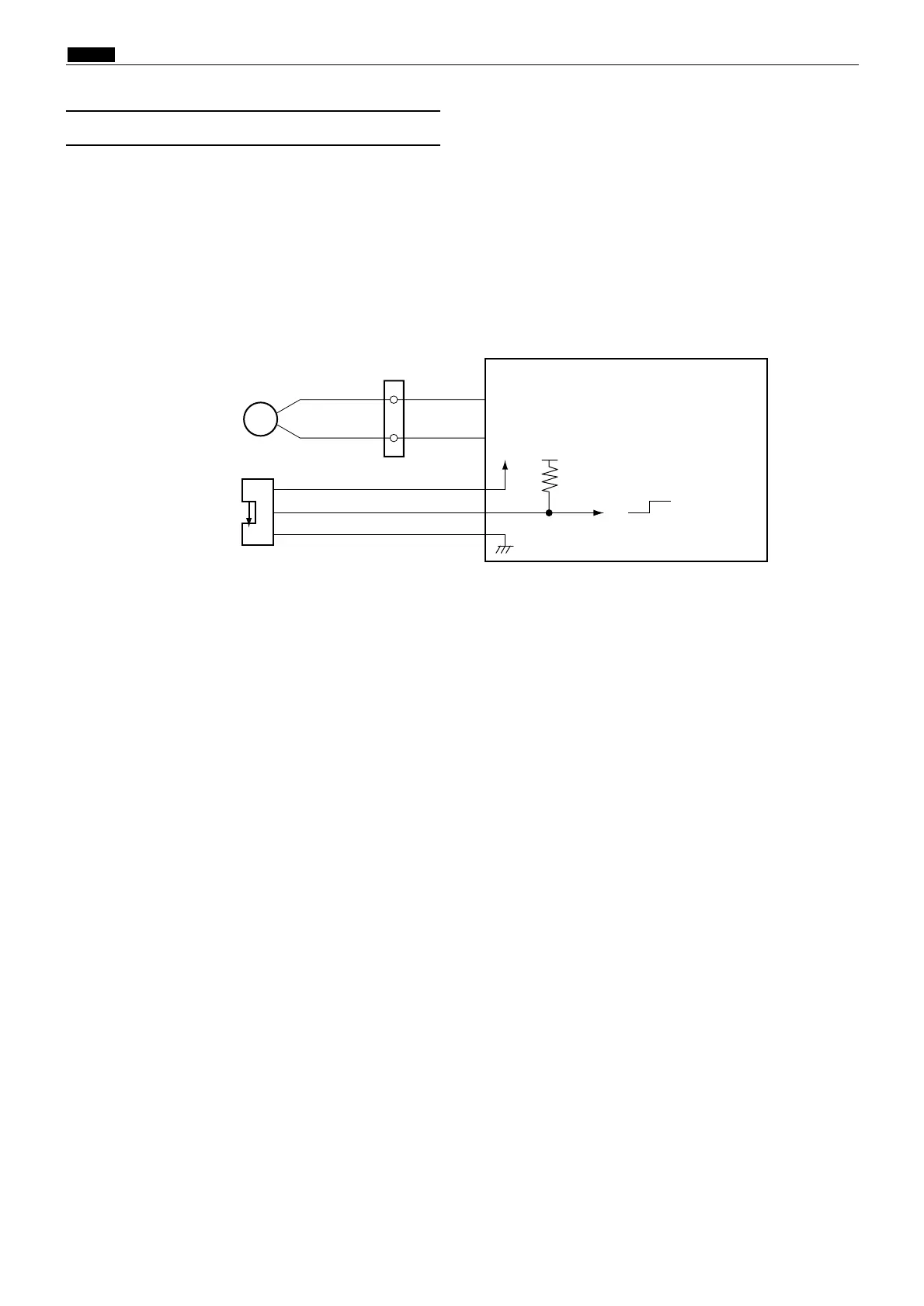

Circuits
Brown
White
2
1
G - roller motor
M
CN9-1
-2
Drive PCB unit
G - roller sensor
Red
Blue
CN9-28
1
2
3
-30
Yellow
-29
5V
5V
5V
0
Photopassing :0V
Photointerrupting:5V
440W33e
Description
With the LPU unit equipped, duration the timing roller and the guide roller are detached from each other is
extended (the guide roller is lifted by a few millimeters), thus the paper with the maximum length of 540 mm
can be fed through.
