68
c Paper Feed Section
chap.2

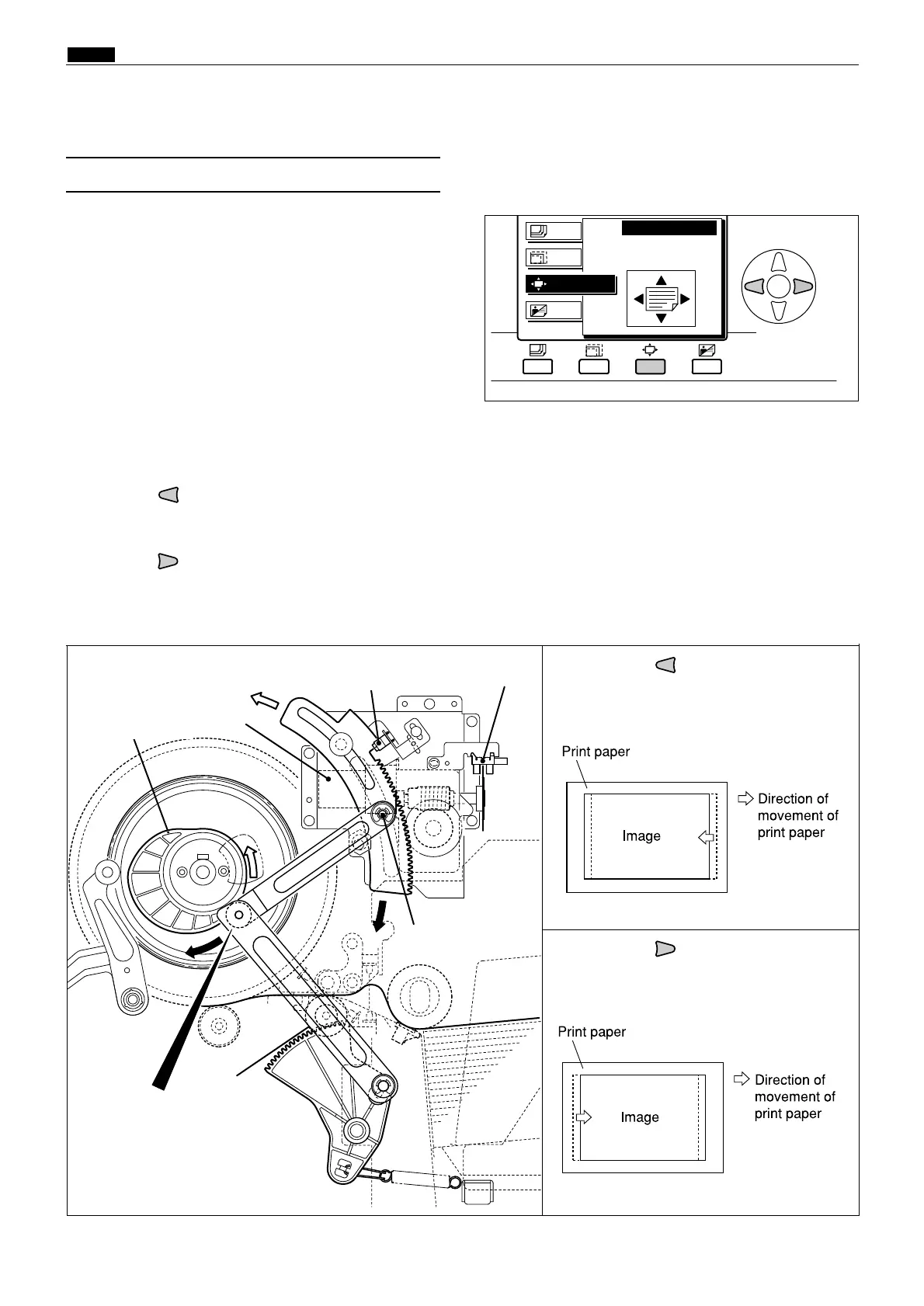

The printing position is adjusted by changing the
timing of the paper toward the drum with the
PRINTING POSITION key on the control panel.
Description
When the PRINTING POSITION key on the control
panel is pressed, the link cam is driven by the
motor. As the link cam moves, the cam follower
position (bearing) from the paper feed cam changes.
Accordingly drive timing for the timing roller can
be changed.
2Press the key ;
Cam follower moves in the direction of : e Drive timing of the timing roller becomes earlier.
Paper timing becomes earlier, and the picture image moves backward.
2Press the key ;
Cam follower moves in the direction of : b Drive timing of the timing roller becomes later.
Paper timing becomes later, and the picture image moves forward.
(1)
Printing Position Adjusting Mechanism
¡
Pressing makes cam follow-
er move in the
b
direction
¡
Pressing makes cam follow-
er move in the
e
direction
Timing roller
Link cam
Printing position motor
Paper feed cam
Cam follower
440307
3. Functions of parts
