b Press Section
chap.4
Screws
P-roller sensor
About 1mm
(1) Adjusting the of P-roller Sensor
bPress Section
¡For description of operation.
Adjustment procedure

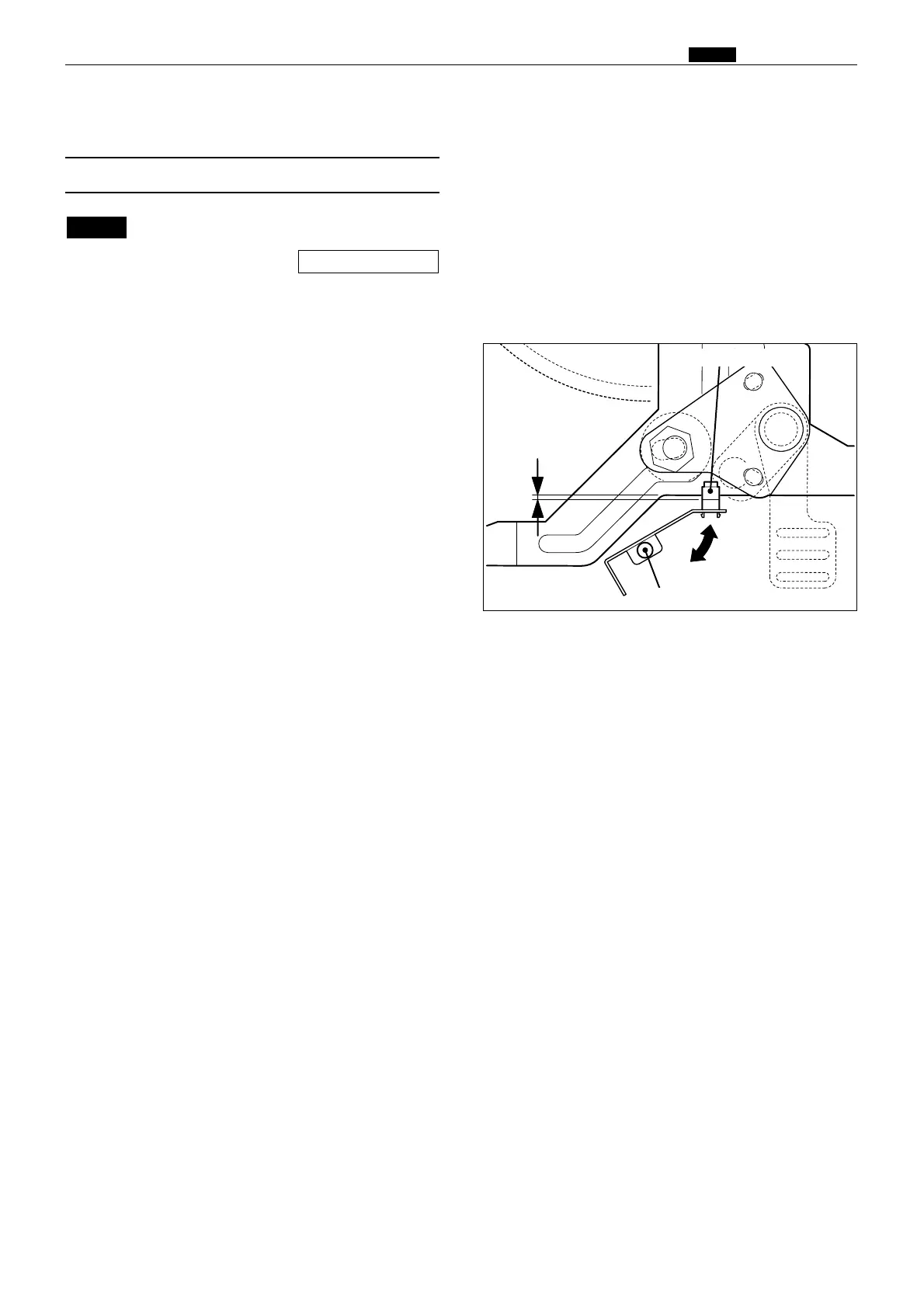

1) Loosen the screw indicated. Then move the
sensor bracket up/down to adjust the press
roll so that when it is pushed down to the
lowest position by the cam, the distance
between the bottom of its sensor and the
end of the bracket is about 1mm.
NOTE :
\See page 83
