x Platemaking / Master Feed / Ejection Section
chap.2
xPlatemaking / Master Feed / Ejection Section
Make the master clump of the drum unit clump the master top end, performing platemaking on the master
with the thermal head. (In this machine, the master on the drum is ejected at the same time when
platemaking is performed.)
The master is conveyed to the drum unit via the platen roller and sponge roller1,2 by driving of the master
feed stepping motor, while it is being processed in the head section. Sponge roller2 is driven through the
master feed clutch (electromagnetic clutch), and controls the amount of master conveyed to the master clamp
section of the drum unit with the master feed clutch ON / OFF.
The end mark sensor starts to detect when the end mark (black) section printed on the end of the roll master
is conveyed. "CHANGE MASTER" is displayed on the LCD panel. The end mark sensor also detects whether
the master is conveyed properly through the sensor.
Cutter unit
Master feed clutch
Sponge roller 2
Master detection sensor
Master cover switch
Platen roller
Master cat
switch
Thermal head
Master feed stepping motorEnd mark sensor

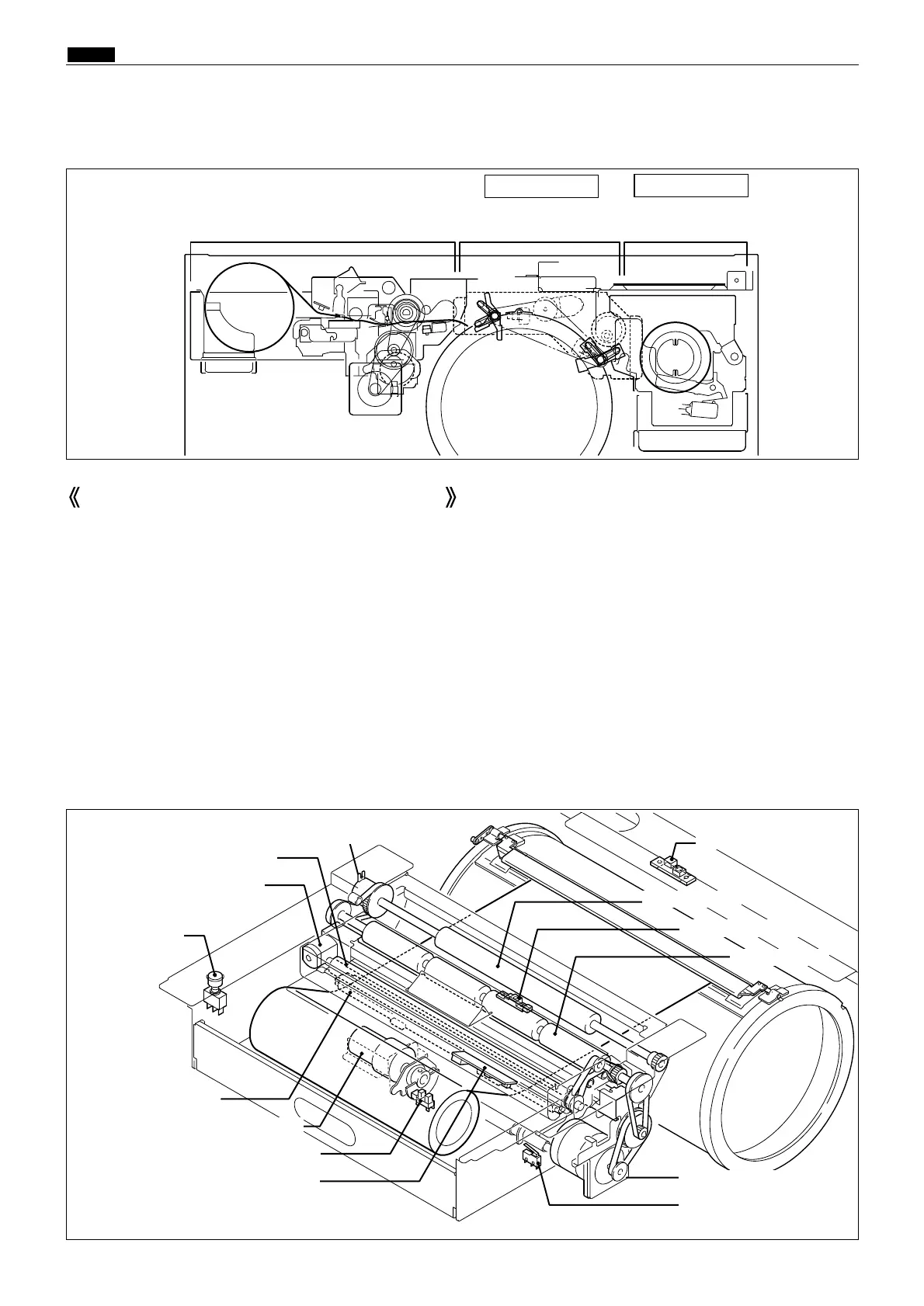

1. Description
Platemaking / Master Feed Section
Platemaking / Master Feed section
Master Clump Opening /
Closing Section
Master Ejection Section
See page 54
See page 56
440315
440314
Thermal head up/down motor
Thermal head position sensor
Sponge roller 1
Master lead edge sensor
