Duplo DUPRINTER DP-440 - Master Ejection Section; Attaching the Spring

B
A
C
B
E
D
C
F
E
D
151
x Platemaking / Master Feed / Ejection Section
chap.4
F
E
D
C
B
A

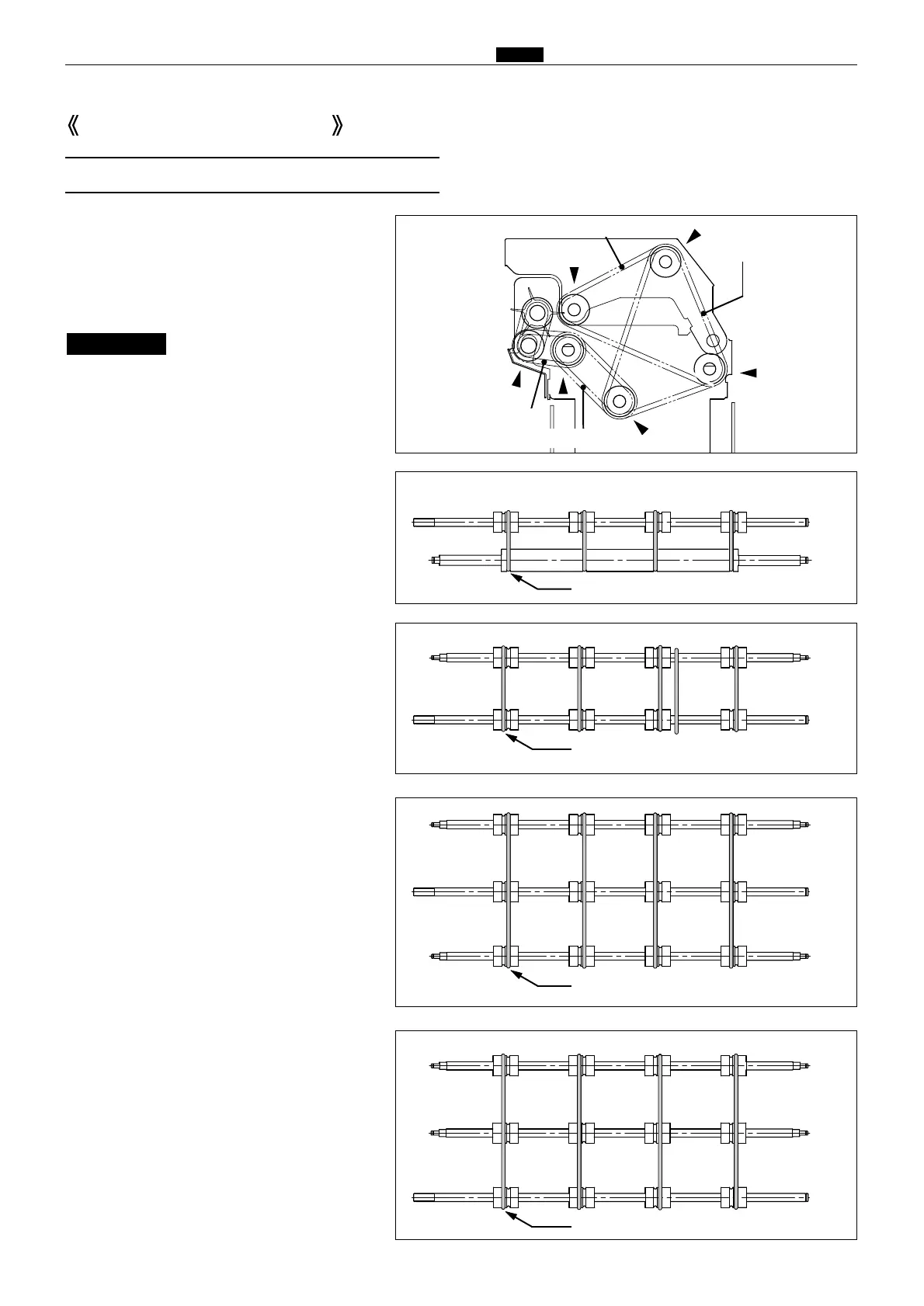

(1) Attaching the Spring
Set the hook on the spring
and crush it to prevent
removing.
IMPORTANT :
1) Attaching the spring between A and B.
2) Attaching the spring between B and C.
3) Attaching the spring between C, D and E.
4) Attaching the spring between D, E and F.
Master Ejection Section
A : Rubber roller
B : Driving roller
C : Inverted roller
D : Driving roller
E : Inverted roller
F : Inverted roller
qSpring T (3) L90mm
rSpring T (B)(3) L220mm
wSpring T (3) L104.9mm
wSpring T (3) L104.9mm
e Spring T (B)(3) L220mm
eSpring T (B)(3) L220mm
rSpring T (B)(3) L220mm
qSpring T (3) L90mm
440102
440114
