167
n Paper Ejection Section
chap.4
WARNING
¡Do not touch the drum or rolls when
operating the JOG switch.
¡Do not put your hands or fingers inside the
machine during operation. They could be
caught up or crushed in the machinery,
resulting in injury.
Cancel lever
Lever
Main motor shaft
Paper stripper finger
Drum
surface
About
0.5mm
(1)

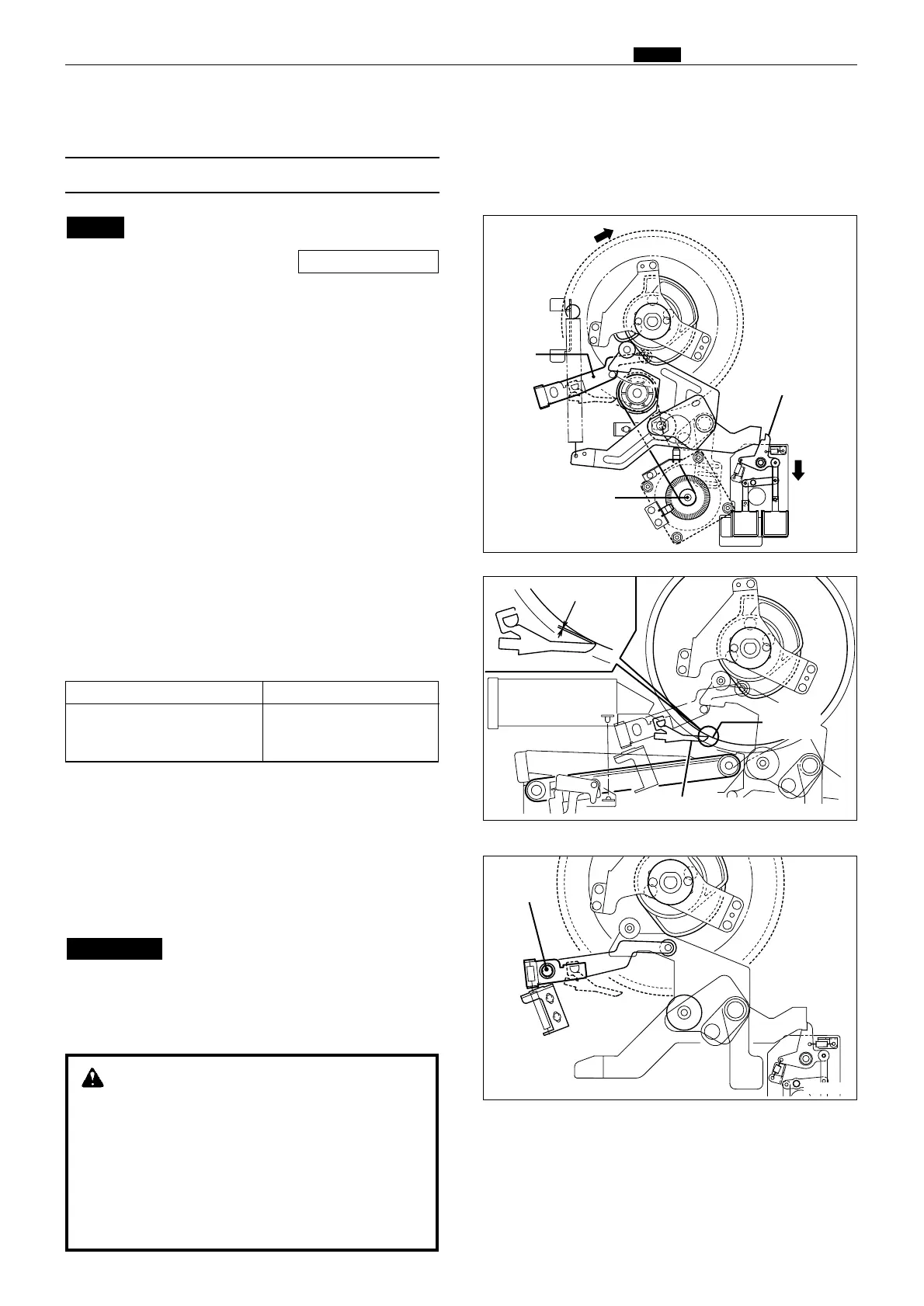

Adjusting the Paper Stripper Finger Clearance
nPaper Ejection Section
¡For description of operation.
Adjustment procedure
1) With the cancel lever raised up, turn the main
motor shaft. Stop turning when the lever's roller
is positioned at the bottom of the paper stripper
finger cam.
NOTE :
Standard value
¡Check that the clearance between the drum
surface and the paper stripper finger conforms
to the value shown below.
If the clearance is not the standard value:
1) Loosen the screw indicated and use the stopper
to adjust the clearance to the standard value.
Then retighten the screws.
After adjustment:
¡After adjustment, press the JOG switch (DRUM
ROTATION switch) to return the drum to its
home position.
IMPORTANT :
Standard valueItem
Clearance between drum sur-
face and tip of paper stripper
finger
about 0.5mm
\See page 87
440134
440325
440135
Screw
To Next Page
