34
z Scanner Section
chap.2
When the document cover is opened at a certain angle, the document cover position
sensor changes to be in the state of photopassing.
The lamps lights up.
When the document cover is closed at a certain angle, the document cover position sensor
changes to be in the state of photointerrupting.
d
1. Reading the Document Size
2
The document sensors sense the document's length in
the pel path and line progression directions.
2When the ADF is installed, the document size
(pel path direction) sense for ADF side.
2. Reading the Document Darkness
2
The optical system goes forward to read the document
darkness immediately after the document size is
read.
2

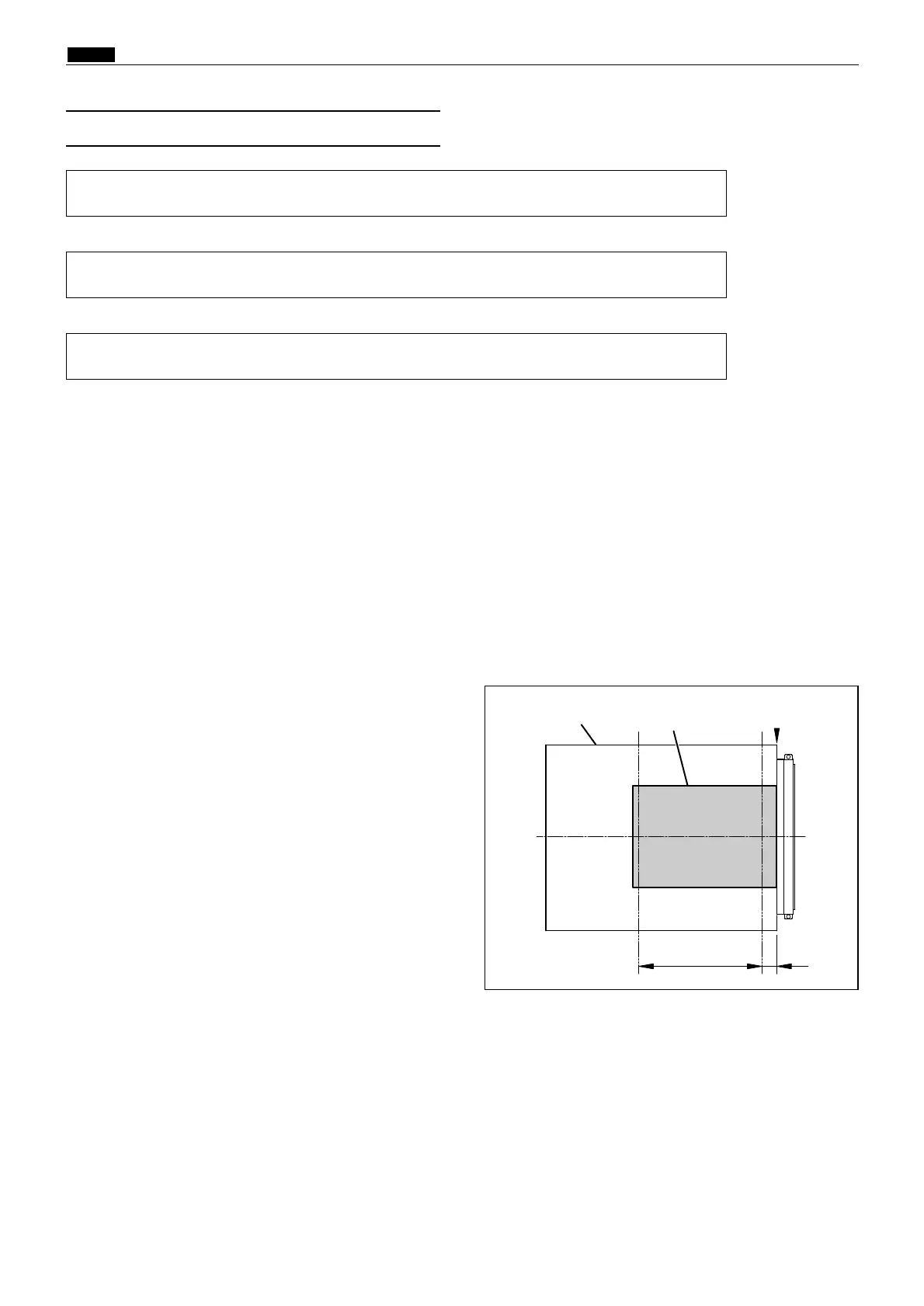

The area over which darkness is sensed is determined
according to the document size sensed.
Vertical size plate
tip end
Approx. 30mm
Plate glass
Document
Darkness sensing area
d
(3)
Operation with the Document Cover Open / Closed
440348
