JOB Entry
22
Pattern 1 in the X direction (crosswise)
X1

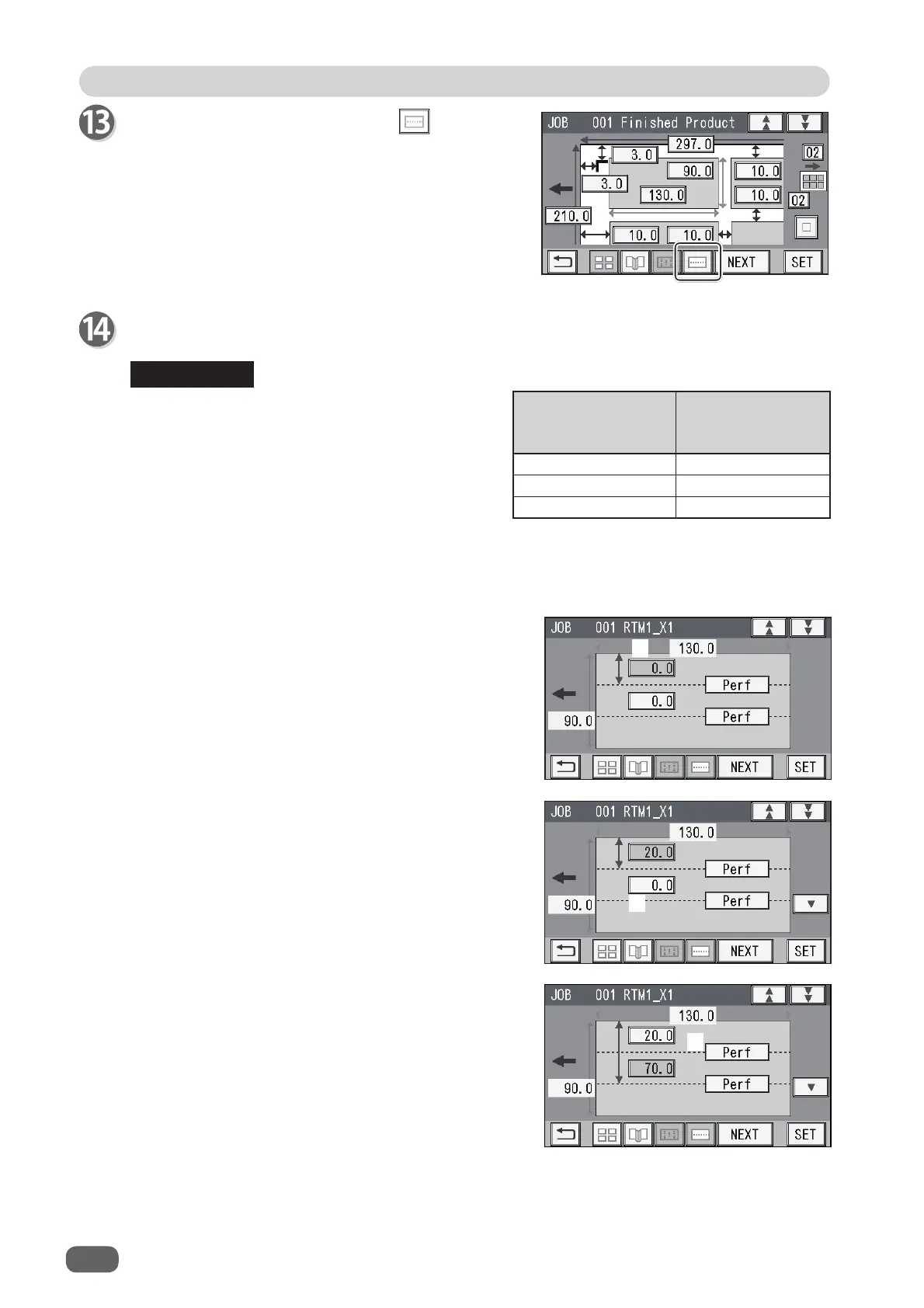

On the screen in step 12, touch the
RTM
icon
to set processing positions of the
RTM (Rotary Tool
Module)
.
You can set up to two sets of two patters in the
X direction on one document.
In
Wizard
, the number of sets that can be set
varies depending on the number of cards in the
X direction.
Even if two
RTM (Rotary Tool Module)s
are
installed, a total of processing positions
for one
RTM (Rotary Tool Module)
is as shown in the
table on the right.
The number of
cards crosswise (X
direction)
Processing
positions of rotary
tool
1 2 sets of X1 and X2
2 1 sets of X1 and X2
3 or more Cannot be entered
2. Enter the distance between the right edge of the
fi nished product and the processing position in
the X direction (
2
:
X1-L
) with the NUMERIC keys.
Touch
SET
.
● When setting one
RTM (rotary Tool Module)
and
one card in the X direction
1. Enter the distance between the right edge of the
fi nished product and the processing position (
1
)
in the X direction with the NUMERIC keys. Touch
SET
.
3. Touch
3
and select a type of
rotary tool
that is
used for
X1-R
(
1
).
Every time
3
is touched,
Perf
,
Micro
, or
Score
is
displayed.
3
REFERENCE
1
2
