JOB Entry
38

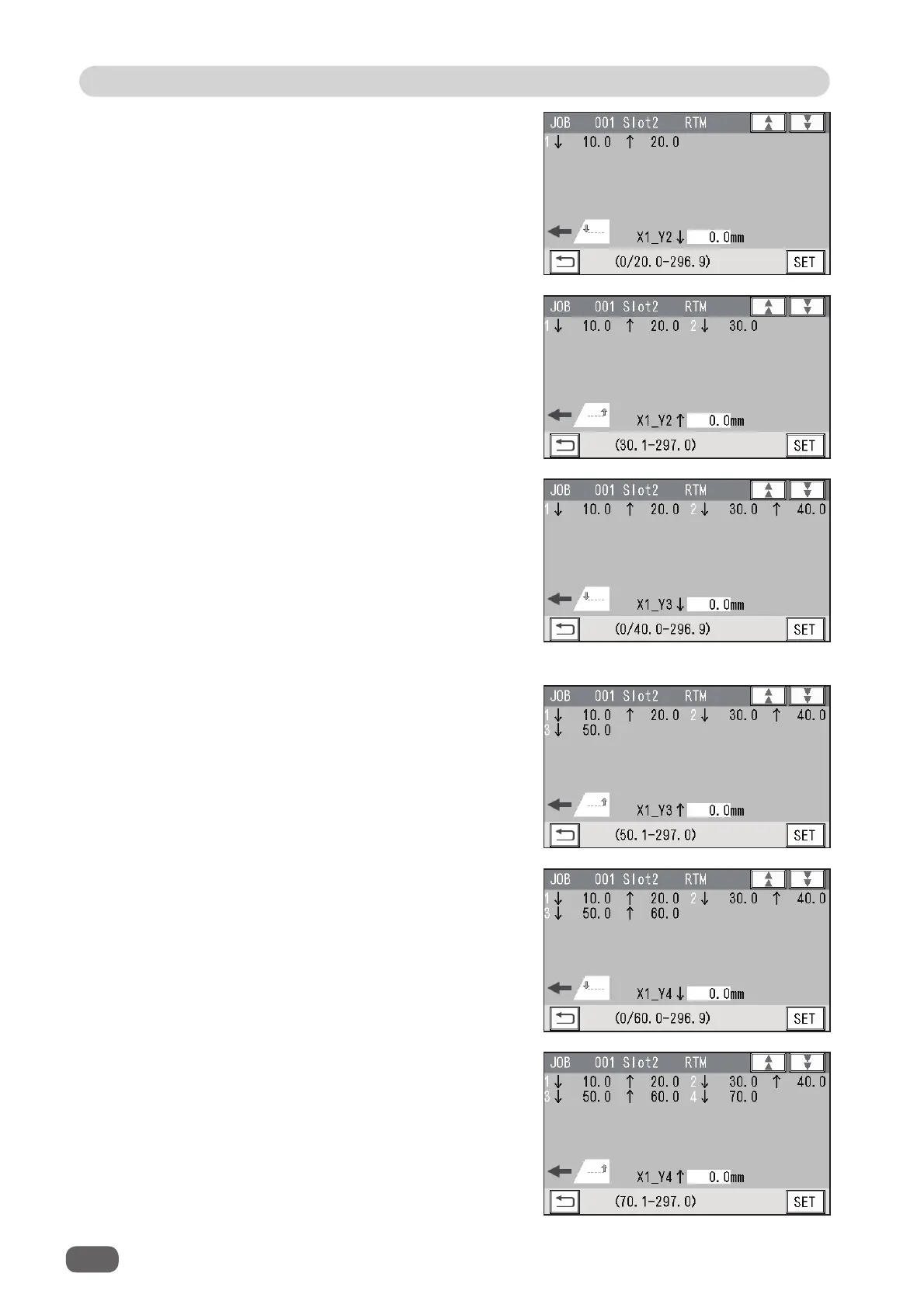

4.
X1_Y2 ↑
Enter the distance between the lead edge of the
document and the
Off
position (the processing
stop position of the rotary tool) of
Y2
(
Set 2
in the Y
direction) with the NUMERIC keys. Touch
SET
.
6.
X1_Y3 ↑
Enter the distance between the lead edge of the
document and the
Off
position (the processing
stop position of the rotary tool) of
Y3
(
Set 3
in the Y
direction) with the NUMERIC keys. Touch
SET
.
7.
X1_Y4 ↓
Enter the distance between the lead edge of the
document and the
On
position (the processing start
position of the rotary tool) of
Y4
(
Set 4
in the Y
direction) with the NUMERIC keys. Touch
SET
.
8.
X1_Y4 ↑
Enter the distance between the lead edge of the
document and the
Off
position (the processing
stop position of the rotary tool) of
Y4
(
Set 4
in the Y
direction) with the NUMERIC keys. Touch
SET
.
5.
X1_Y3 ↓
Enter the distance between the lead edge of the
document and the
On
position (the processing start
position of the rotary tool) of
Y3
(
Set 3
in the Y
direction) with the NUMERIC keys. Touch
SET
.
3.
X1_Y2 ↓
Enter the distance between the lead edge of the
document and the
On
position (the processing start
position of the rotary tool) of
Y2
(
Set 2
in the Y
direction) with the NUMERIC keys. Touch
SET
.
