JOB Entry
44
6.
X1_Y3 ↑

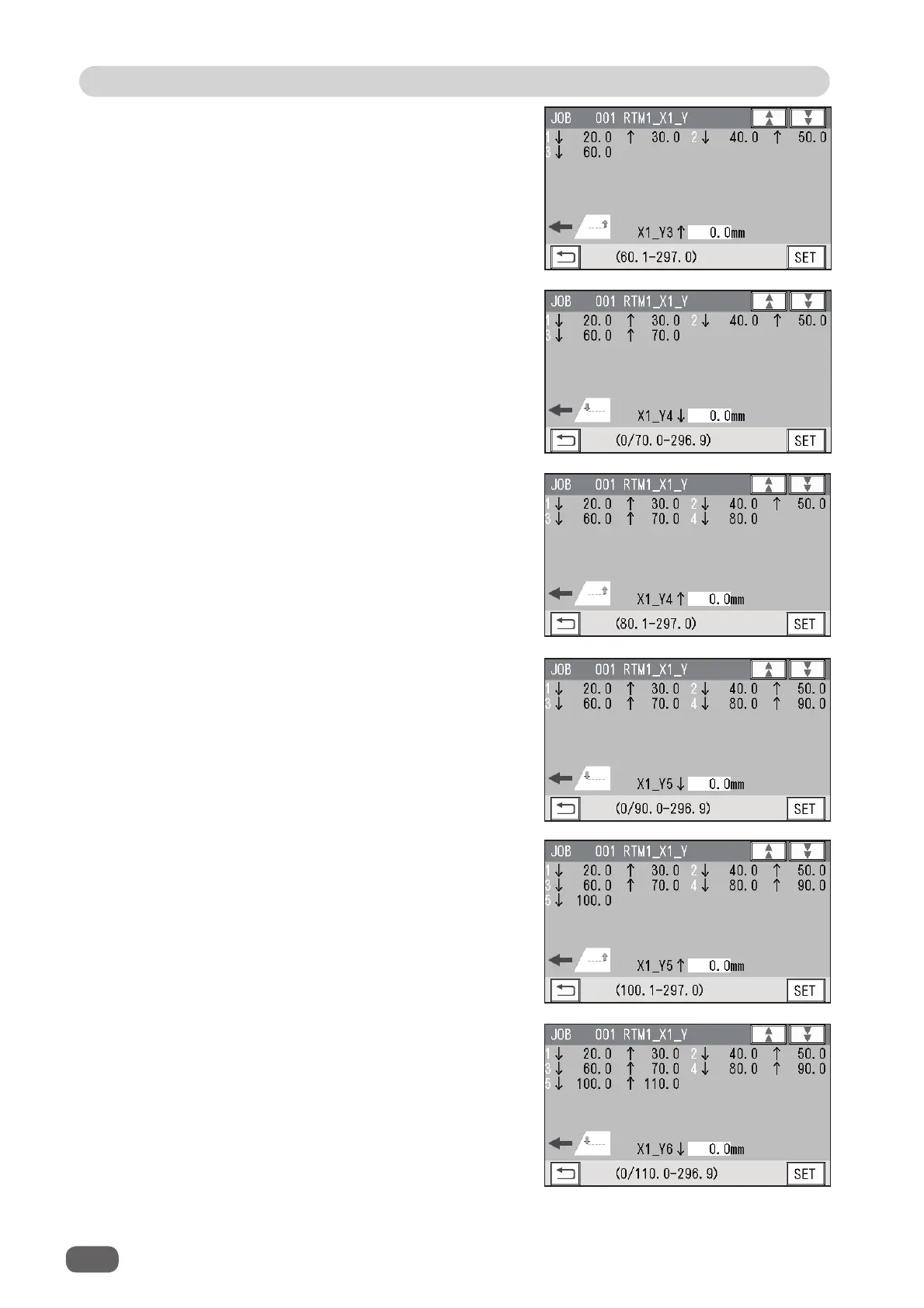

Enter the distance between the lead edge of the
document and the
Off
position (the processing
stop position of the rotary tool) of
Y3
(
Set 3
in the Y
direction) with the NUMERIC keys. Touch
SET
.
7.
X1_Y4 ↓
Enter the distance between the lead edge of the
document and the
On
position (the processing start
position of the rotary tool) of
Y4
(
Set 4
in the Y
direction) with the NUMERIC keys. Touch
SET
.
8.
X1_Y4 ↑
Enter the distance between the lead edge of the
document and the
Off
position (the processing
stop position of the rotary tool) of
Y4
(
Set 4
in the Y
direction) with the NUMERIC keys. Touch
SET
.
9.
X1_Y5 ↓
Enter the distance between the lead edge of the
document and the
On
position (the processing start
position of the rotary tool) of
Y5
(
Set 5
in the Y
direction) with the NUMERIC keys. Touch
SET
.
10.
X1_Y5 ↑
Enter the distance between the lead edge of the
document and the
Off
position (the processing
stop position of the rotary tool) of
Y5
(
Set 5
in the Y
direction) with the NUMERIC keys. Touch
SET
.
11.
X1_Y6 ↓
Enter the distance between the lead edge of the
document and the
On
position (the processing start
position of the rotary tool) of
Y6
(
Set 6
in the Y
direction) with the NUMERIC keys. Touch
SET
.
