60
PC Controller Setting
You can set two patterns ([X1-R, X1-L] and [X2R, X2-L]) in the X direction from the right
edge of a document.
Distance A (between Patter 1s) must be 48.0 mm or more.
You cannot set each position of Y1–Y6 of X1-R, X1-L and of X2-R, X2-L at the same
positions.

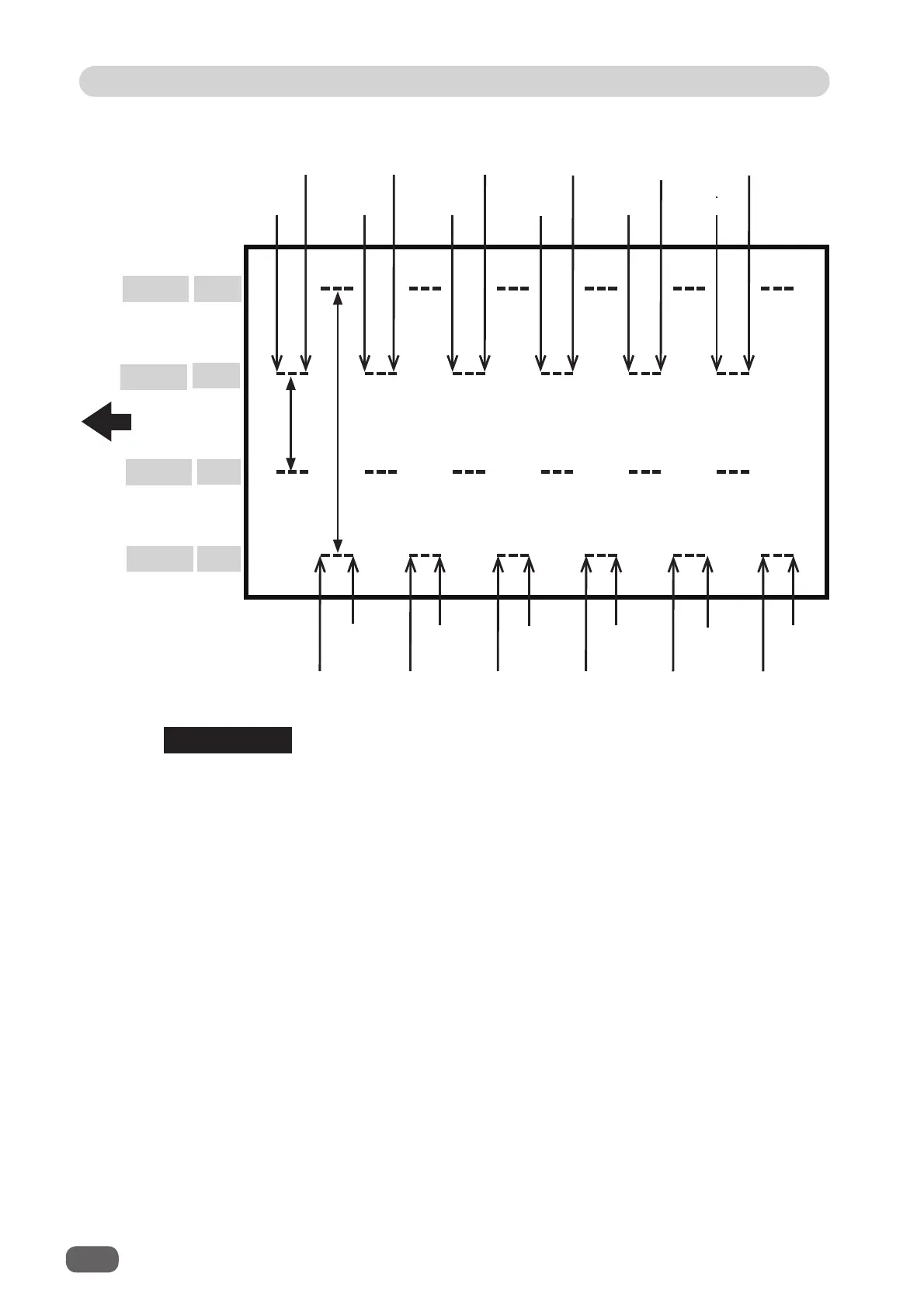

● Settings for processing with the
RTM (Rotary Tool Module)
Pattern 2
X2-R
Pattern 1
X1-R
Pattern 1
X1-L
Pattern 2
X2-L
REFERENCE
A
A
Y1 On Y2 On Y3 On
Y4 On
Y5 On Y6 On
Y1 Off Y2 Off Y3 Off
Y4 Off
Y5 Off
Y6 Off
Document
feed
direction
Y1 On
Y1 Off
Y2 On
Y2 Off
Y3 On
Y3 Off
Y4 On
Y4 Off
Y5 On
Y5 Off
Y6 On
Y6 Off
