Programming a JOB on a Computer

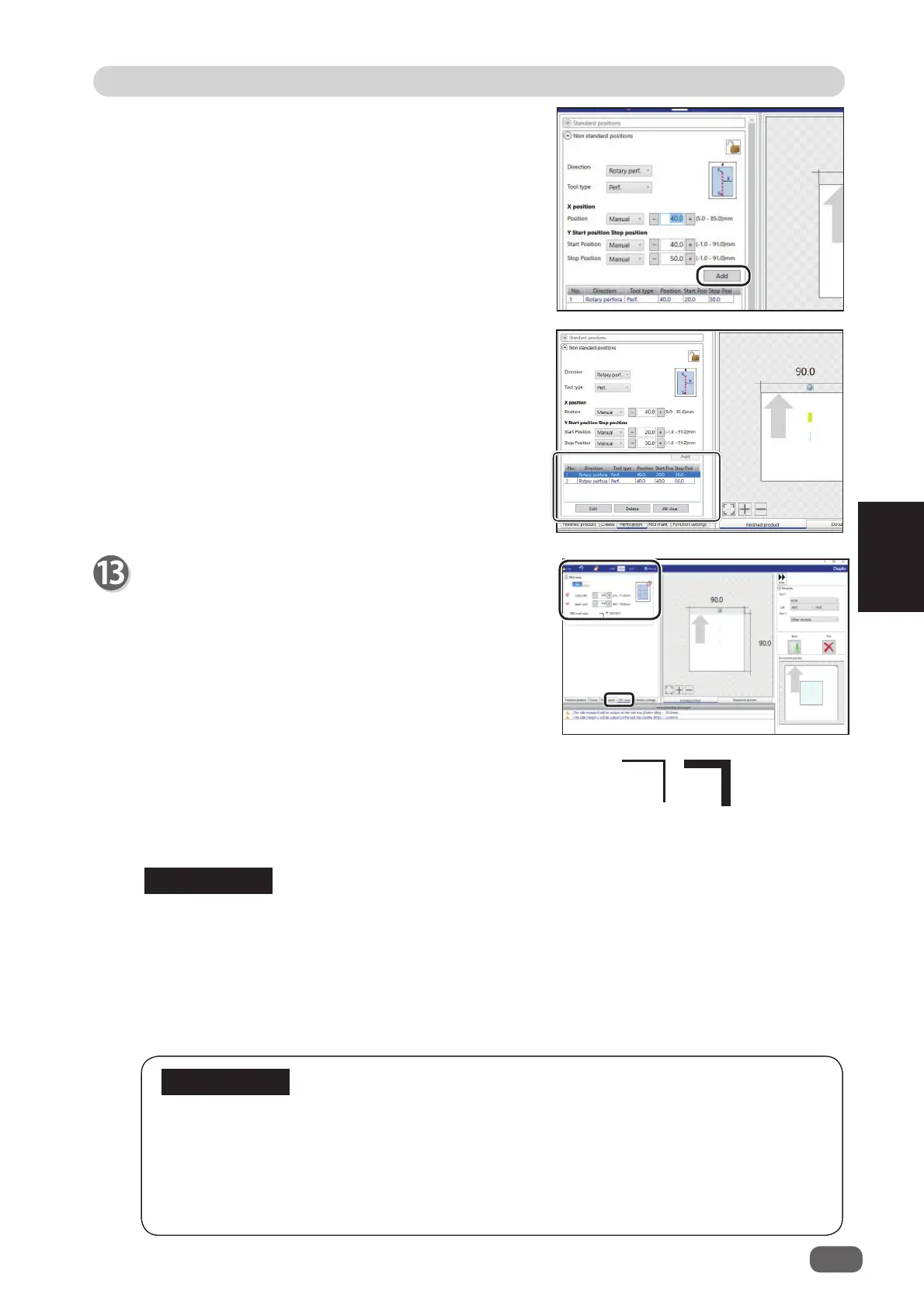

9. The added start position and the stop position
are displayed on the list below. Check the
contents.
Edit
: Enables you to change a selected
position on the list.
Delete
: Deletes a selected position on the list.
All clear
: Deletes all of the processing
positions of the
rotary tool
on the
list.
8. In similar ways to steps 5 and 7, enter values
for the start position and the stop position
(lengthwise) of the
rotary tool
. Then click
Add
.
REG mark
This senses a REG mark and then reads the image
drift and compensates it.
Click the
REG mark
tab.
When using this function, select
On
for the
REG mark
box.
Side mark
: Enter the distance from the right edge of
the document to the side mark in the
Side
mark
box.
Lead mark
: Enter the distance from the lead edge
of the document to the lead mark in the
Lead mark
box.
REG mark spec
: Select a REG mark type (
Standard
/
Bold mark width
).
Normally select
Standard
.
Standard
Bold mark width
Standard
: Select this when processing normal documents with a REG mark of standard
thickness printed on them.
Bold mark width
: Select this when processing specially treated documents (glossy
documents). Print a bold REG mark on them in advance and then select
Bold mark width
.
• If it fails to read a REG mark, select
Bold mark width
.
• Select
Off
if you do not use the REG mark reading function.
If there are scratches or stains in the printing range of the REG mark, the position may
not be corrected.
Also if the read side of a document is rough and glossy, the CCD may not be able to
read a REG mark and/or a barcode. (The document may diff usely refl ect light.)
When using specially treated documents (glossy document), print a bold REG mark on
them in advance. Then, select
Bold mark width
for
REG mark spec
.
REFERENCE
IMPORTANT
