2. Loading the Printer
DuraLabel Ribbon and Vinyl Supplies have been optimized for compatibility and print
quality. Only authorized DuraLabel Supplies from Graphic Products will print correctly in
the DuraLabel PRO/PRO 300 printer.
An instructional video demonstrating how to load DuraLabel Ribbon and Supplies can be
viewed at DuraLabel.com/duralabel-videos.
2.1 Printer Parts
A
B
D
F
G
H
I
C
E

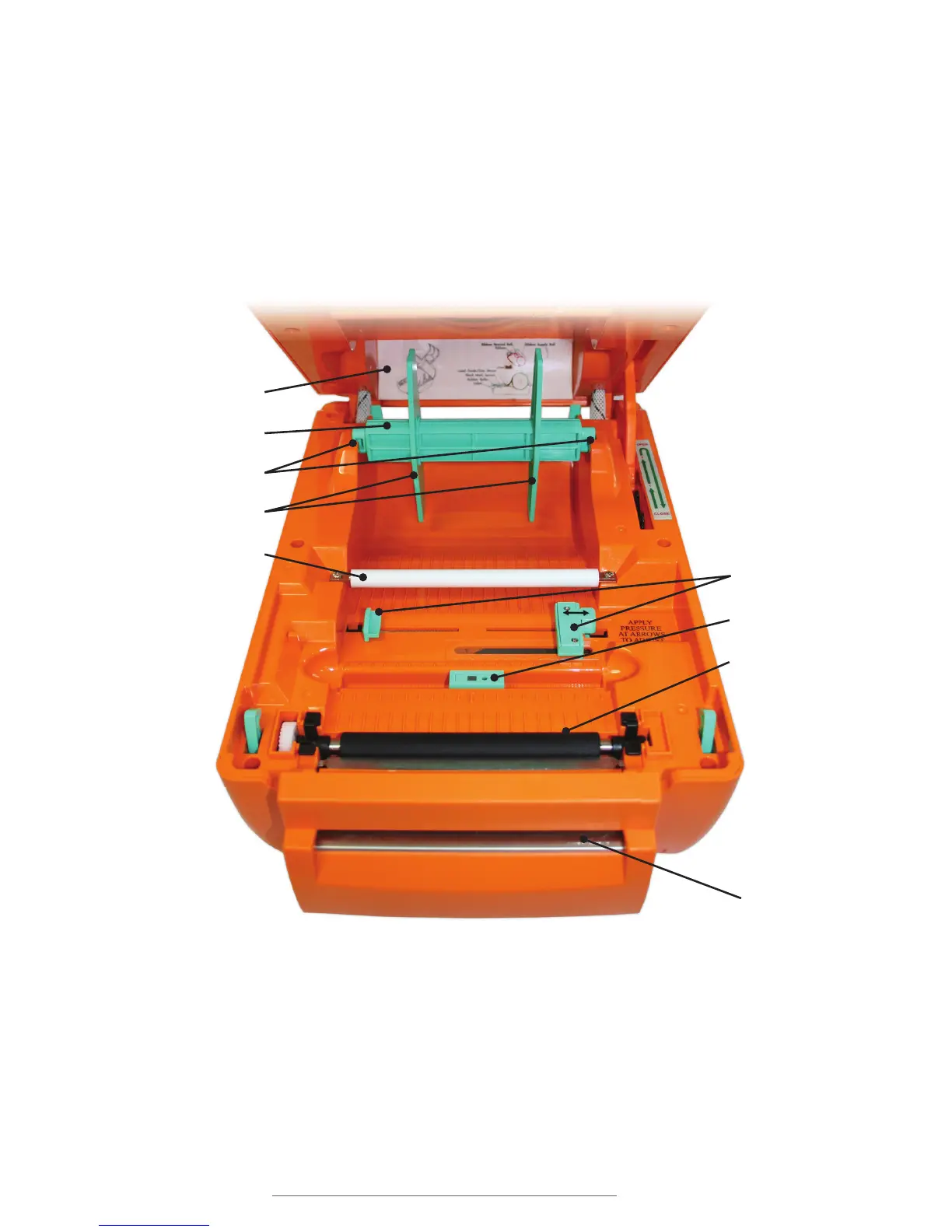

Figure 1 Inside of printer, with ribbon mechanism open in upright position
A. Supply loading diagram
B. Label supply roll
C. Label roll mounts
D. Fixing tabs
E. Teflon bar (white)
F. Adjustable label guides (turquoise)
G. Media sensor/B Mark sensor
(turquoise)
H. Platen roller (black)
I. Printed label opening
