14 | 2.5 Installing Tape Guides
DuraLabel.com | 800.788.5572
LOADING THE PRINTER
2.5 Installing Tape Guides
Tape guides are required for ½" label supply and shrink tube sizes ½" and smaller.
Larger vinyl and shrink tube supply are held in place by the adjustable label guides.
A. Load shrink tube or ½" label supply and thread it through the cutter.
B. Find the tape guide to match the size of label or shrink tube supply loaded in your
printer.
Left Adjustable Label Guide
Right Adjustable
Label Guide

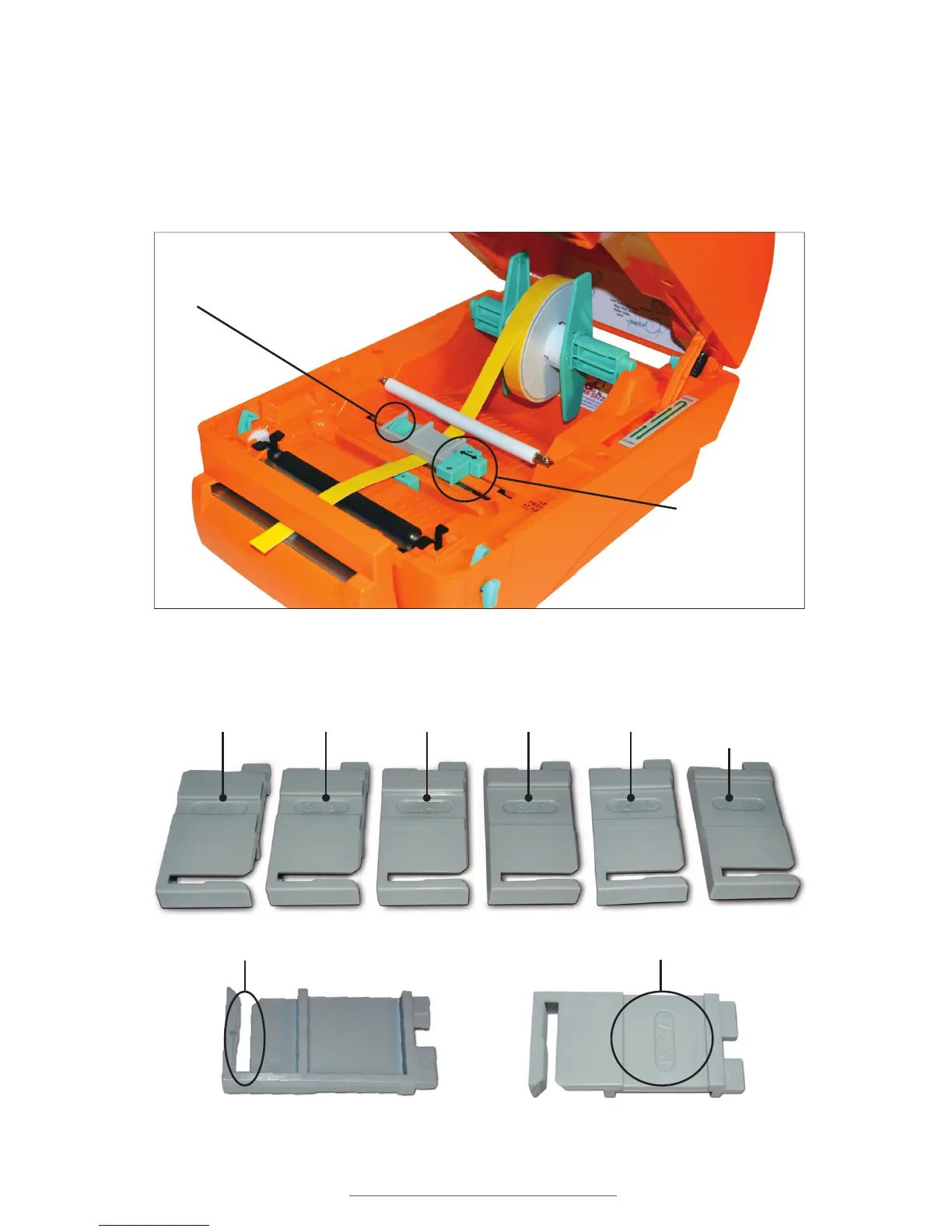

Figure 1 Loaded shrink tube supply
1/2"1/8" 3/16" 1/4" 3/8"
Figure 2
1/2"
Shrink Tube
Figure 3 Tape guide, with cutout opening facing
up, toward supply spindle
Figure 4 Tape guide showing grooved section
(Tape guide is shown upside down.)
Cutout Opening Grooved Section
