Operation
Operating manual 281 Version 06.0 - 05/201322

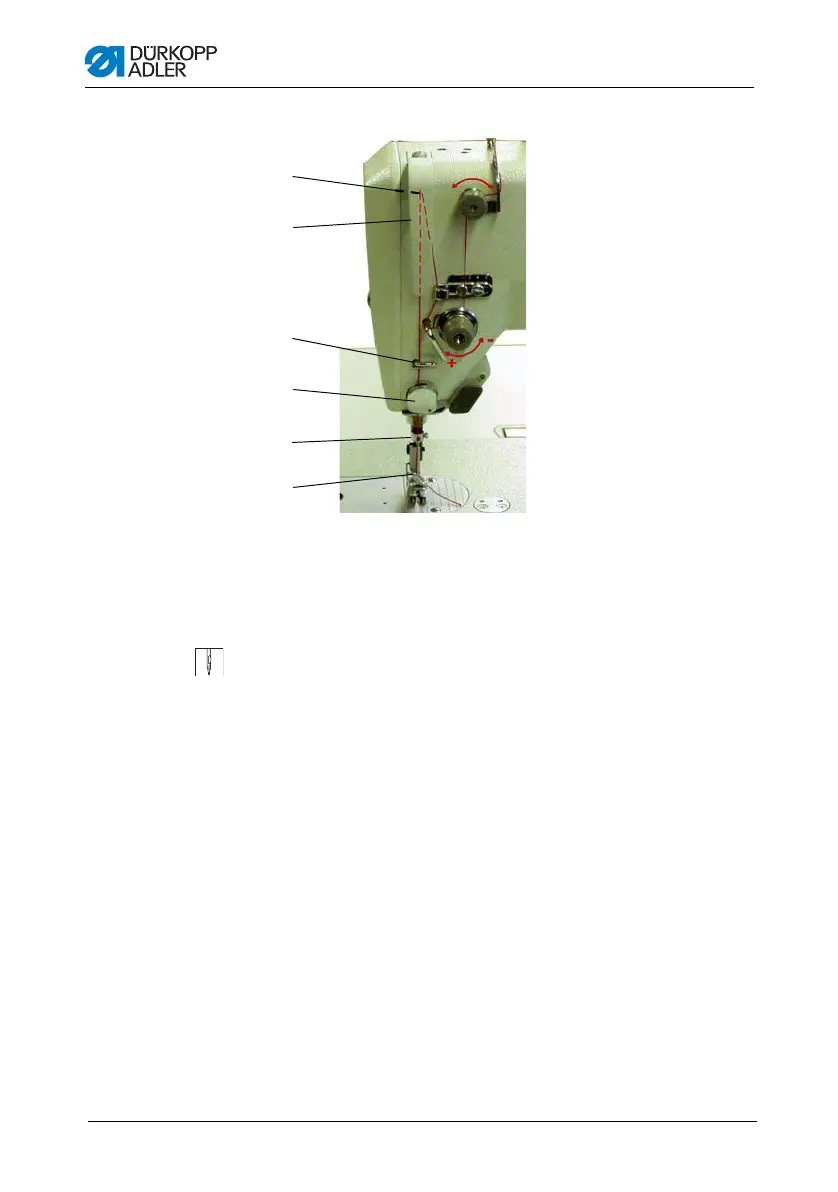

Figure 6: Threading procedure for needle thread - part 2
11. Insert the thread from the right to the left through the thread
lever (9) behind the thread lever protection (10).
12. Insert the thread through the thread guide (11).
13. Insert the thread through the thread clamp (12).
14. Insert the thread through the thread guide on the needle
bar (13).
15. Insert the thread from the left to the right through the needle
eye (14).
(9) - Thread lever
(10) - Thread lever protection
(11) - Thread guide
(12) - Thread clamp
(13) - Thread guide on the needle
bar
(14) - Needle eye
⑨
⑩
⑪
⑫
⑬
⑭
