Set-up
Operating manual 281 Version 06.0 - 05/2013 55
7.5 Fastening the table plate to the frame

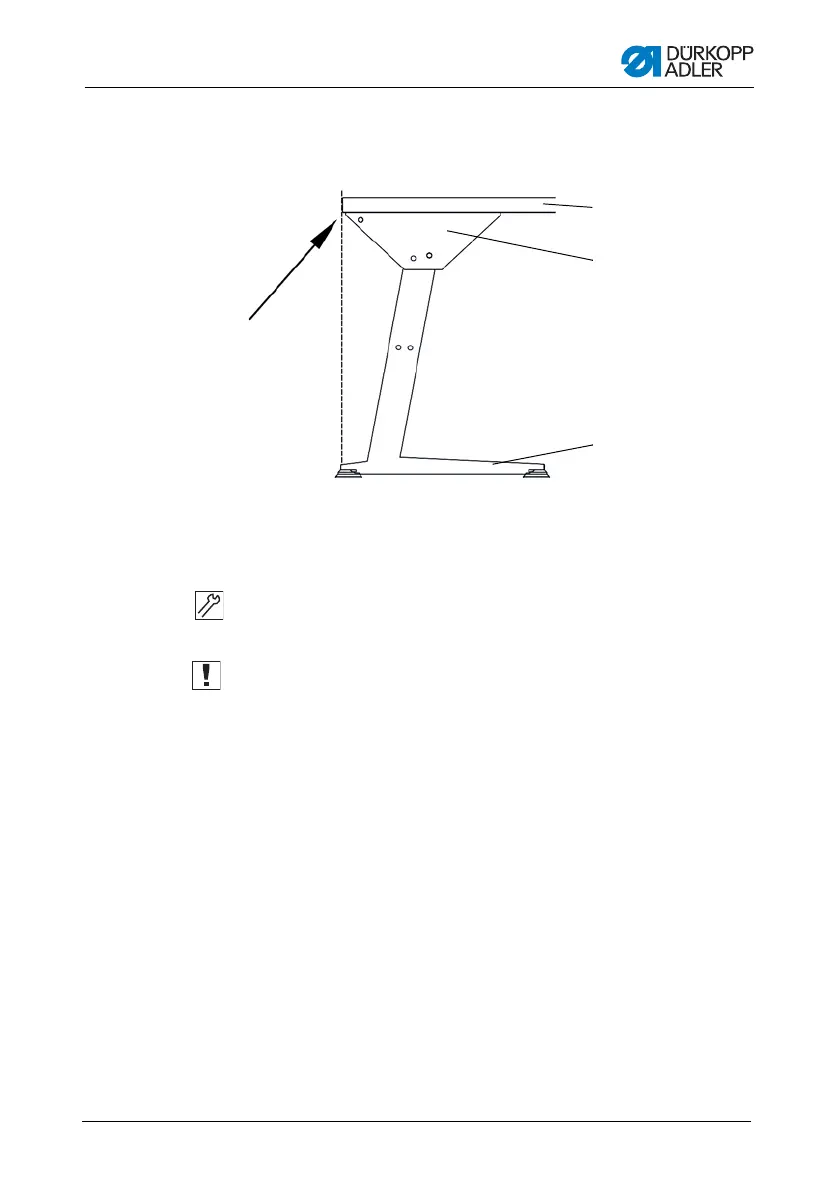

Figure 32: Fastening the table plate to the frame
1. Place the table plate (1) onto the head sections (2).
2. Tighten the table plate (1) on both sides using wood
screws (B8 x 35).
Important: Screw the table plate (1) onto the head
sections (2) such that the table plate is flush with the
rear edge of the foot struts (3) at the rear. This increases
stability when folding over the upper part of the machine.
①
③
②
(1) - Table plate
(2) - Head sections
(3) - Foot struts
