Set-up
Operating manual 281 Version 06.0 - 05/2013 53
7.3 Fitting the frame components

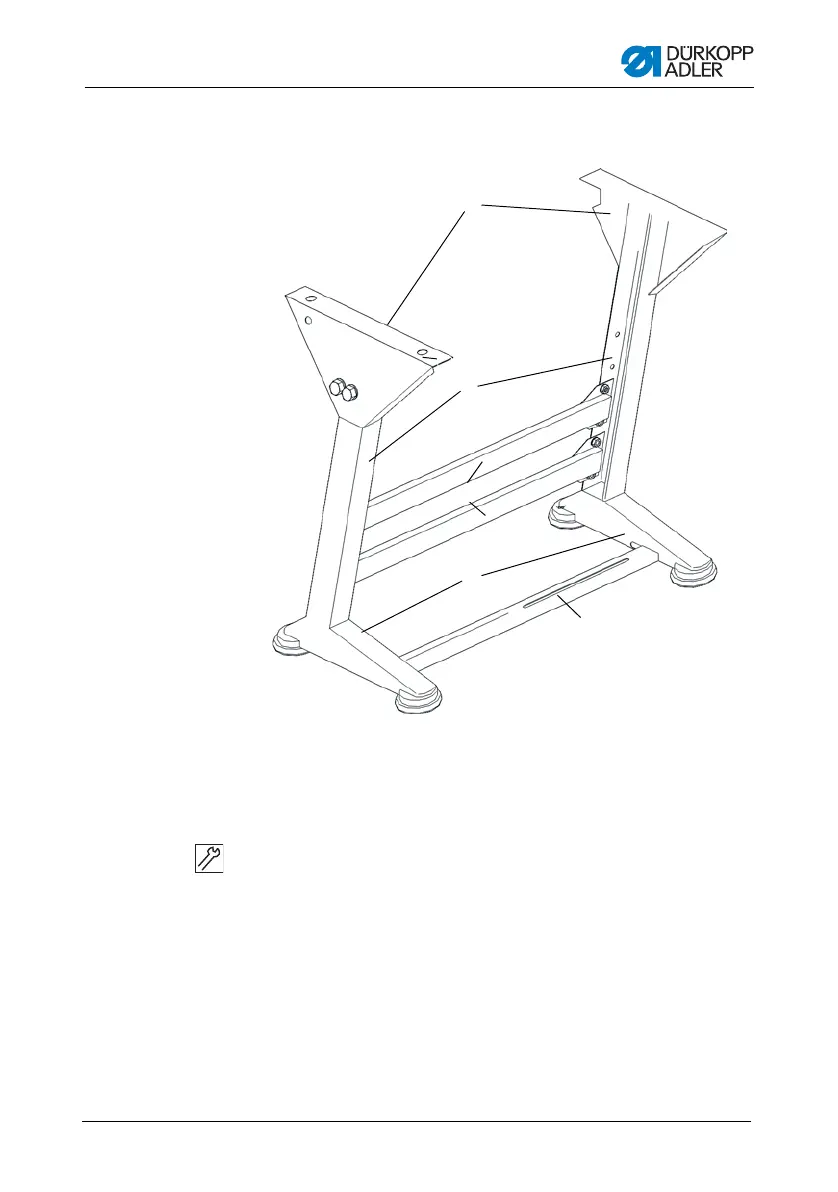

Figure 30: Fitting the frame components
1. Screw the cross bars (3) onto the frame bars (2).
2. Screw the cross strut (5) onto the foot struts (4).
3. Screw the head sections (1) onto the frame bars (2).
(1) - Head sections
(2) - Frame bars
(3) - Cross bars
(4) - Foot struts
(5) - Cross strut
