7.8 Inserting the machine upper section

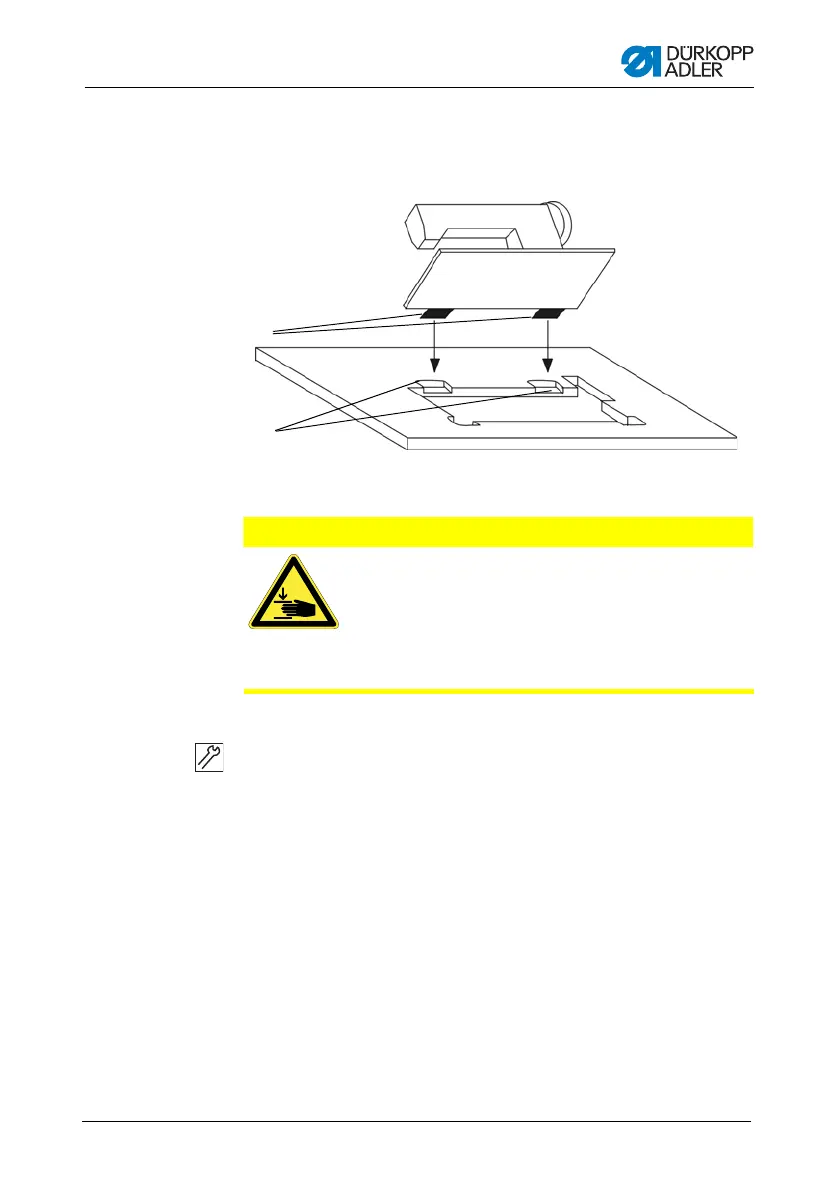

Figure 36: Inserting the machine upper section
1. Screw the upper hinge parts (1) onto the machine upper
section.
2. Fit the machine upper section from above at an angle of 45°.
3. Insert the upper hinge parts (1) into the rubber inlays (2).
4. Fold the machine upper section down and insert it in the recess.
(1) - Upper hinge parts (2) - Rubber inlays
①
②
Risk of crushing.
The machine upper section is heavy.
Take care not to jam your hands when fitting the
machine upper section.
This especially applies when fitting the upper hinge
parts into the rubber inlays.
WARNING
