Operation
Operating manual 281 Version 06.0 - 05/2013 23
5.4 Inserting and winding on the hook thread
1. Fit the thread reel onto the thread stand ( page 20).
2. Insert the thread from the rear to the front through a hole in
the guide on the unwinding bracket.
Important: The unwinding bracket must be parallel to the
thread stand.

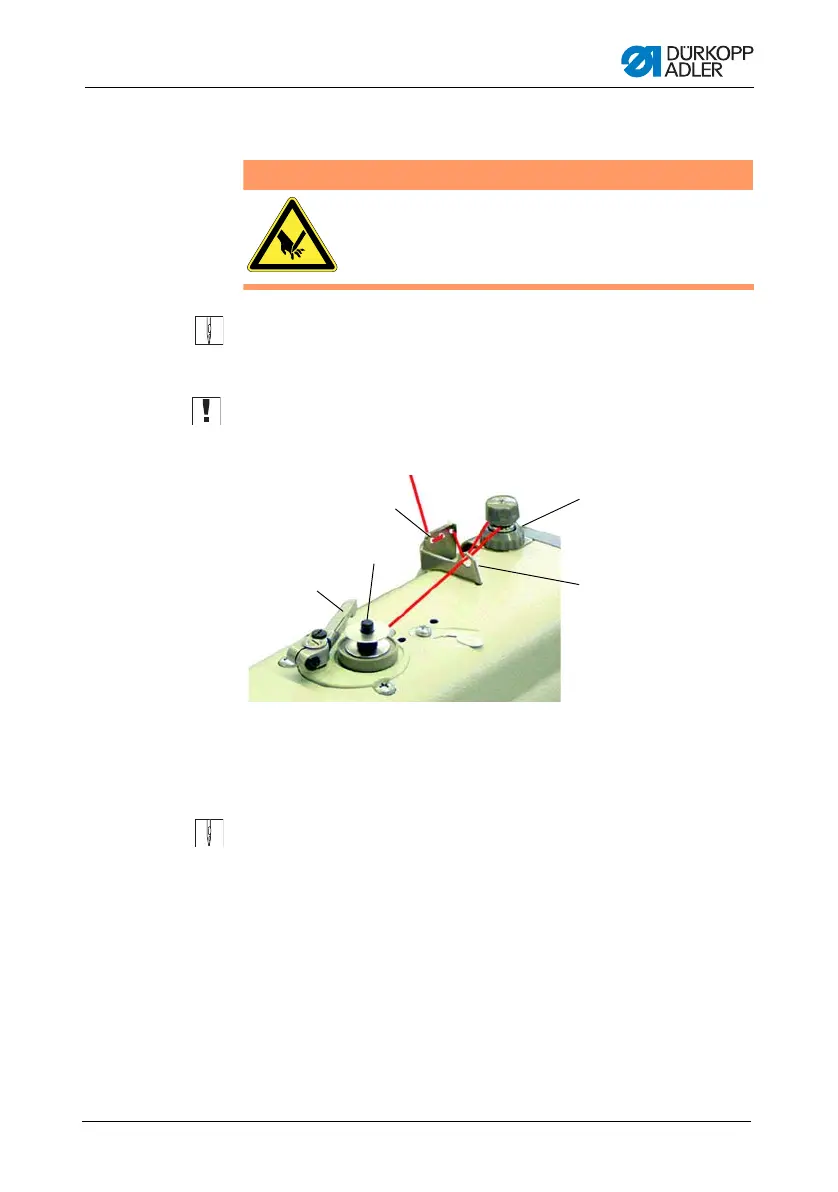

Figure 7: Winding on the hook thread - part 1
3. Fit the empty bobbin onto the bobbin shaft (2).
4. Insert the thread in a wavelike manner through the three holes
on the first thread guide (1): From the rear to the front through
the left hole, from the front to the rear through center hole, and
finally from the rear to the front through the right hole.
5. Insert the thread from the left to the right through the hole on
the second thread guide (4).
6. Guide the thread clockwise around the gap on the adjusting
knob (5).
7. Guide the thread from the right to the left through the hole on
the second thread guide (4) to the bobbin.
Risk of injury from moving parts.
Switch off the sewing machine before inserting the
thread.
WARNING
(1) - First thread guide
(2) - Bobbin shaft
(3) - Bobbin winder flap
(4) - Second thread guide
(5) - Adjusting knob
①
②
③
④
⑤
