Set-up
Operating manual 281 Version 06.0 - 05/201360
7.9 Attaching the upper section retaining strap
The machine upper section is secured with a retaining strap so
that it does not slip out of the brackets when being folded over
backwards.

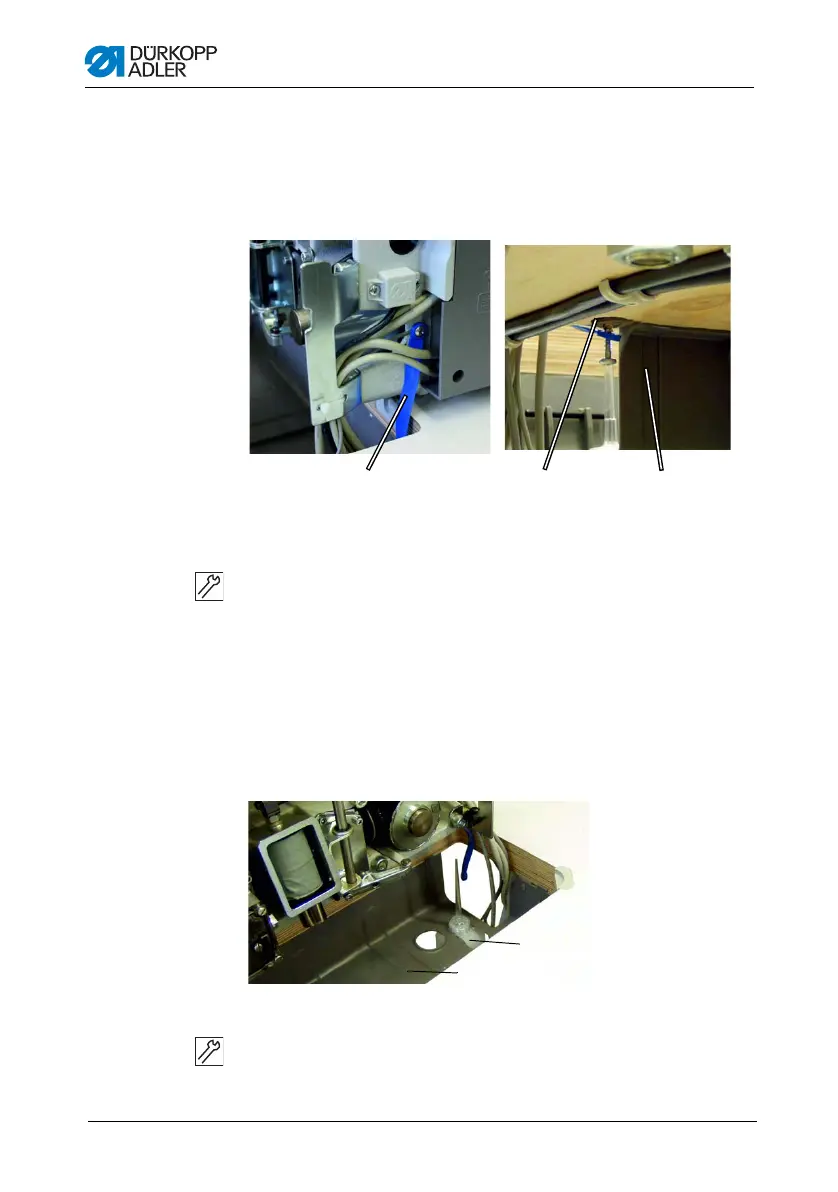

Figure 37: Attaching the upper section retaining strap
1. Tilt the machine upper section backwards.
2. Pull the retaining strap (1) from the machine upper section
through the cut-out and under the table plate.
3. Screw the retaining strap (1) firmly to the flap (2) for the oil
pan (3) using a screw.
7.10Attaching the oil can
Figure 38: Attaching the oil can
1. Tilt the machine upper section backwards.
2. Attach the oil can (2) into the oil pan (1) from below.
(1) - Retaining strap (2) - Flap
(3) - Oil pan
①②
(1) - Oil pan (2) - Oil can
