8. Lubrication
Caution: danger of injury !
Oil can cause skin eruptions.
Avoid protracted contact with the skin.
In the event of contact, thoroughly w ash the affected area.
CAUTION !
The handling and disposal of mineral oils is subject to legal regulation.
Deliver used oil to an authorised collection point.
Protect your environment.
Take care not to spill oil.
To lubricate the special sewing machine use only DA-10 lubricating oil
or an equivalent oil of the following specification:
- Viscosity at 40° C : 10 mm
2
/s
- Flashpoint: 150 °C
DA-10 is available from DÜRKOPP ADLER AG retail outlets under the
following part numbers:
250 ml container: 9047 000011
1-litre container: 9047 000012
2-litre container: 9047 000013
5-litre container: 9047 000014

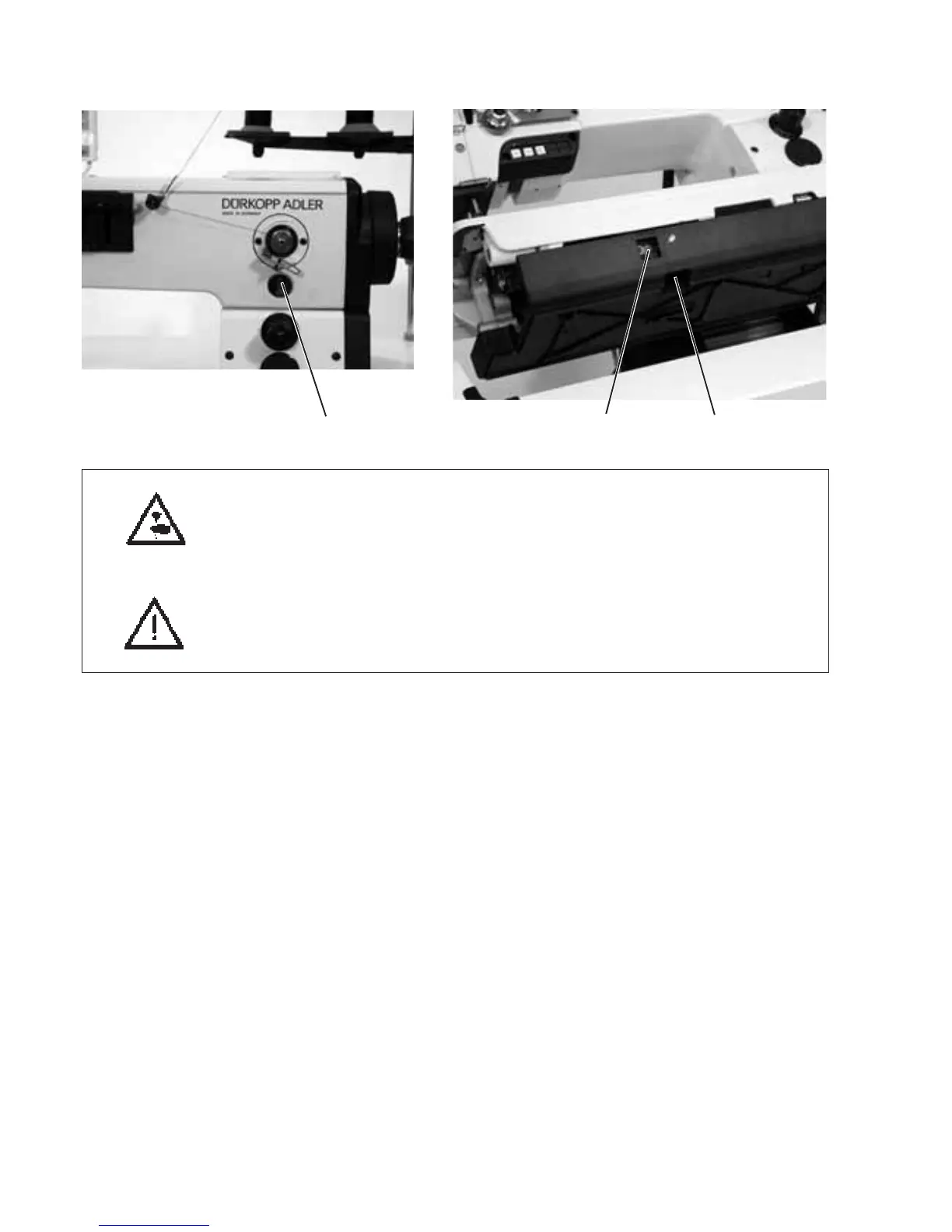

Lubricating the machine head (first f illing)
NB:
All wicks and felts are saturated with oil prior to delivery. This oil is
returned to the oil reservoir 1, which should therefore not be overfilled.
–
Top up the oil reservoir 1 to the “max.”mark.
Lubricating the shuttle
–
Fold back the machine head.
–
To p up the other oil reservoir to the “max.” mark through the nipple 2.
Check the oil level through the viewing window 3.
