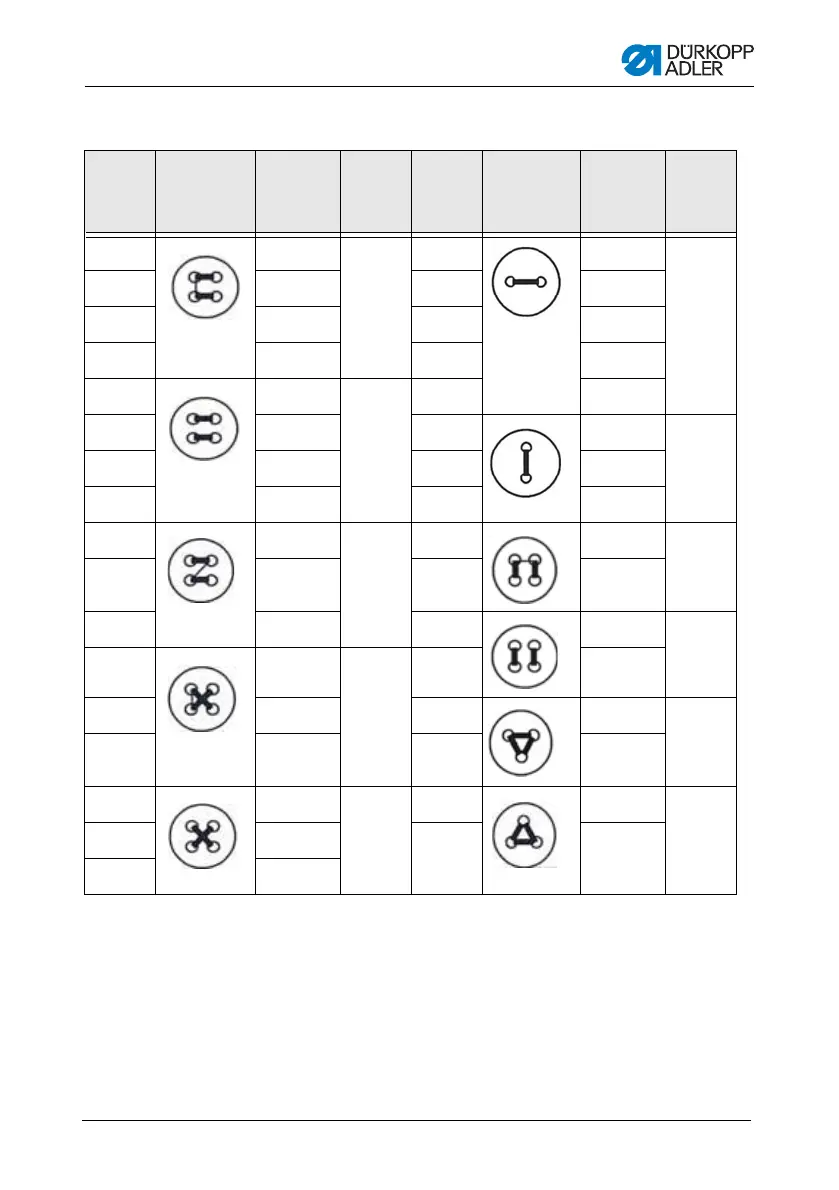

7.2 Standard seam images for class 532
No.
Stitch
pattern
Stitch dis-
tribution
Size
(mm)
X x Y
No.
Stitch
pattern
Stitch dis-
tribution
Size
(mm)
X x Y
1 / 34 6 - 6 3.4 x 3.4 18 / 44 6 3.4 x 0
2 / 35 8 - 8 19 / 45 8
3 10 - 10 20 10
4 12 - 12 21 12
5 / 36 6 - 6 3.4 x 3.4 22 16
6 / 37 8 - 8 23 / 46 6 0 x 3.4
7 10 - 10 24 10
8 12 - 12 25 12
9 / 38 6 - 6 3.4 x 3.4 26 / 47 6 - 6 3.4 x 3.4
10 / 39 8 - 8 27 10 - 10
11 10 - 10 28 / 48 6 - 6 3.4 x 3.4
12 / 40 6 - 6 3.4 x 3.4 29 10 - 10
13 / 41 8 - 8 30 / 49 5 - 5 - 5 3 x 2.5
14 10 - 10 31 8 - 8 - 8
15 / 42 6 - 6 3.4 x 3.4 32 / 50 5 - 5 - 5 3 x 2.5
16 / 43 8 - 8 33 8 - 8 - 8
17 10 - 10
