Setup
Operating Manual 512/532 Version 00.0 - 12/2013 73
Assemble the individual parts of the frame:
1. Turn the adjusting screw (1) to ensure that the frame stands
securely. The frame must stand with all 4 feet on the floor.
2. Screw the pedal (2) to the frame brace (3).
3. Slide the pedal (2) so that it sits in the middle of the frame
brace (3). The frame brace (3) has elongated holes to allow
alignment.
8.3.3 Completing the table plate

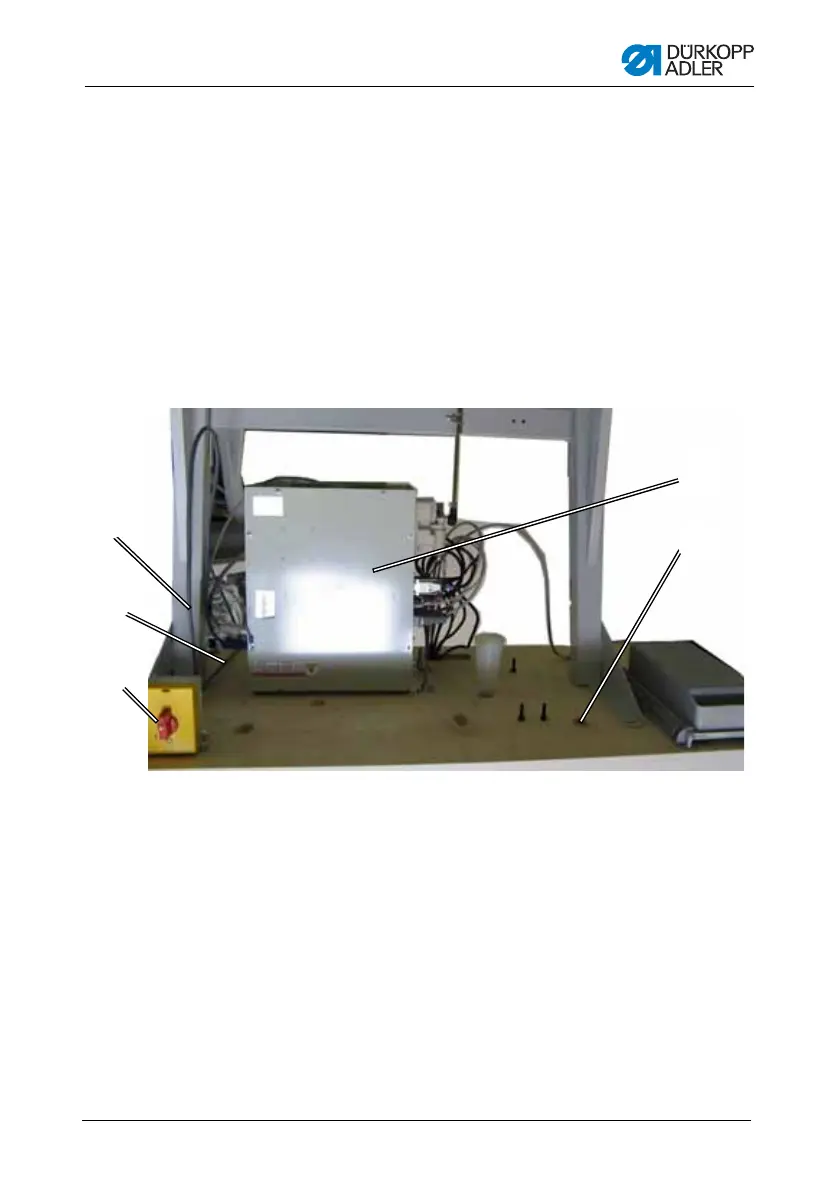

Figure 20: Completing the table plate I
1. Place the table plate (4) inverted on a working surface.
2. Screw the main power switch (3) to the left of the underside
of the table plate.
3. Fasten the cables (1) and (2) to the control cabinet (5) on the
table plate, using cable fastening nails and strain-relief clamps.
⑤
④
(1) – Connection cable
(2) – Connection cable
(3) – Main switch
(4) – Table plate
(5) – Control cabinet
①
③
②
