DURKOPP ADLER 512 - Fitting the Oil Collection Reservoir

Setup
Operating Manual 512/532 Version 00.0 - 12/2013 77
8.3.7 Fitting the oil collection reservoir

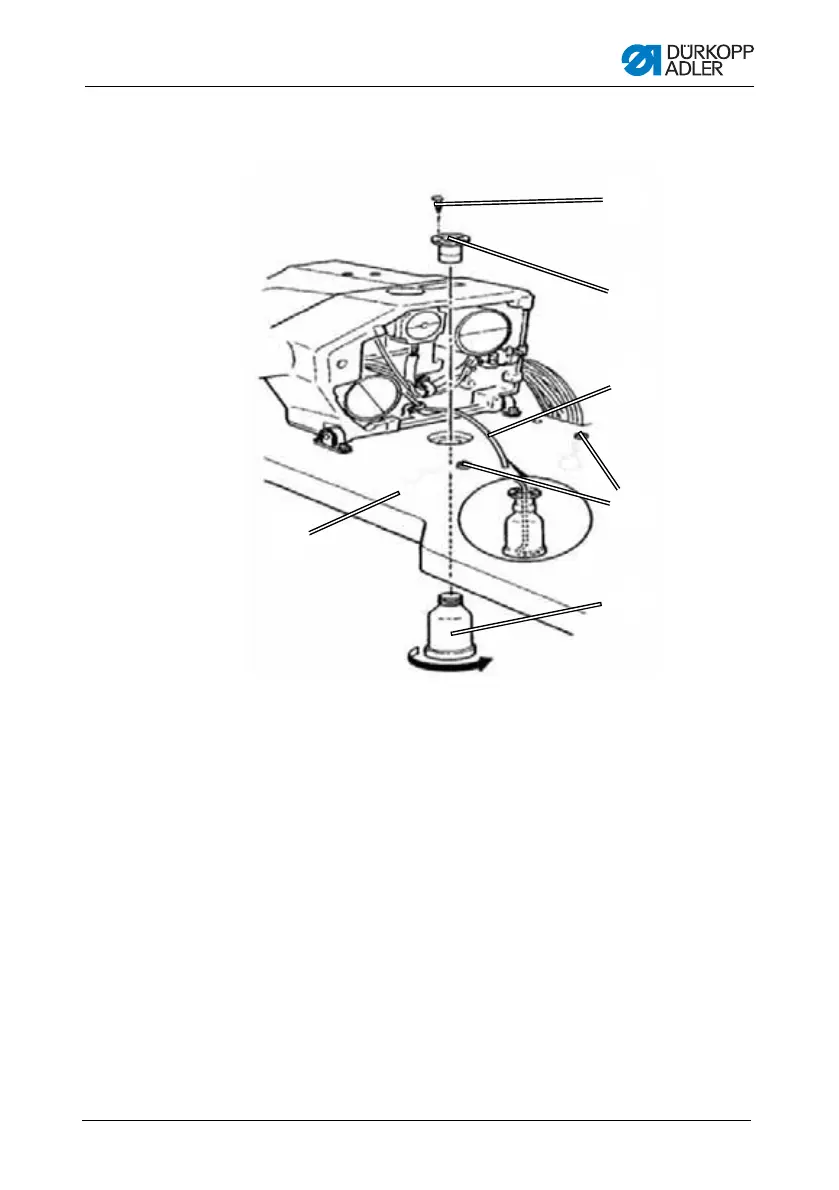

Figure 25: Fitting the oil collection reservoir
1. Insert the retainer (2) into the hole in the table plate (6) and
screw in place using 3 screws (1).
2. Screw the oil collection reservoir (5) into the retainer (2).
3. Pug the oil line (3) into the oil collection reservoir (5).
4. Plug the rubber mounts (4) into the table plate (6).
⑤
⑥
①
②
③
④
(1) - Screw
(2) - Retainer
(3) - Oil line
(4) - Rubber mount (in the oil
collection tray)
(5) - Oil collection reservoir
(6) - Table plate
