2.3 Tilting the machine head up
For maintenance work the machine head can be tilted up.
For this purpose the transport carriage must be in its rear end position.
Caution: Danger of injury!
Switchthemainswitchoff.
Tilting the machine head up.
–
Remove the covering hood 1.
For this purpose lift the covering hood at the front so that the catch
is released. Carefully lift the covering hood upwards.
–
Swing the folding station 3 out by 90°.
–
Swivel the locking lever 4 up.
–
Lift the left fabric sliding sheet 6 at the front and swing it to the left.
–
Lift the machine head in the area of head cover 5 and tilt it up
carefully.

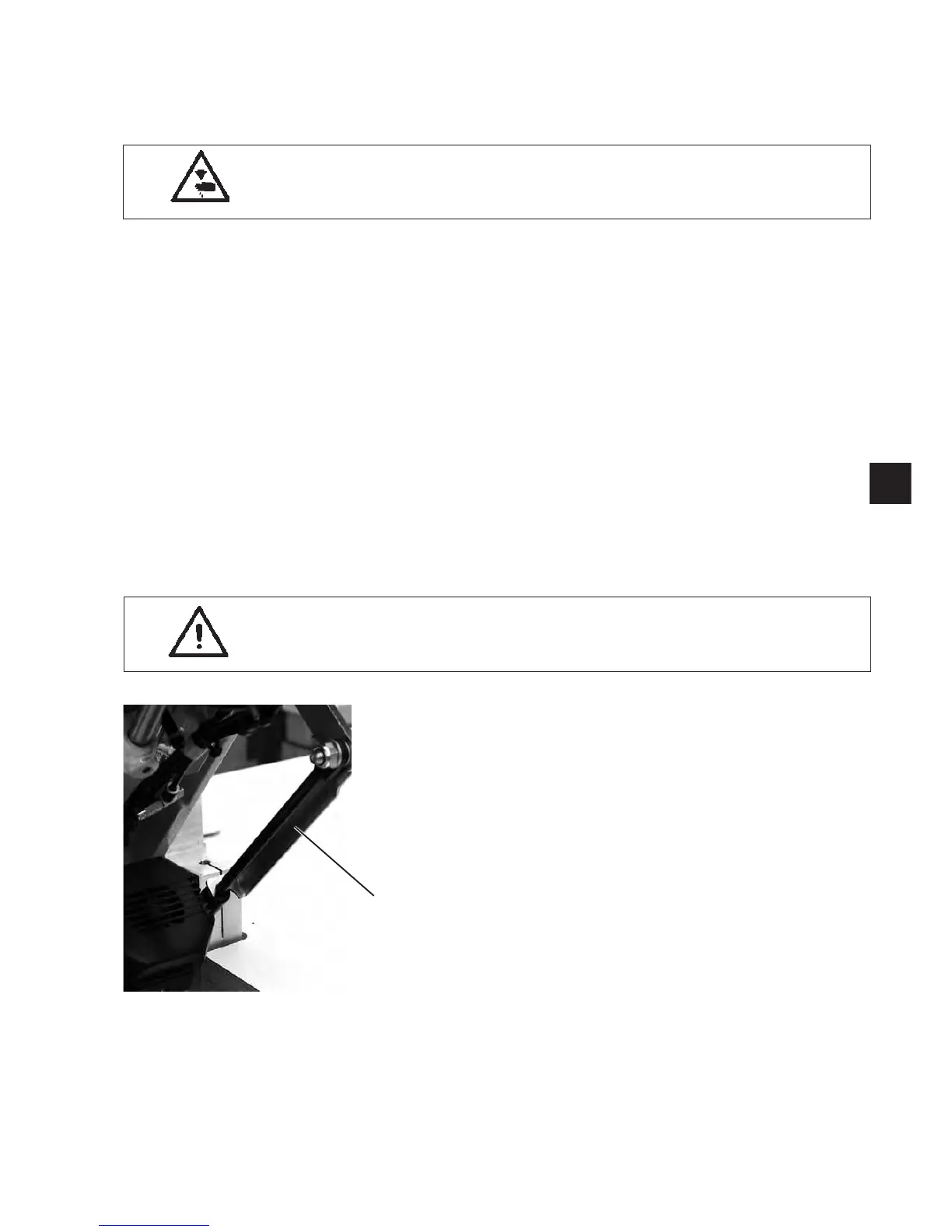

Pawl 2 snaps in additionally.
The space under the machine table is accessible for cleaning now.
Sw inging the machine head back
–
Hold the machine head tight in the area of head cover 5.
–
Release the pawl 2.
–
Swing the machine head back carefully.
Caution: Danger of breakage!
Hold the machine head tight until it is at rest completely.
–
Insert the fabric sliding sheets.
–
Swivel the locking lever 4 down.
–
Swing the folding station 3 back and let it catch with the locking
lever.
–
Put on the covering hood 1 and let it catch again.
1
15
2
