2.15.3 Working method A (Production of jackets)
Piped pockets, manual positioning of piping strip, flaps and other additional parts
Loading positions for left or right jacket front parts
–
Position the left jacket front parts at the rear positioning point (light
spot 3).
Position the right jacket front parts at the front positioning point
(light spot 7).
It is useful to generate a pocket program for left jacket front parts (rear
positioning point selected) and a pocket program for right jacket front
parts (front positioning point selected).
Thus, you only have to alter the pocket program in the main screen
when changing between left and right jacket front parts.
Aligning the positioning aids
Laser markings:
–
When positioning at light spot 9 the distance between breast dart
10 and flap edge 11 will always be the s ame.
Stops for the manual flap feed:
–
Adjust the stops 8 and 13 on the folder as to the light spots 7 and
12.
ATTENTION!
If the flap 5 is positioned outside the dotted lines of the sewing area,
the function sequence will be interrupted.

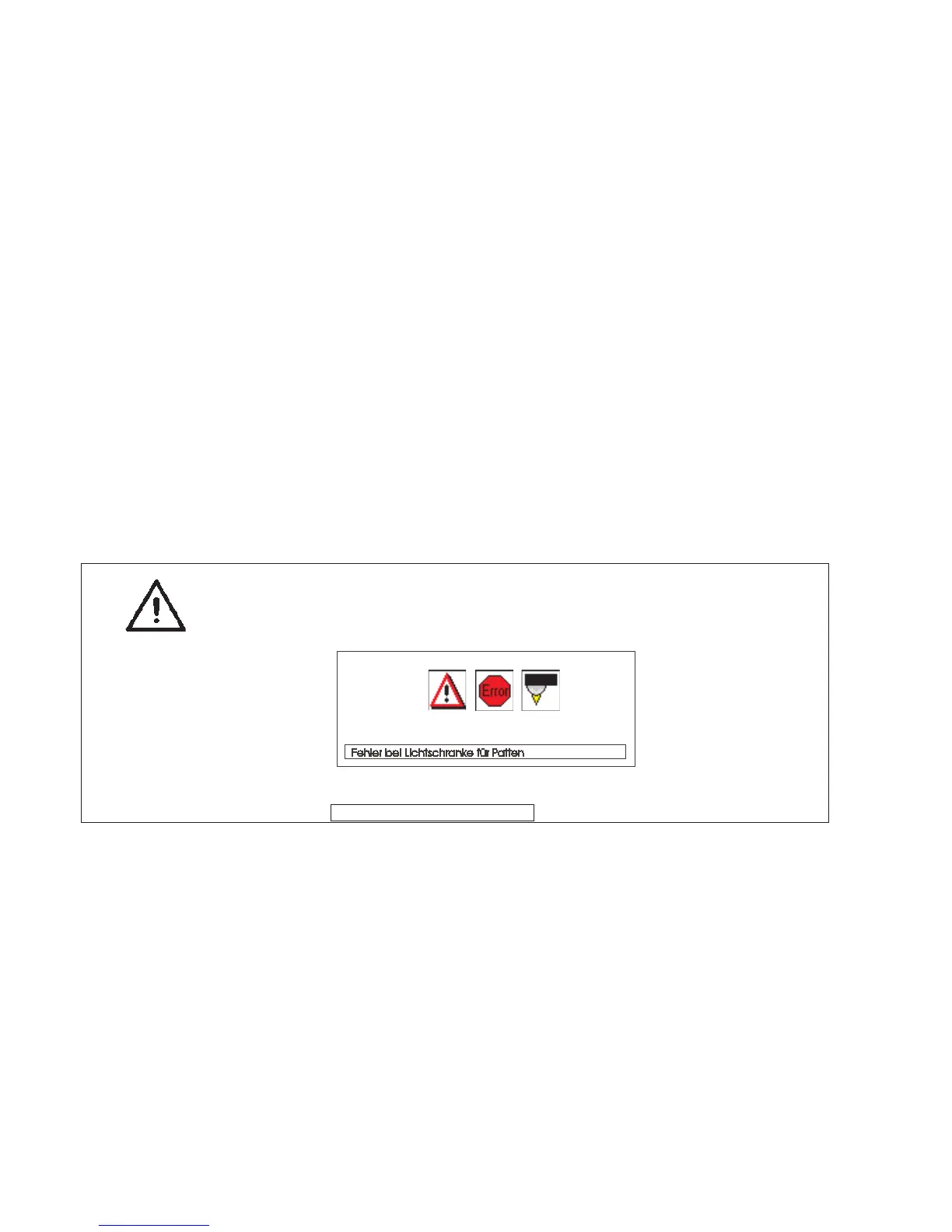

The display shows the following message.
Info line
Error of light barrier for flaps
Stop 14 (sew-in depth of the flap):
–
Set the sew-in depth of flap 5 by inserting the stop 14 in the
corresponding pair of slotted holes.
