2.16.10 Vacuum device
The vacuum device to be ordered under the order number
0745 597624 is required for an accurate positioning of the
workpieces, if no in-house vacuum unit is available.

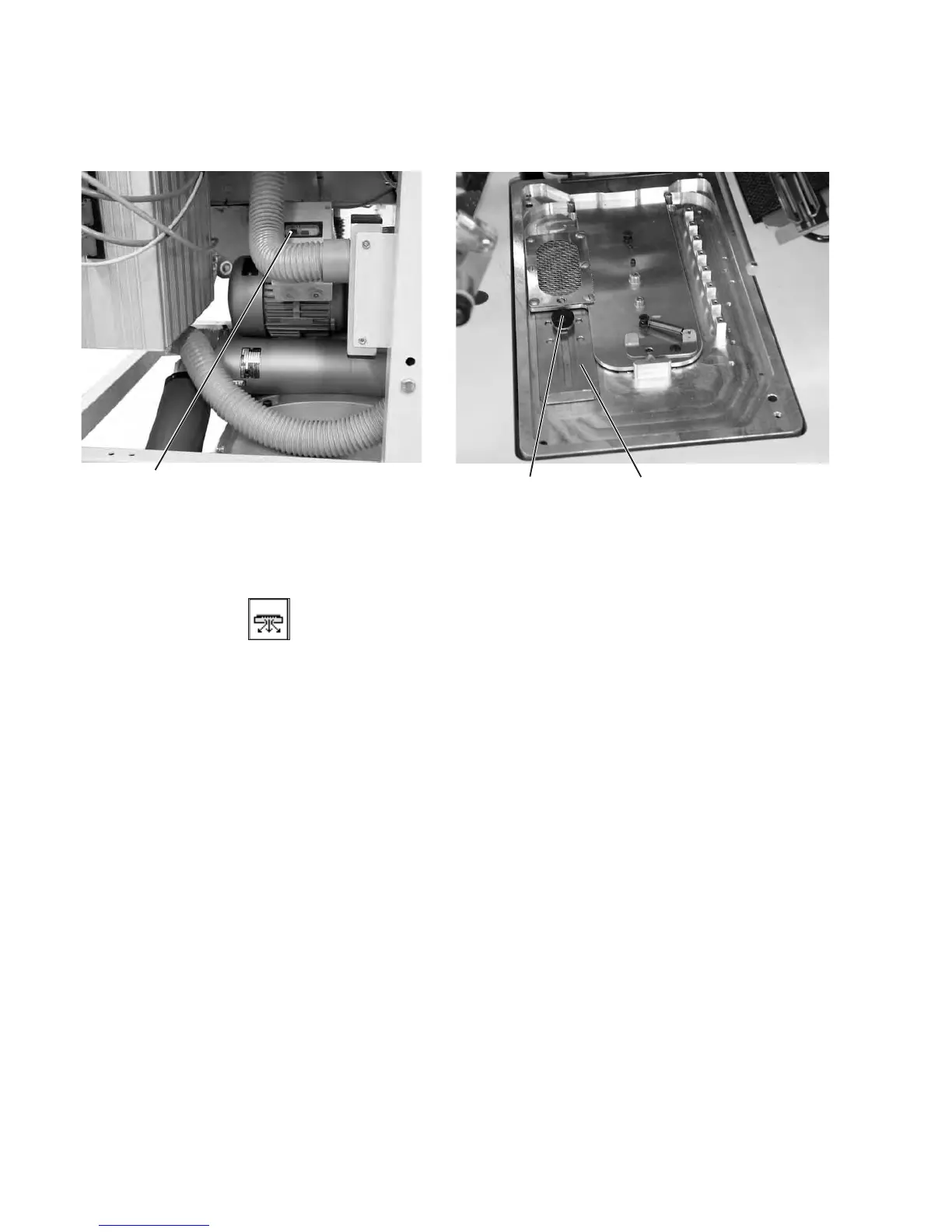

Sw itching t he vacuum device on
–
Switch on switch 1 at the control box of the
vacuum unit.
–
Activate the vacuum at the control panel in the menu item
“Pocket parameters”.
Adjusting the vacuum intensity
–
Loosen the knurled nut 3.
–
Shift the slide 2:
backwards (towards the machine head) = less vacuum
forwards (towards the operator) = more vacuum
–
Tighten the knurled nut 3.
82
32
1
