2.16.13 Set of parts “Shaped guide Lining loop triangle” for 745-34-2 methods B and F

With this equipment the lining loop triangle is automatically fed with the

pocket bag when sewing inside pockets. Only in conjunction with the

methods B and F.

Order No.: 0745 597614

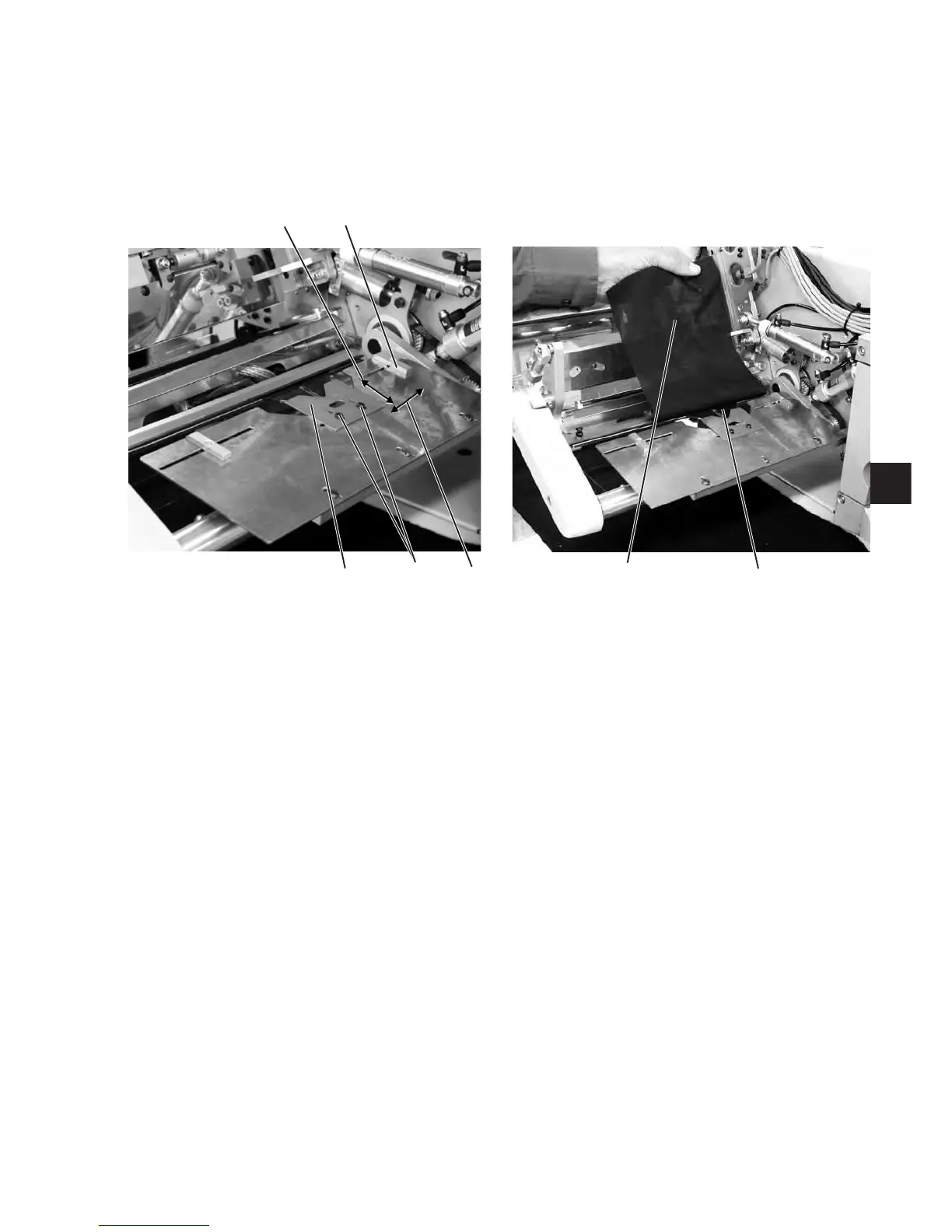

Adjusting the shaped guide

–

Loosen the screws 2.

–

Adjust the shaped guide 3 in sewing direction 1 to the middle of the

pocket length.

–

Set the sew-in depth of the lining loop triangle 6 by lateral shifting 5

of the shaped guide 3.

–

Tighten the screws 2.

Function and operation

–

Insert the lining loop triangle 6 in the shaped guide 3.

–

Position the pocket bag 7 at stop 4 or positioning mark (thin

adhesive tape).

–

Clamp pocket bag and lining loop triangle together by stepping

back on the right pedal. Hold the lining loop triangle with one finger

so that it does not slip.

–

Feed the pocket bag with lining loop triangle by s tepping on the left

pedal and start the sewing cycle.
