2.16.3 Feeding devices for flaps, pocket bags etc.
When using these feeding aids the total duration of a working cycle is
reduced.
Flap, pocket bag etc. are manually positioned during the machine time
already.
All feeding devices can also be used in c ombination with the device for
cutting open the piping ends.
The feeding devices are equipped with a blower for a flat pocket bag.
Two different feeding devices are available for an optimum adaptation
to the respective field of application:
0745 517564 Left feeding devices, s ewing length 180-220 mm
0745 517574 Right feeding devices, sewing length 180-220 mm
Sw itching the transfer device on
–
Switch the transfer device on in the menu item “Pocket parameters
(F1)”.
Function
–

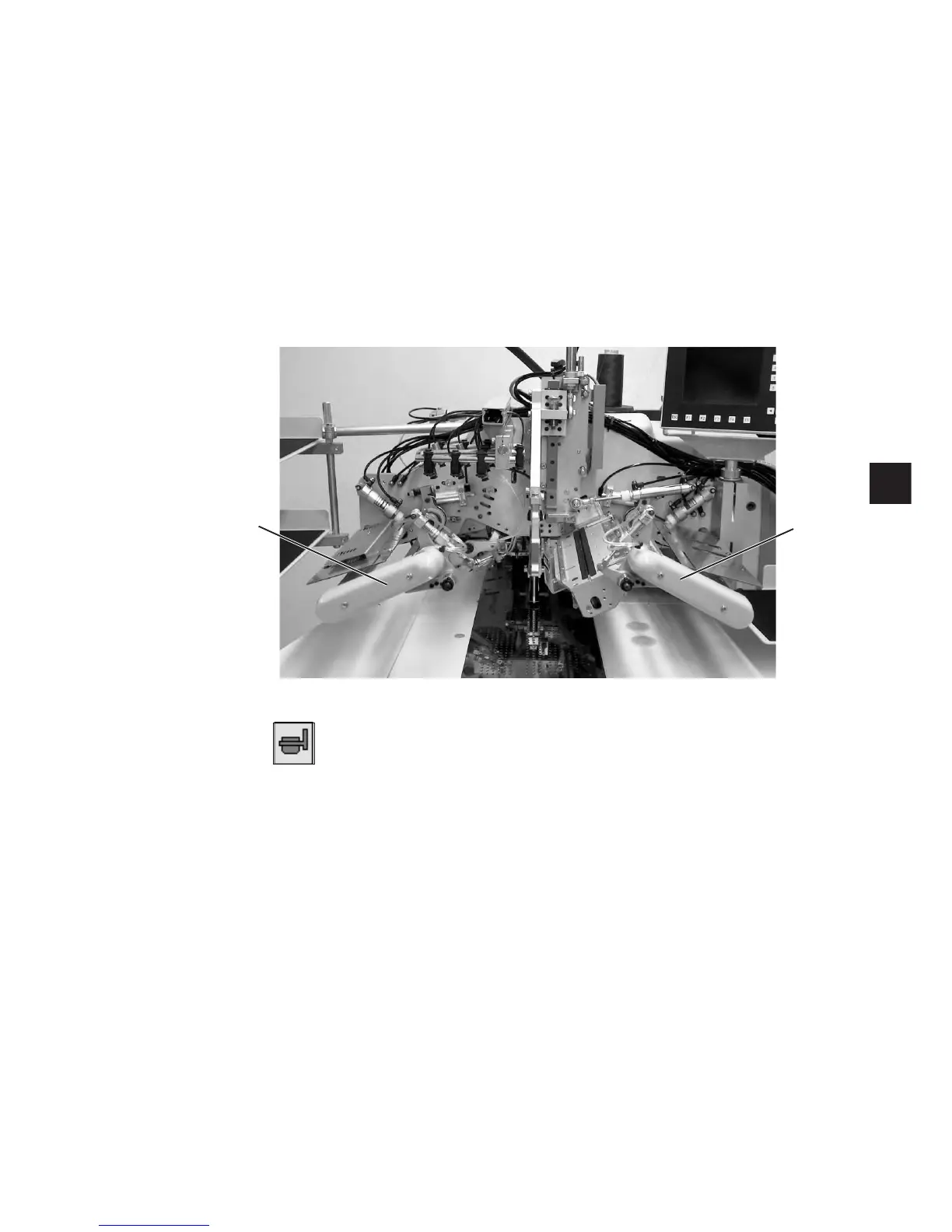

Step the right pedal back and hold it stepped down.
The right clamp 2 of the feeding device opens.
–
Insert flap or additional part in the feeding device.
–
Release the right pedal.
Theflapclamp2closes.
–
Step forward on the right pedal and hold it stepped down.
The left flap clamp 1 opens.
–
Position the flap at the stops of the feeding device.
–
Release the right pedal.
Theflapclamp1closes.
After the folding process
–
Step forward on the left pedal.
The flap clamps 1 & 2 swivel in the loading area and feeds the flap
automatically.
