DURKOPP ADLER 745-34-2 - Bundle Clamp and Roll-Off Device

2.16.7 Bundle clamp and roll-off device
The roll-off device (Order No. 0745 597954) is used when sewing hind
trousers parts.

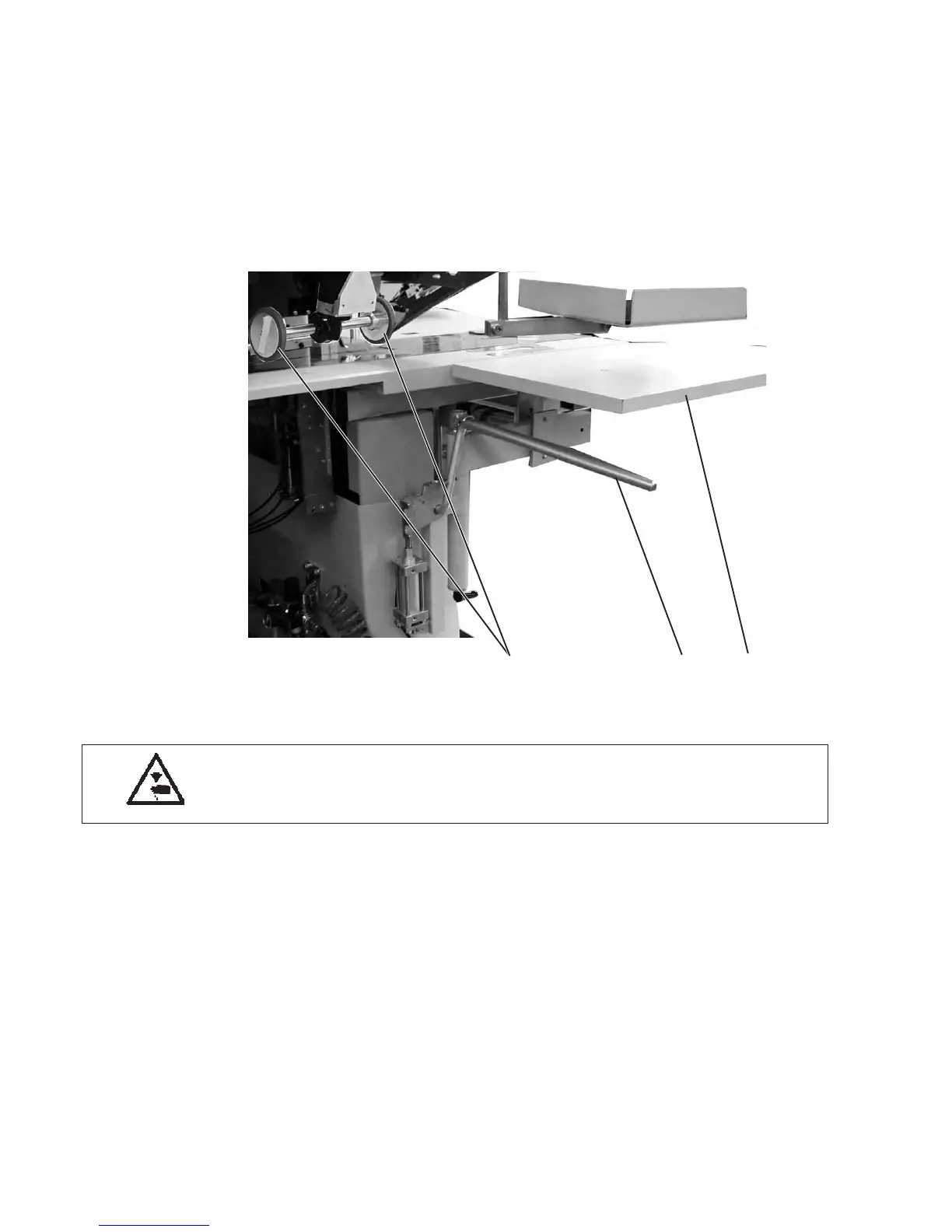

The transport rollers 1 convey the finished workpiece out of the sewing
unit so that it hangs down on the bundle clamp 2 (Order No. 0745
597694).
The transport rollers 1 are driven via an electronically adjustable drive.
The roller speed and the duty cycle can be separately set in multiple
stages at the c ontrol panel of the control.
Caution: Danger of injury !
Risk of suffering bruising between the arms of the bundle clamps.
Function and operation
–
Step the foot switch down and hold it down.
The bundle clamp 2 opens.
–
Hang the hind trousers parts in bundle clamp 2.
–
Release the foot switch.
The bundle clamp 2 closes.
–
Place the clamped hind trousers parts on the table extension 3
(Order No. 0745 597674).
–
With the lifting of the feeding clamps after the sewing and cutting
sequences the transport rollers 1 lower.
–
The transport rollers 1 convey the hind trousers part out of the
sewing unit.
The hind trousers part hangs down on the bundle clamp 2 then.
76
32
1
