2.10 Stacking control

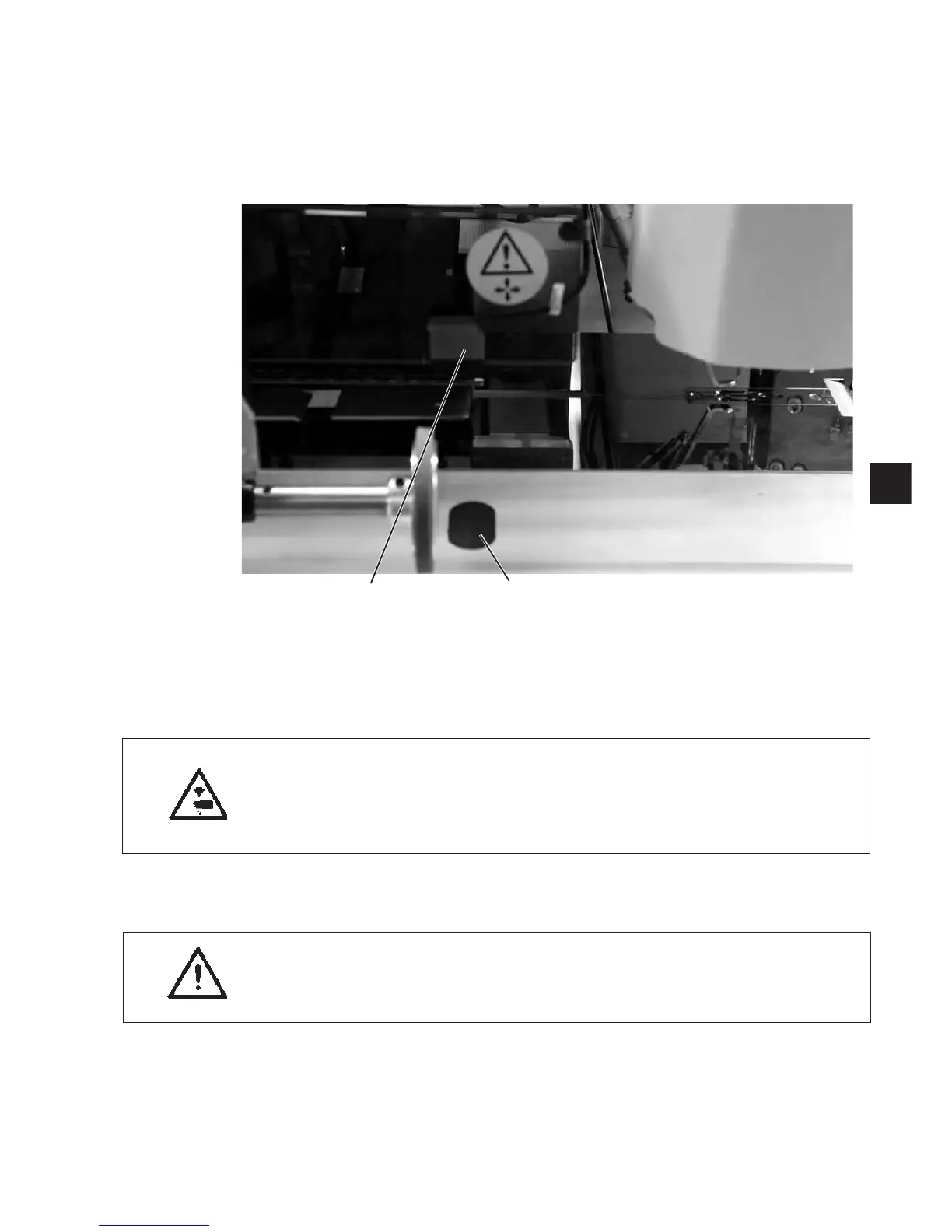

The reflected light barrier 1 monitors the s tacking and blowing-out of
thesewnworkpiece.
The transport carriage does not return before the workpiece has been
correctly moved out.
–
If the workpiece is not moved out correctly, the light beam between
the reflected light barrier 2 and the r eflecting sheet 1 remains
interrupted.
A renewed start is not possible.
Caution: Danger of injury!
Do not reach into the runway of the transport carriage when removing
the workpiece.
In sewing programs with automatic carriage return the transport
carriage moves to the front after the light beam has been released.
–
Remove the workpiece out of the light beam area.
A new sewing cycle can be started.
ATTENTION!
For a trouble-free function of the stacking control clean the lens of the
reflected light barrier once a day with a soft cloth.
