2.16.14 Smoother for 745-34-2 A and B

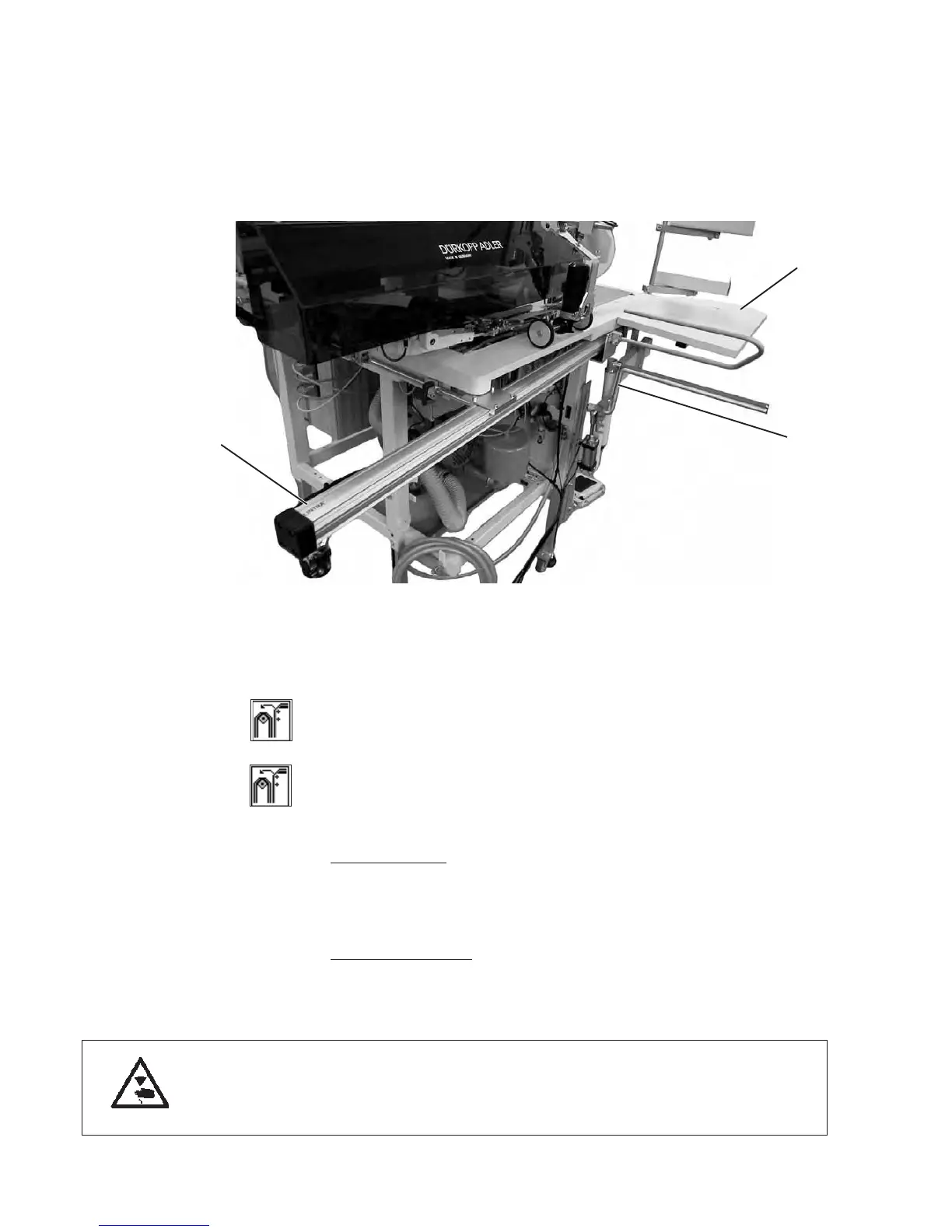

The smoother 1 is used when sewing hind trousers parts. It is used
together with the bundle clamp 2 and the table extension 3.
The roll off device will convey the finished workpiece out of the sewing
unit. The smoother will then run lengthwise in order to smooth the
finished workpiece held by the bundle clamp 2.
To control the smoother, the stacker signal will be used for that reason
it must be activated:
Activate the stacker:
–
Activate the stacker via the control panel in the menu “Machine
parameter” (see programming instructions chapter 7.2)
The parameter indicates to the control that the sewing unit is
equipped with a stacker.
–
Switch on the stacker
Switch on the stacker in the menu “Pocket parameter” (see
programming instructions chapter 6.4)
Function and operation:
Sewing process:
After the rolling off of the finished workpiece, the smoother 1 will run
automatically back and forth. The workpiece will then be smoothed
while being hold by the bundle clamp 2.
Removing/Clamping
Press down the foot switch of the bundle clamp continuously.
The smoother 1 will move to the end and will stay at its end position, as
long as the foot switch is pressed down.
Caution: Danger of injury!
When removing or clamping the bundle or during the sewing process,
stay away from the working range of the smoother.
