Changing the needles
Caution: Danger of injury!
Switchthemainswitchoff.
Change the needles only with the main switch switched off.
Risk of injuries from cuts!
Do not reach into the area of the center knife 3 when changing the
needles.
–
Swing the folding station aside (see chapter 2.1)
The needles are freely accessible.
–

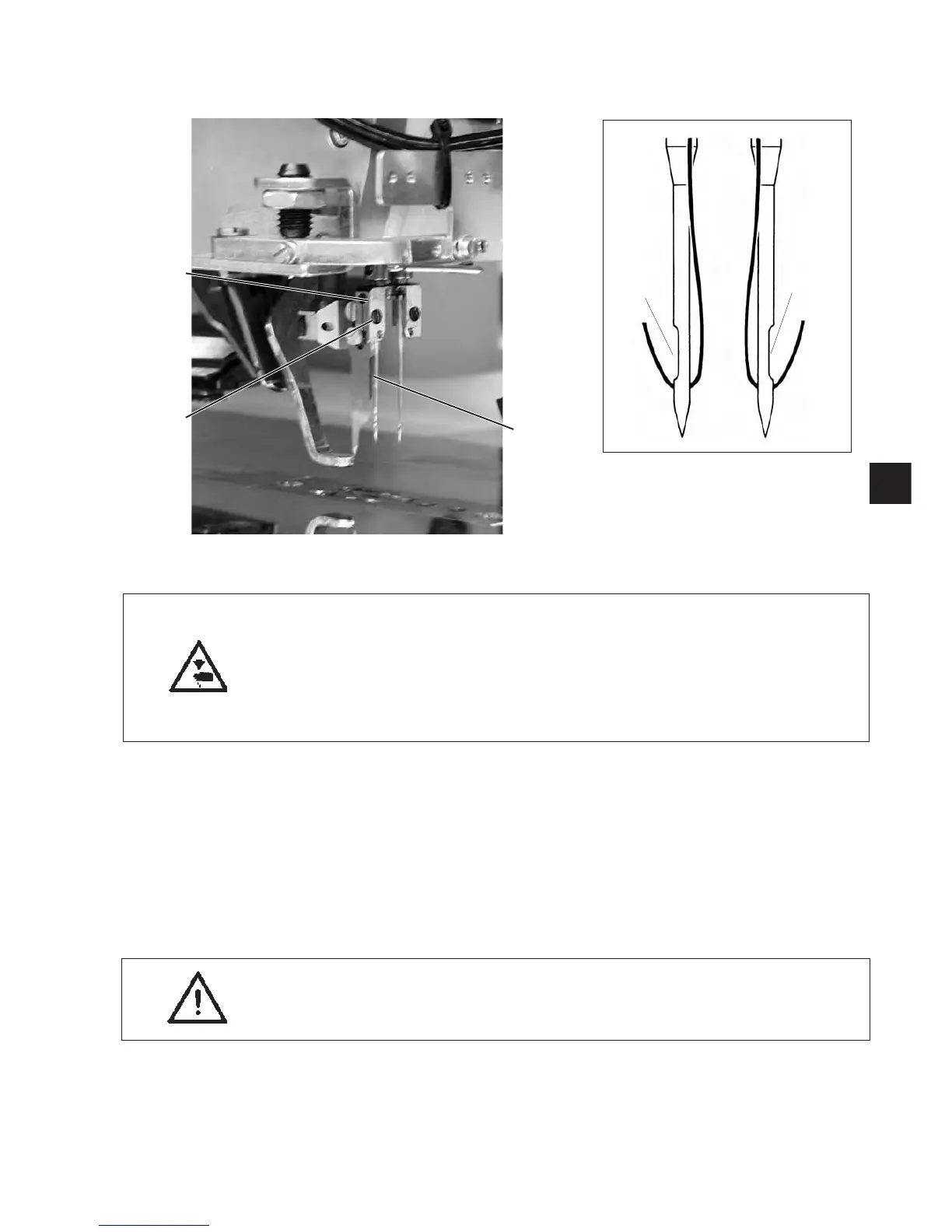

Loosen screw 2 and remove the needle from the needle holder 1.
–
Push the new needle into the drill-hole of the needle holder 1 as far
as it will go.
ATTENTION!
Seen from the operator ’s side the hollow groove 4 of the left needle
must point to the left and the hollow groove 5 of the right needle
must point to the right (see sketch).
–
Tighten screw 2.
ATTENTION!
After changing to another needle size the needle protection on the
hook has to be readjusted (see Service Instructions).
Note:
The standard needle size of class 745-34-2 is Nm 100.
1
17
1
2
3
4
5
