Machine head
16 Service Instructions 745-35-10 S/745-35-10 A - 02.0 - 04/2017
3.3 Swiveling up the machine head
The machine head can be swiveled up for maintenance work.
This requires that the transport carriage be in its rear position.

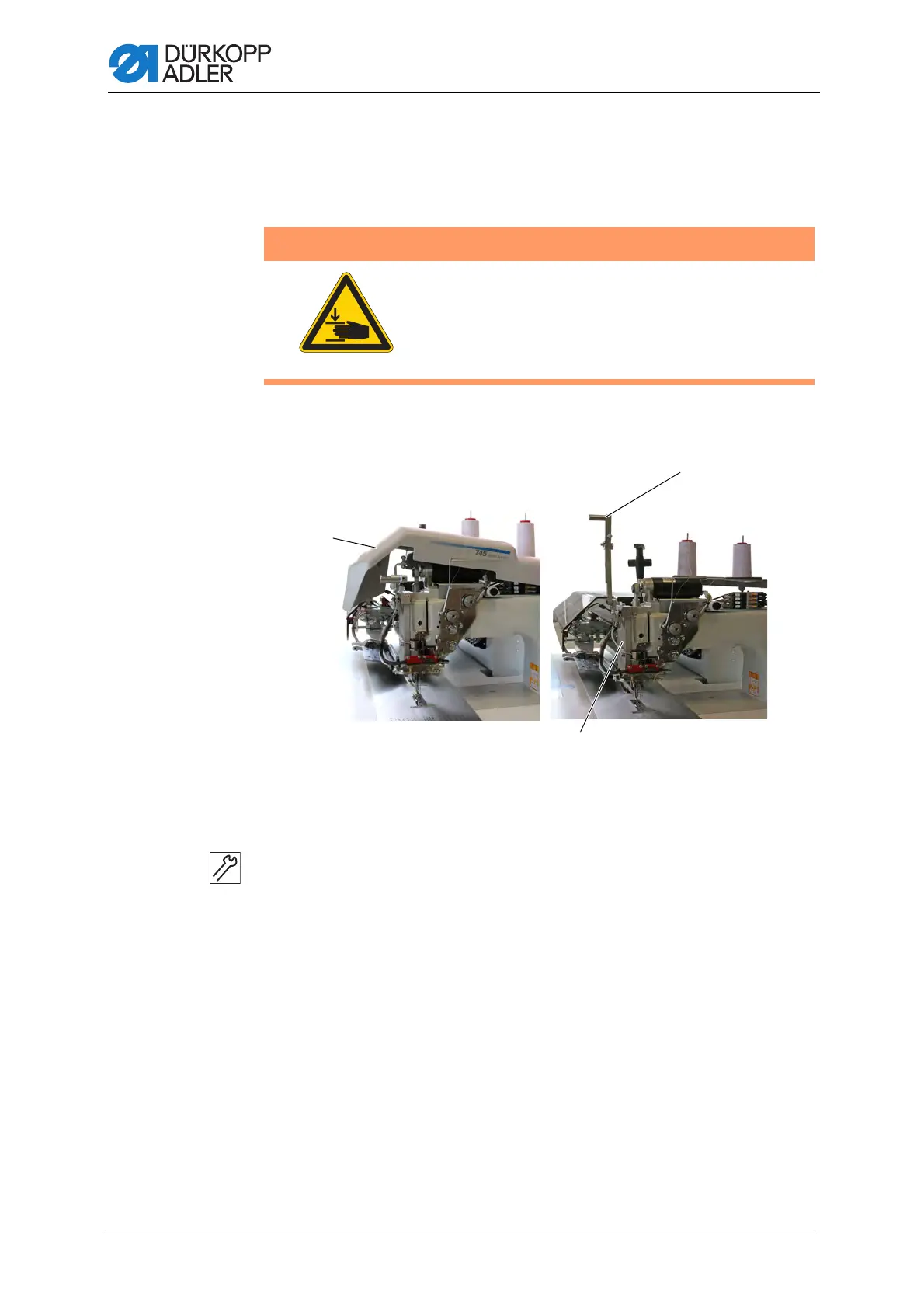

Fig. 2: Swiveling up the machine head (1)
To swivel up the machine head:
1. Remove the hood (1). To do so, lift the hood (1) up at the front to release
the lock. Carefully life the hood (1) up and off.
2. Pull the handle of the folding station up.
3. Swivel the folding station out by 90°.
4. Swivel the locking lever (3) up.
WARNING
Risk of injury from moving parts!
Crushing possible.
Do not reach into the table top cutout when the
machine head is swiveled up.
(1) - Hood
(2) - Head cover
(3) - Locking lever
