Maintenance
304 Service Instructions 745-35-10 S/745-35-10 A - 02.0 - 04/2017
You can order the lubricating oil from our sales offices using the following
part numbers:
17.2.1 Checking the oil level in the oil reservoirs
Check the oil level in the oil reservoir used for lubricating the
machine head

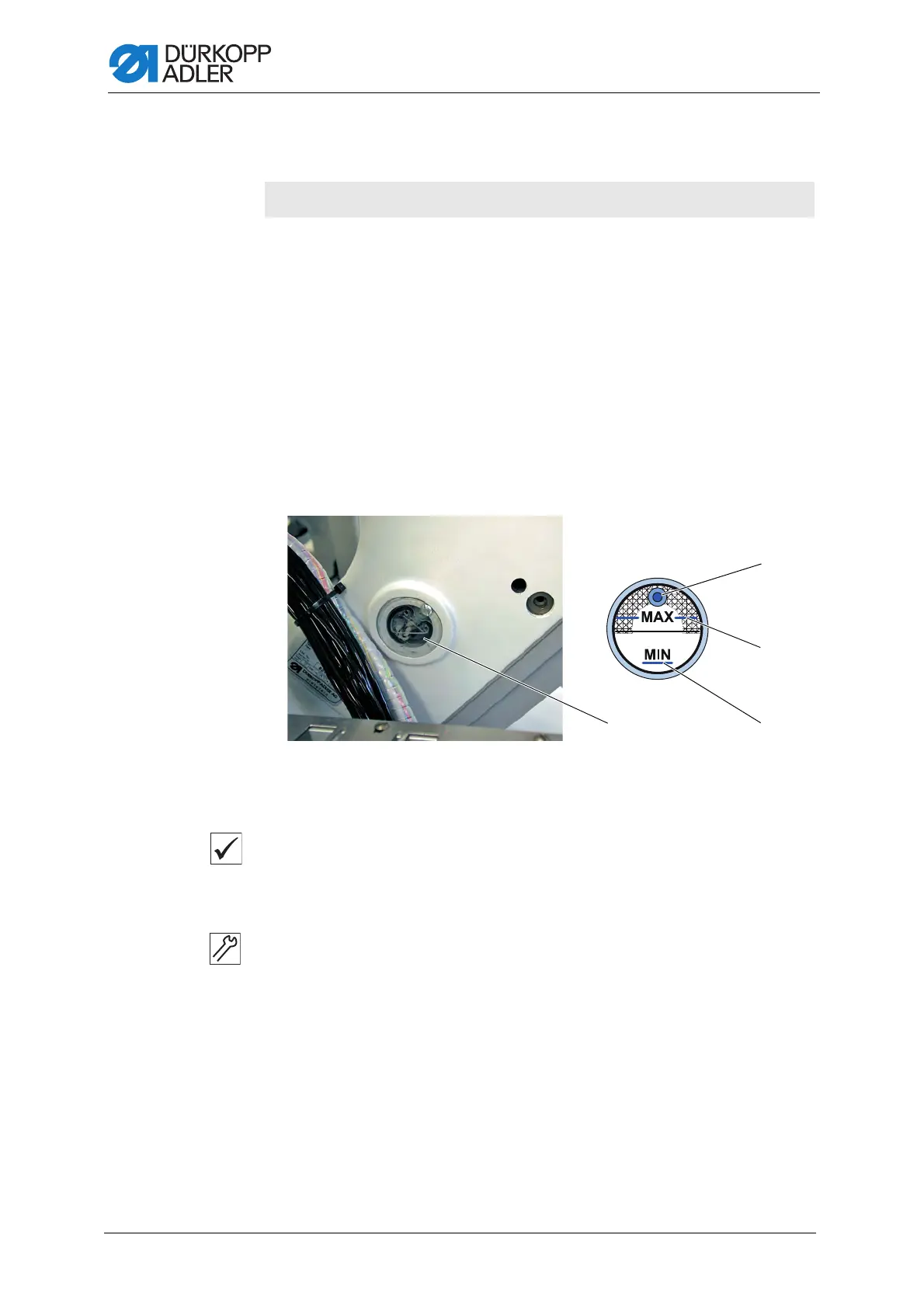

Fig. 265: Lubricating (1)
Proper setting
The oil level must not raise above the MAX marking (3) or drop below the
MIN marking (2).
To top up with oil:
1. Swivel up the machine head ( p. 16).
2. Refill oil through the hole (4) in the inspection glass until the oil level
reaches the Max marking (3).
Container Part no.
250 ml 9047 000011
1 l 9047 000012
2 l 9047 000013
5 l 9047 000014
(1) - Oil reservoir
(2) - MIN marking
(3) - MAX marking
(4) - Hole
①②
③
④
