Transport clamps
88 Service Instructions 745-35-10 S/745-35-10 A - 02.0 - 04/2017
5.2 Setting the stroke height of the transport clamps

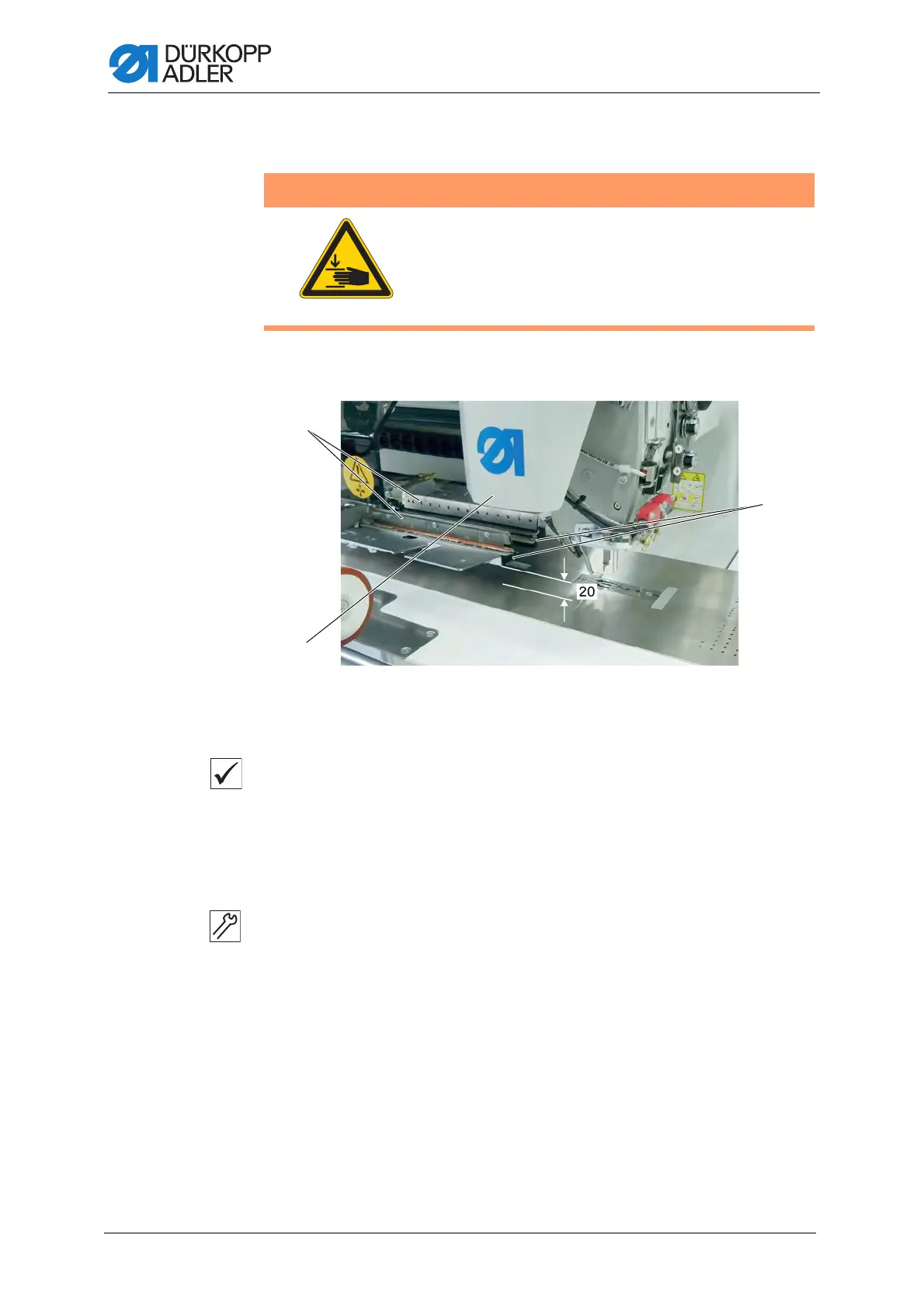

Fig. 73: Setting the stroke height of the transport clamps (1)
Proper setting
When the flap clamps (1) are closed, the raised transport clamps (2) need
to pass the machine arm (3) without colliding with it.
The distance between the front edges of the raised transport clamps and
the fabric sliding plate should be approx. 20 mm on the left and the right.
To set the stroke height of the transport clamps:
1. Slide the transport carriage under the machine arm (3).
2. Check the stroke height of the two transport clamps.
WARNING
Risk of injury from moving parts!
Crushing possible.
Do not check and set the stroke height of the transport
clamps unless the sewing unit is switched off.
(1) - Flap clamps
(2) - Transport clamps
(3) - Machine arm
①
②
③
