Transport clamps

Service Instructions 745-35-10 S/745-35-10 A - 02.0 - 04/2017 87

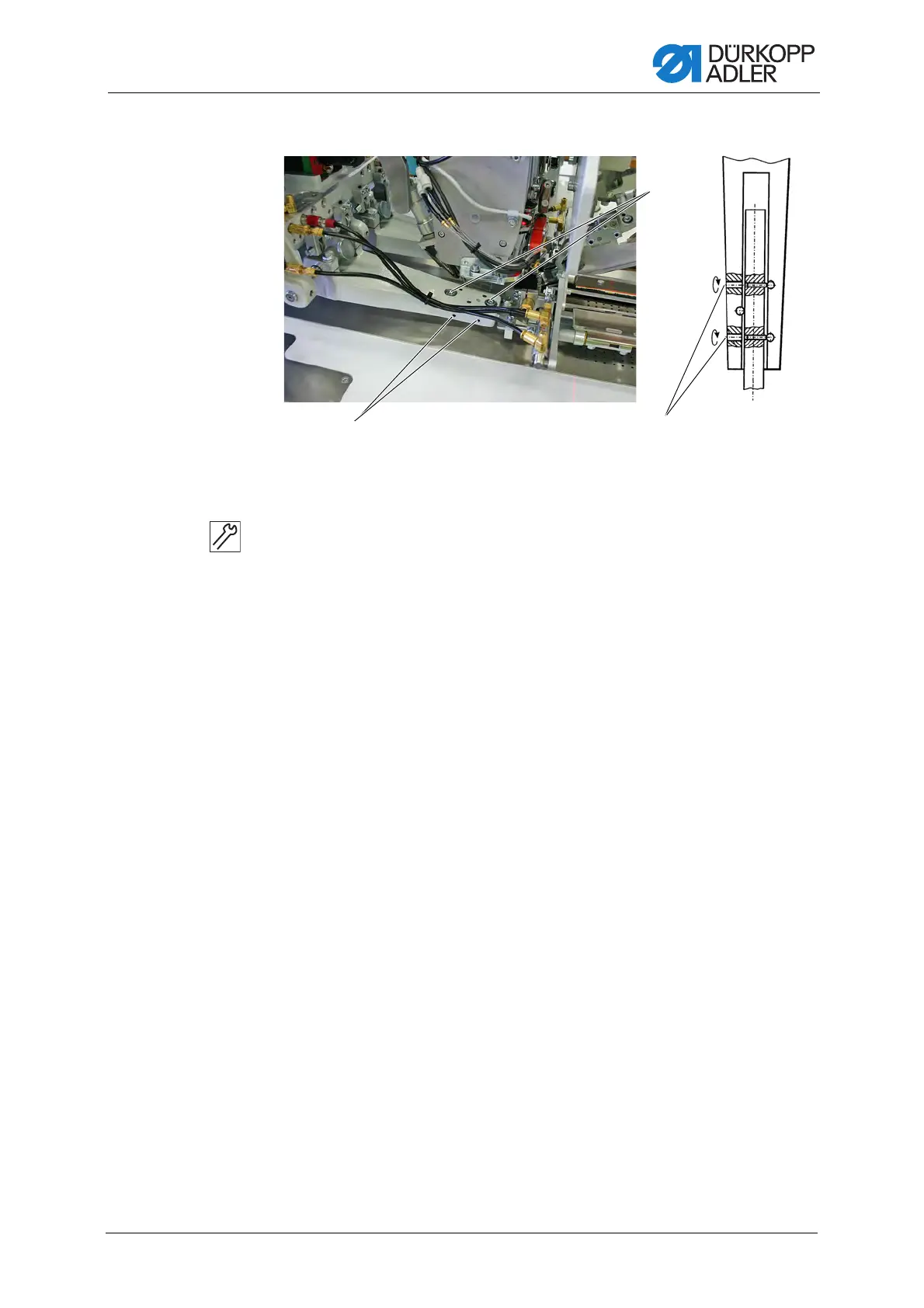

Fig. 72: Aligning the transport clamps with the sliding plate edge (2)

3. Slightly loosen the tightening screws (4).

4. Set the transport clamps (1) in parallel position using the hexagon

screws (3) (SW 2).

• Turn the hexagon screws (3) clockwise or counterclockwise until

reaching the parallel position.

5. Tighten the tightening screws (4).

(3) - Hexagon screws (4) - Tightening screws
