Transport carriage
Service Instructions 745-35-10 S/745-35-10 A - 02.0 - 04/2017 75
4 Transport carriage
4.1 Rear end position of the transport carriage

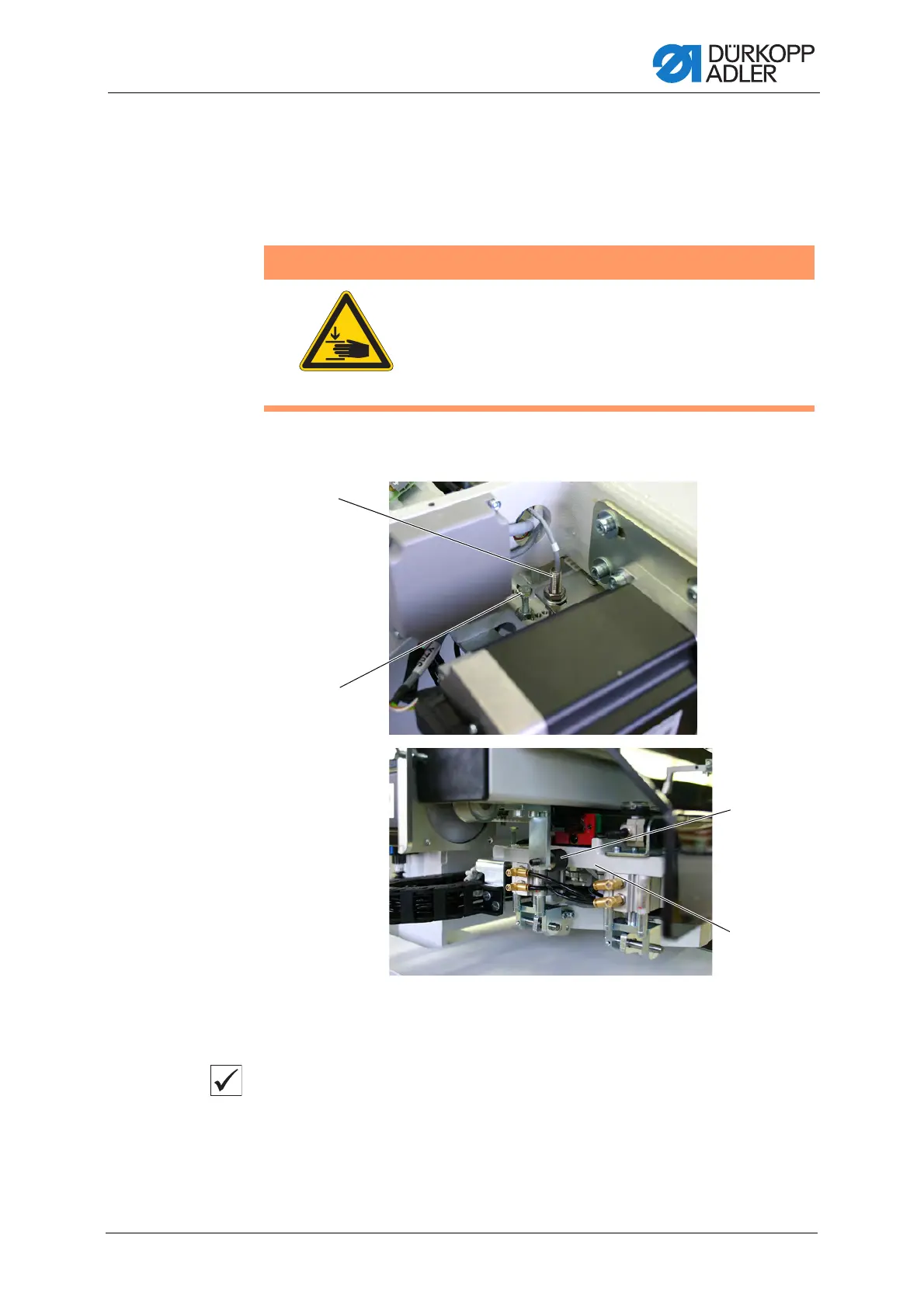

Fig. 62: Rear end position of the transport carriage
Proper setting
The reference switch (1) determines the rear and, by means of a defini-
tively specified path, the front end position of the transport carriage.
WARNING
Risk of injury from moving parts!
Crushing possible.
Do not check and adjust the switch and the stop for
the rear end position of the transport carriage
unless the sewing unit is switched off.
(1) - Reference switch
(2) - Switching screw
(3) - Transport carriage
(4) - Stop
①
②
④
③
