Programming

Service Instructions 745-35-10 S/745-35-10 A - 02.0 - 04/2017 299

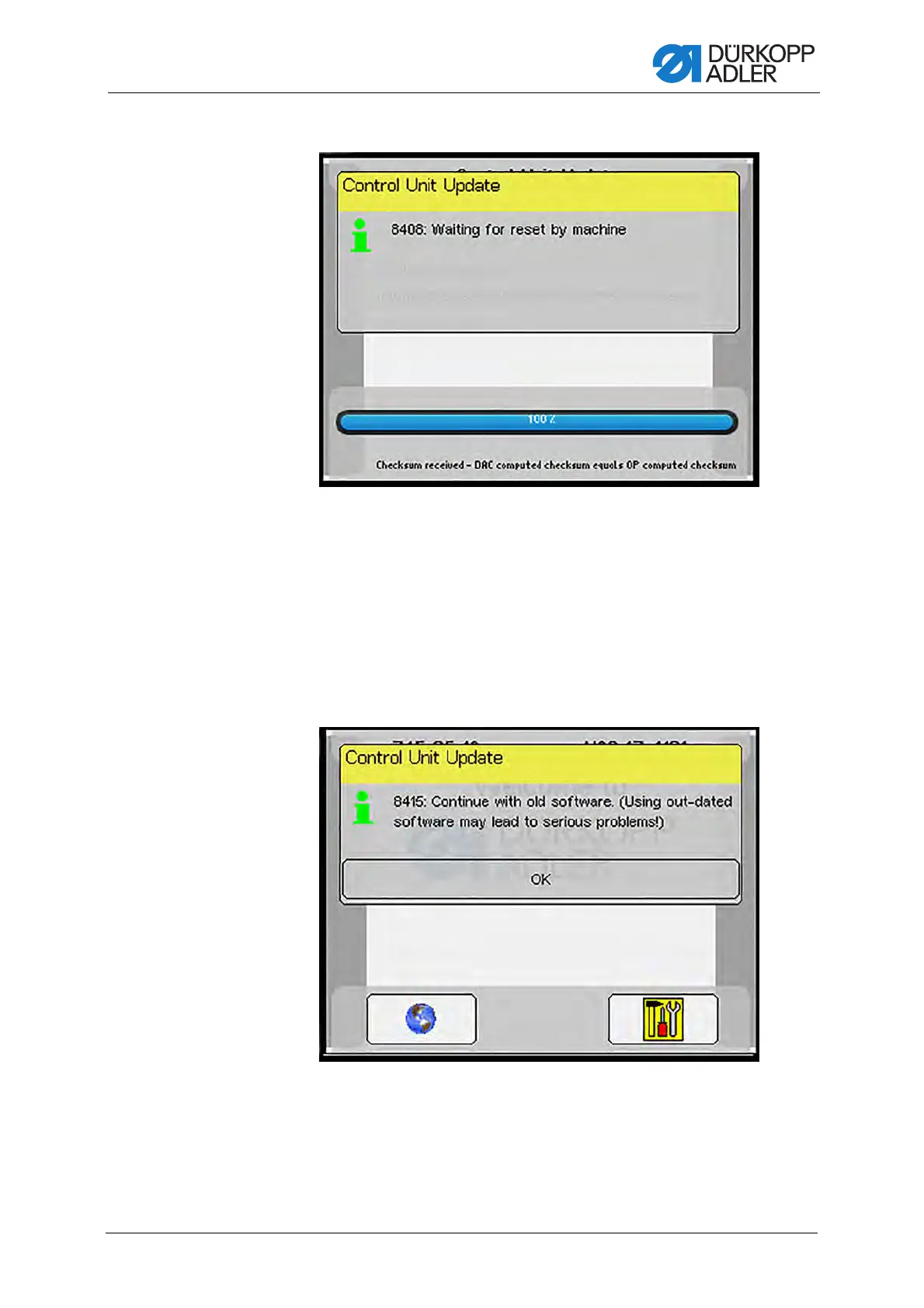

Fig. 262: Update the machine software (6)

 The machine restarts automatically.

After restarting, the machine loads the start screen and is ready for

operation.

8. Press CANCEL to cancel the update.

 The following warning appears:

Fig. 263: Update the machine software (7)

 After confirming with OK, you can continue working with the old

control software.
