Machine head

44 Service Instructions 745-35-10 S/745-35-10 A - 02.0 - 04/2017

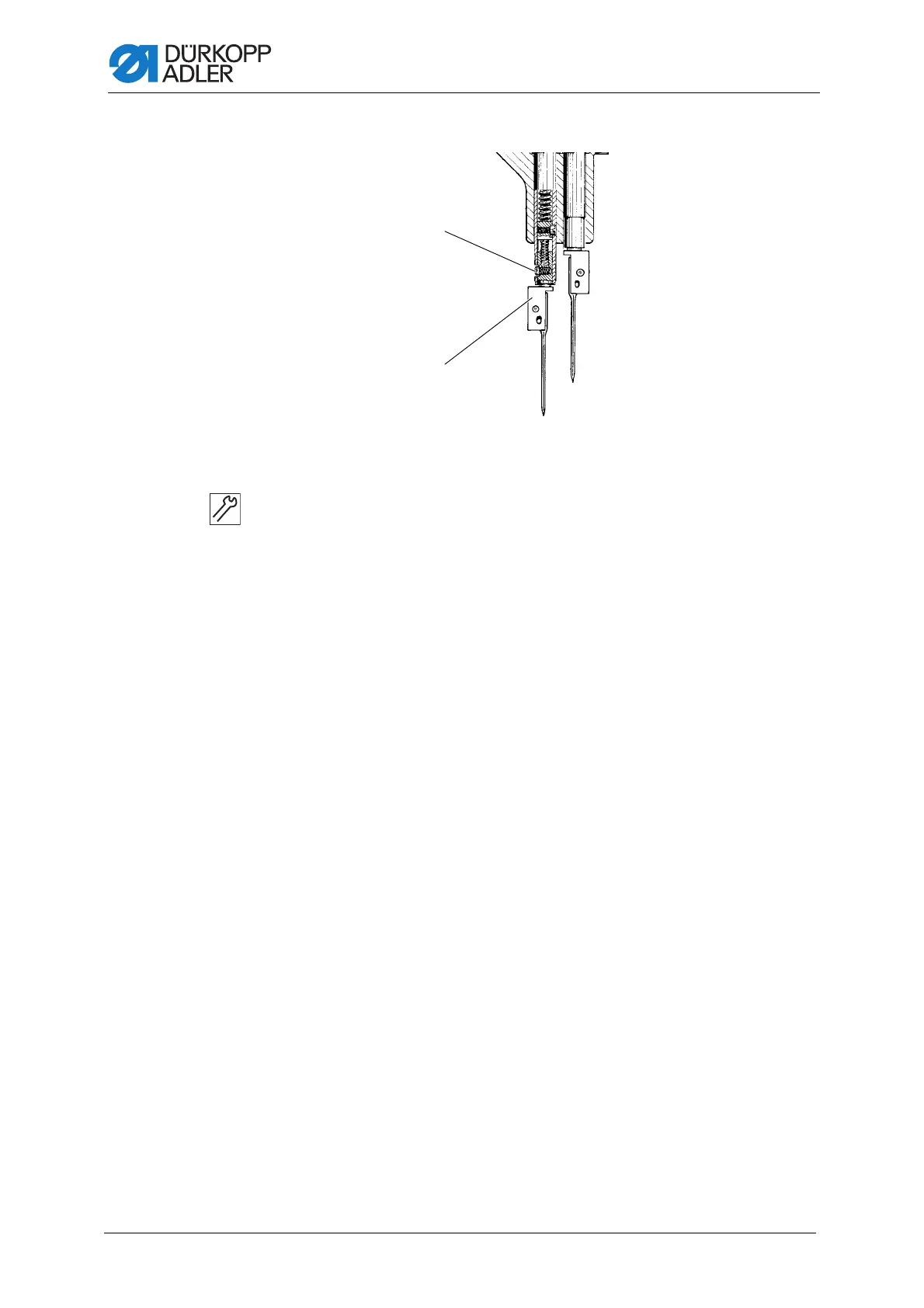

Fig. 32: Changing the needle holder (2)

7. Loosen the screw (2).

8. Loosen the needle holder (4) from the needle bar.

9. Screw in a new needle holder.

10. Adjust the height of the needle holder ( p. 50).

11. Tighten the screw (3).

12. Check how the needle plunges into the needle hole ( p. 42).

13. Check the lateral distance of the needle to the hook ( p. 52).

14. The second needle holder is replaced in the same way as the first

needle holder.

(1) - Screw (2) - Needle holder

②

④
