Transport clamps
Service Instructions 745-35-10 S/745-35-10 A - 02.0 - 04/2017 91
To set the distance of the transport clamps to the folder sole:
1. Check the loading process and the distance between the outer edges
of the folder sole (2) and the inner edges of the transport clamps (1).
2. Lower the folder.
3. Remove the locking plates on the left and the right.

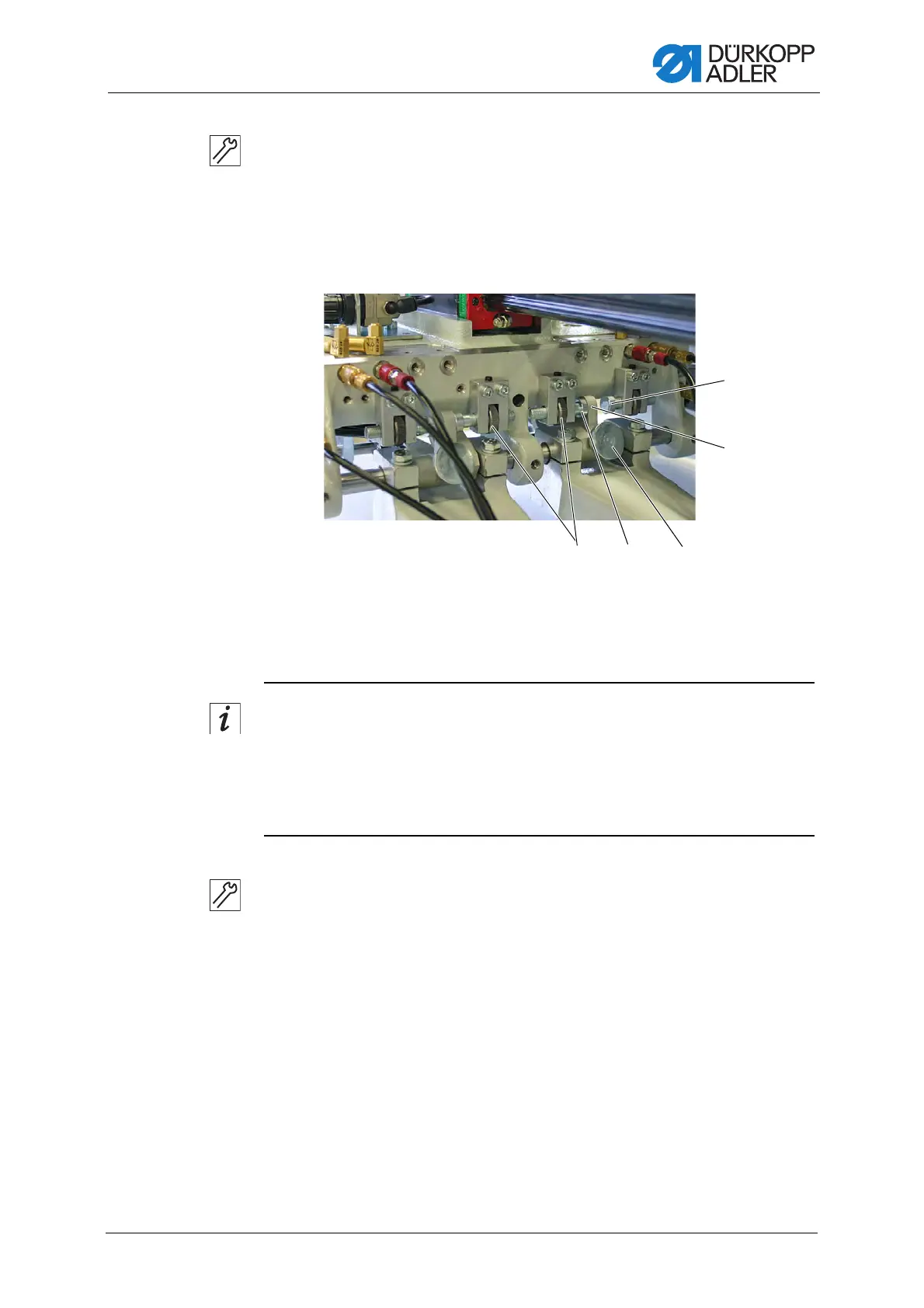

Fig. 76: Setting the distance of the transport clamps to the folder sole (2)
Information
For single and double piping, stop screw (4) and stop screw (7), respec-
tively, serve as a stop for the lever (6).
The fine adjustment of the stop screws can be carried out with the knurled
nuts (3).
4. Loosen the screw (5).
5. Depending on the application at hand, slide the lever (6) in front of stop
screw (4) or stop screw (7).
6. Re-tighten the screw (5).
(3) - Knurled nuts
(4) - Stop screw
(5) - Screw
(6) - Lever
(7) - Stop screw
