Easy xLogic User Manual

115
115
115
115
Parameter
Parameter
Parameter
Parameter p
p
p
p (number
(number
(number
(number of
of
of
of decimals)
decimals)
decimals)
decimals)
Applies only to the display of Ax and Ay values in a message text.
Does not apply to the comparison of On and Off values! (The compare function ignores the
decimal point.)
Description
Description
Description
Description of
of
of
of the
the
the
the function
function
function
function
The function reads the value of an analog signal at the analog input Ax.
This value is multiplied by the gain parameter A. Parameter B (offset) is added to the product,
i.e.
(Ax ∙ gain) + offset = Actual value Ax.
Setting
Setting
Setting
Setting the
the
the
the Par
Par
Par
Par parameter
parameter
parameter
parameter
The gain and offset parameters are used to adapt the sensors to the relevant application.

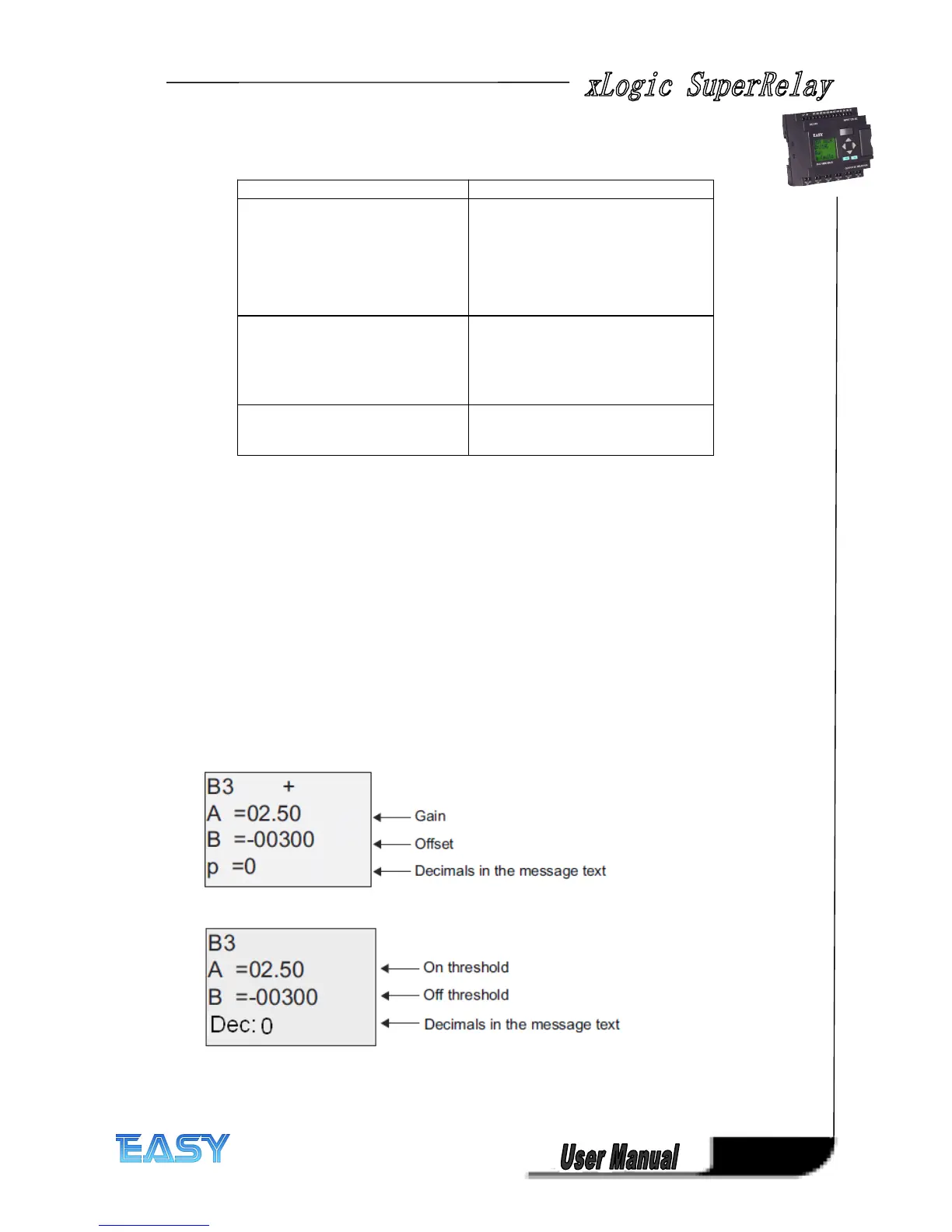

View in programming mode (example):
View in parameter assignment mode (example):
Connection
Connection
Connection
Connection Description
Description
Description
Description
Input Ax
Ax
Ax
Ax Input the analog signal to be
amplified at input Ax.
Use the analog inputs
AI1...AI8, the analog
outputs AQ1 and AQ2.
AI1..AI8: 0 - 10 V
corresponds with 0 - 1000
(internal value).
Parameter A:
A:
A:
A: Gain
Range of values: ± 10.00
B:
B:
B:
B: Zero offset
Range of values: ± 10000
p:
p:
p:
p: Number of decimals
Range of values: 0, 1, 2, 3
Output A Q
Q
Q
Q
Analog output
Value range for AQ:
-32768...+32767
