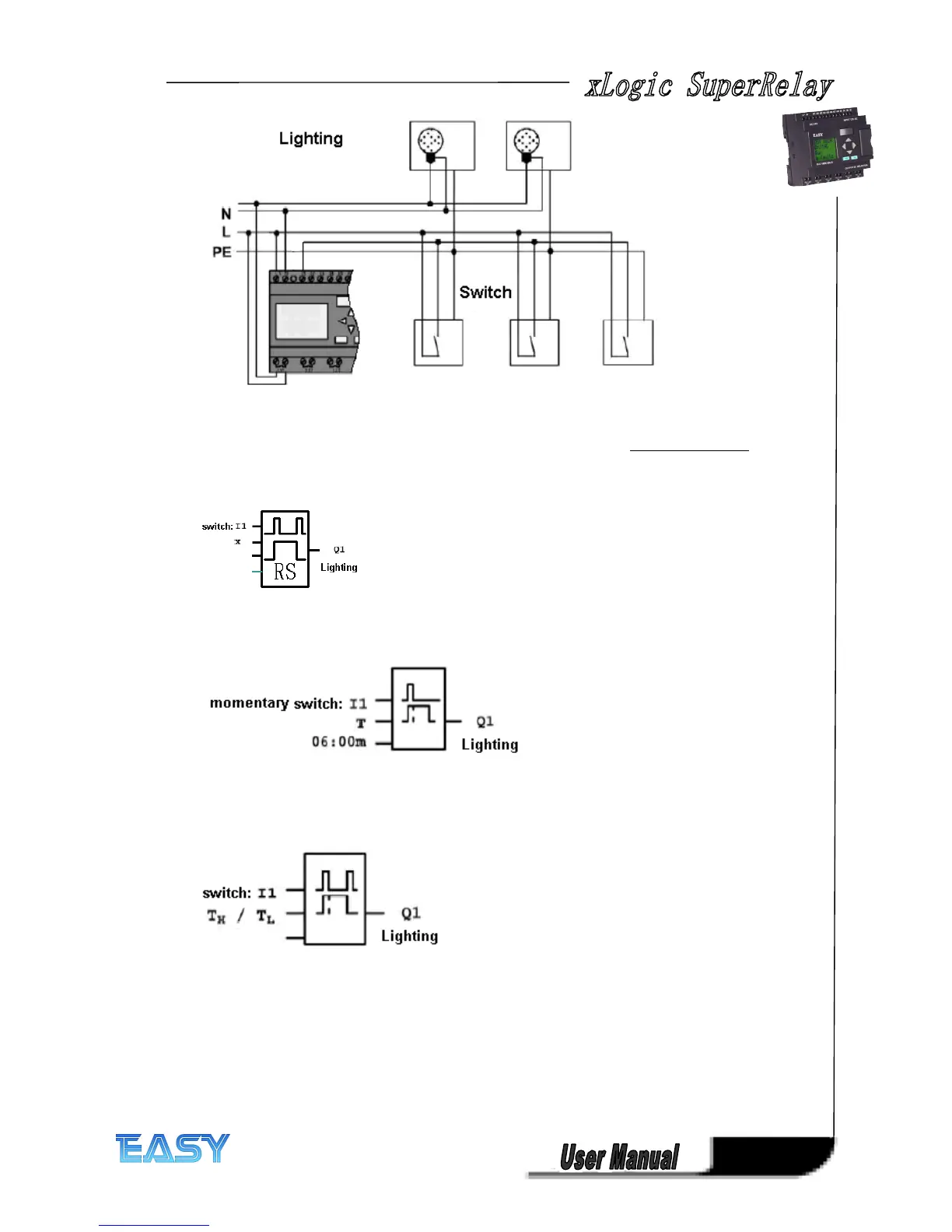

The wiring of a lighting system with xLogic is the same as standard corridor or stairway lighting
systems. Only the automatic lighting timer/pulse relay is replaced.
xLogic lets you quickly and easily combine all those functions in a single dual-function switch
SFB, without additional wiring and expenditure.
Apply
Apply
Apply
Apply pulse
pulse
pulse
pulse relay
relay
relay
relay of
of
of
of xLogic
xLogic
xLogic
xLogic
When the input “ I1 ” has a pulse, the output “ Q1 ” will be on or off.
Automatic
Automatic
Automatic
Automatic stairway
stairway
stairway
stairway lighting
lighting
lighting
lighting system
system
system
system
If input “ I1 ” has a pulse, the output Q1will be on and keep 6 minutes, then be off.
Apply xLogic to realize multiple switches
When the input “ I1 ” has a pulse, the output “ Q1 ” will be on and not off until the period “ TH ” be
over .
Keep the momentary switch holding down in period “
TL
”
, the light will be on all the time.
Select
Select
Select
Select special
special
special
special function
function
function
function
The following selection can be done as special function or saving energy sources:
