A Ventilation system supplies fresh air into a room and exhausts the contaminated air. Let us
look at the following sample system:
A room contains an extractor fan and a fresh-air fan.
Each fan is monitored by means of a flow sensor.
The pressure in the room may rise above the atmospheric pressure.
The fresh-air fan may only be switched on if the flow sensor signals the safe operational state
of the extractor fan.
A warning lamp indicates failure of one of the fans.
6
6
6
6 .3.1
.3.1
.3.1
.3.1 Standard
Standard
Standard
Standard solution
solution
solution
solution

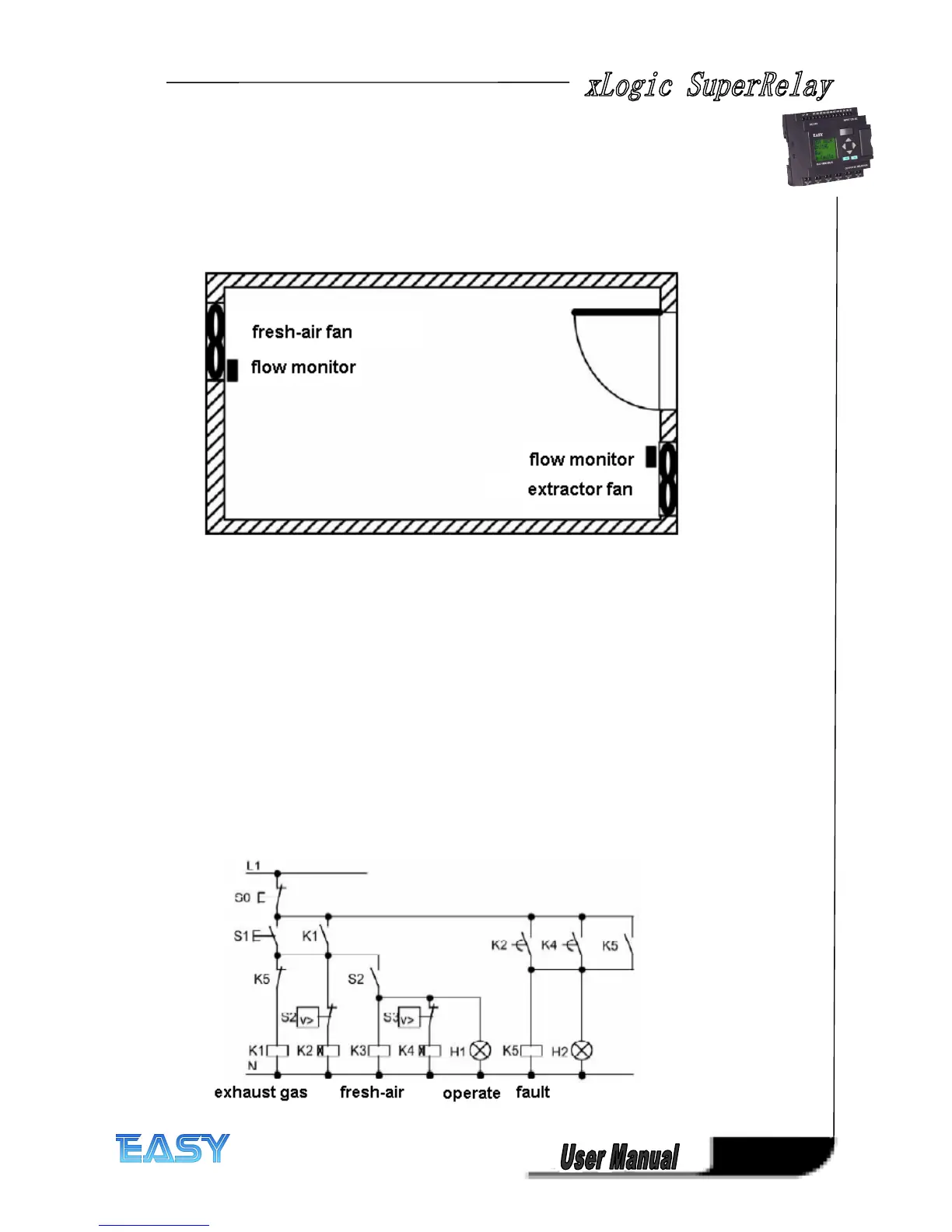

The control circuit diagram of Ventilation system formerly as follows:
