B1(make contact) Daylight control switch

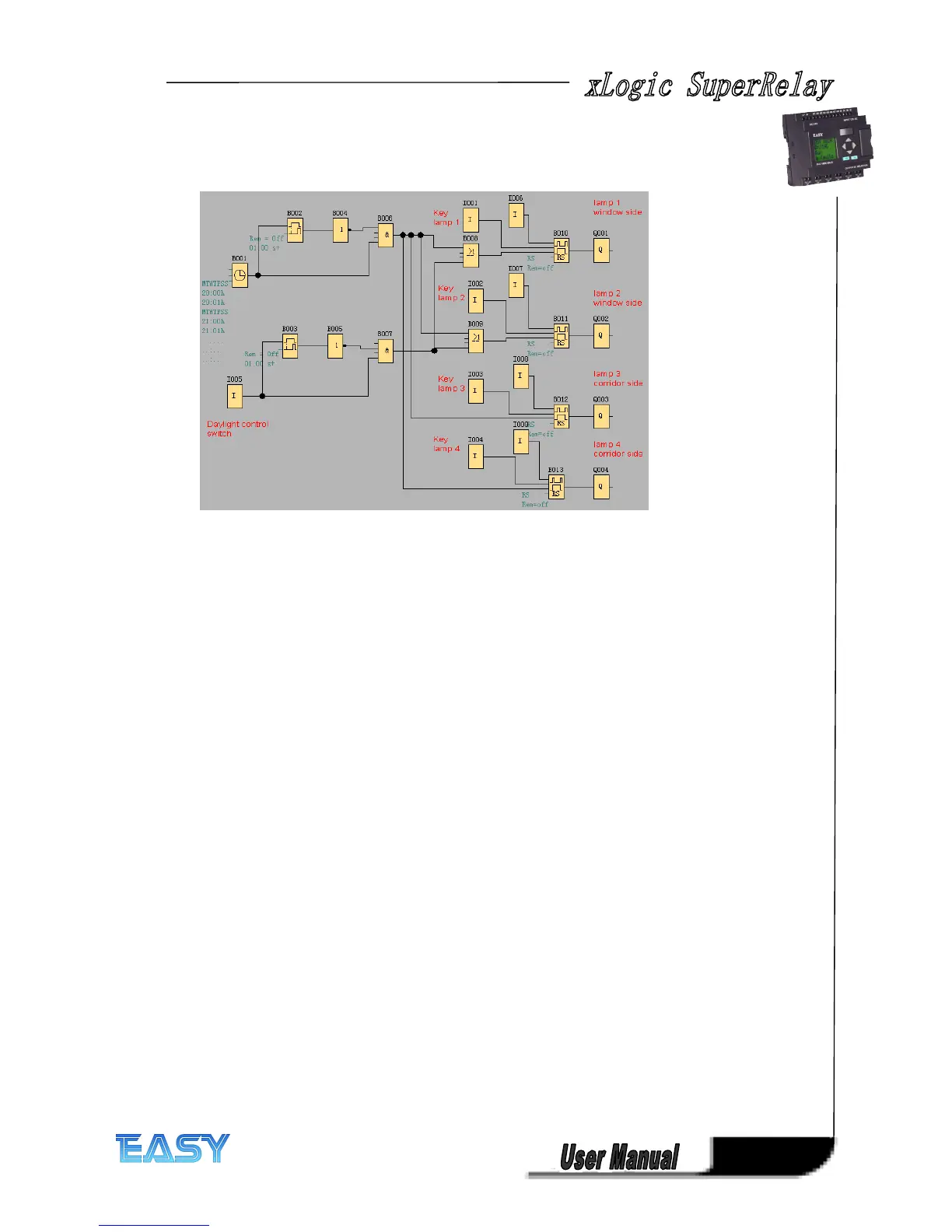

Circuit diagram by xLogicsoft:
Benefits:
While power consumption of load does not exceed output of switch ’ s voltage range, lamp can be
directly connected to xLogic main module; however, if power consumption of load exceeds
output of switch ’ s voltage range, then power contactor would be required.
You can connect directly lightness sensitivity switch to the input of xLogic.
Don ’ t need external timer, as this function has been integrated in xLogic.
It can be installed in a small-sized cabinet, so quite space-saving.
Less equipment
Quite easier to modify lighting system
According to your demand, you may setup supplementary on/off timing (lamp can be switched off
in order at the end of day.
Easier to apply role of lightness sensitivity switch to lamp or already modified lamp row.
6
6
6
6 .6
.6
.6
.6 Rainwater
Rainwater
Rainwater
Rainwater pump
pump
pump
pump
Nowadays besides drinkable water in family, rainwater applications is gradually increasing. In this
way much costs can be saved, also environment can be improved as well. The application of rain
water as follows:
Wash clothes
Water system in garden
Potted plant water
Wash car
Scour W.C.
The following figure is to tell you how to run the rainwater application system:
To Next Page
