● Softkey
● ....
The chapter entitled " xLogic functions " gives a full list of the xLogic functions.
Block
Block
Block
Block representation
representation
representation
representation on
on
on
on the
the
the
the xLogic
xLogic
xLogic
xLogic Display
Display
Display
Display

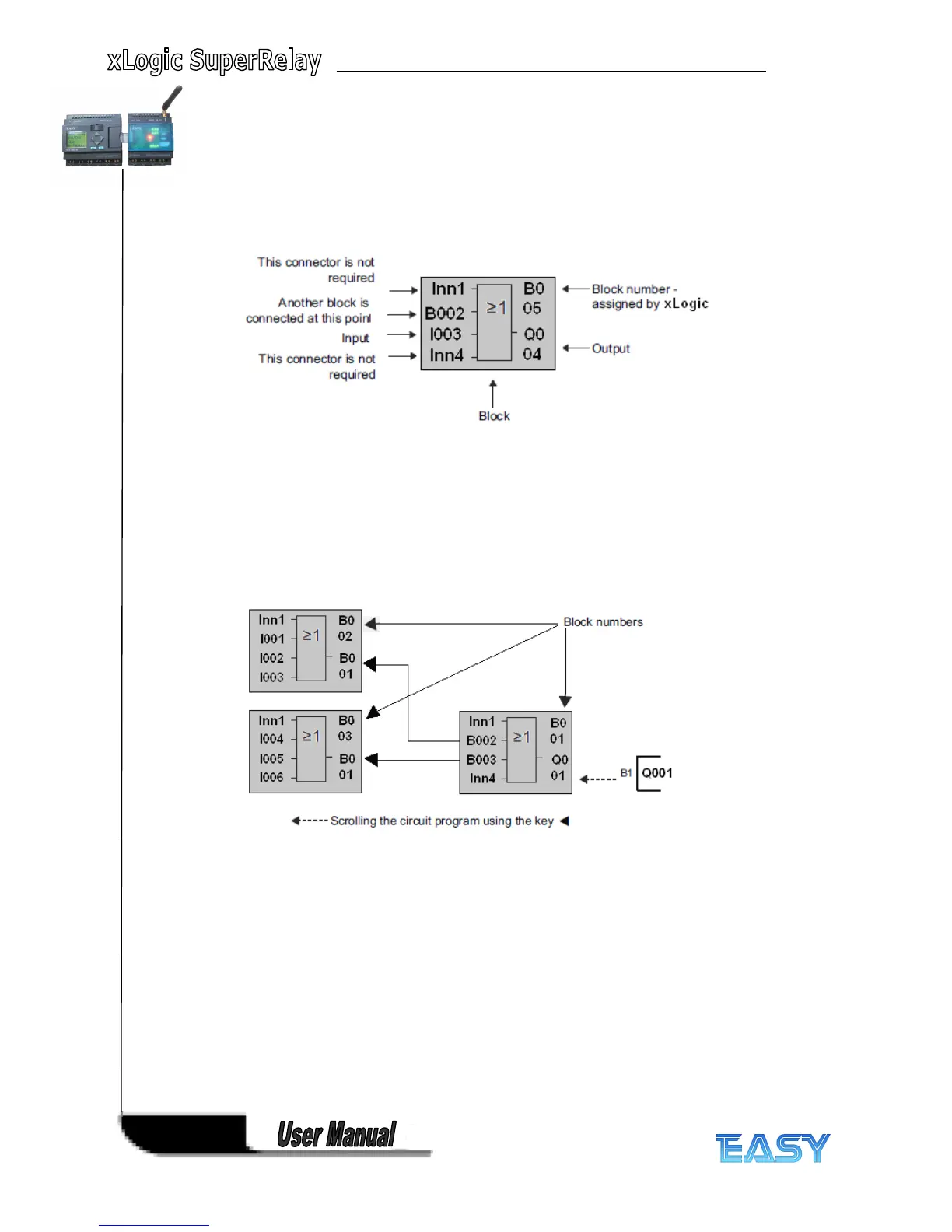

The figure below shows a typical view of the xLogic Display. As you can see, it can show only
one block at a time. We have therefore introduced block numbers to help you check the circuit
structure.
Assigning
Assigning
Assigning
Assigning a
a
a
a block
block
block
block number
number
number
number
xLogic assigns each new block in a circuit program a block number.
xLogic uses these block numbers to indicate the block interconnections. This means that these
numbers are mainly an aid to your orientation in the circuit program.
The figure above shows you three views of the xLogic Display, which represent the circuit
program. As you can see, xLogic interconnects the blocks using their numbers.
Advantages
Advantages
Advantages
Advantages of
of
of
of block
block
block
block numbers
numbers
numbers
numbers
You can connect almost any block to an input of the current block by means of its block number.
In this way, you can reuse the interim results of logical or other operations, reduce
programming effort, save memory space and clean up your circuit layout. To do so, however,
you need to know how xLogic has named the blocks.
