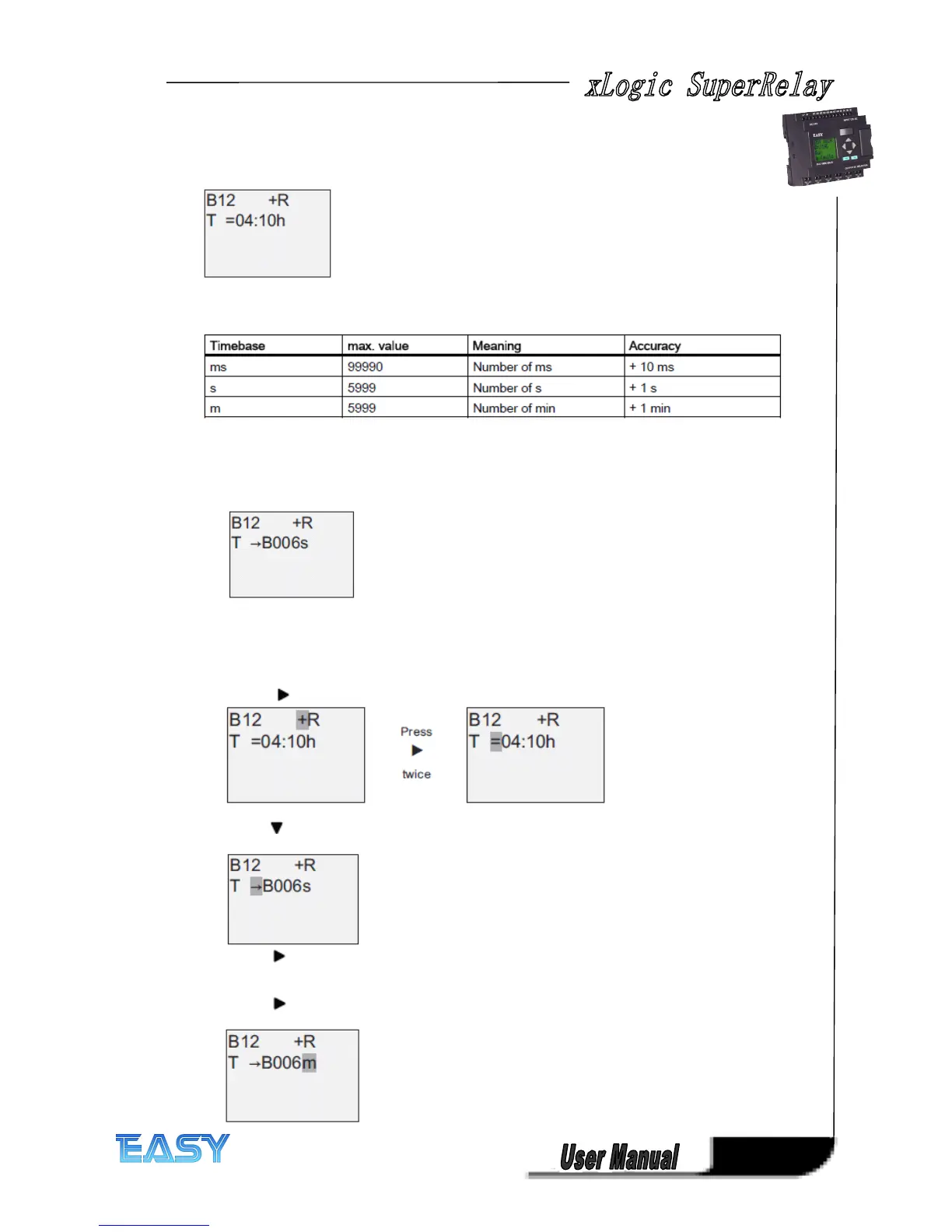

The display in programming mode (example):
If the referenced block (B6, in the example) returns a value that lies out of the valid range,the
value is rounded up or down to the next valid value.
Parameter
Parameter
Parameter
Parameter preset
preset
preset
preset =
=
=
= Actual
Actual
Actual
Actual value
value
value
value of
of
of
of an
an
an
an already-programmed
already-programmed
already-programmed
already-programmed function
function
function
function
How to include the actual value of an already-programmed function:
1. Press to move the cursor to the equal sign of parameter T.
2. Press to change the equal sign into an arrow. If it exists, the last referenced block and
its timebase is shown.
3. Press to move the cursor to the "B" of the shown block, and then press to select the
required block number.
4. Press to move the cursor to the block's timebase and press to select the required
timebase.
