MI = Configured time interval
MN = Time-to-go
OT = Total time expired since the last 1 signal at the Ral input
These values are principally held retentive!
Parameter
Parameter
Parameter
Parameter
The maintenance interval MI can be provided by the actual value of another
already-programmed function:
Analog comparator: Ax – Ay
Analog trigger: Ax
Analog amplifier: Ax
Analog multiplexer: AQ
Analog ramp: AQ
Analog math: AQ
PI controller:AQ
Data latching relay: AQ
Up/Down counter: Cnt
The value of ＂ＭＩ＂ can be set and modified in parameter mode. For information about how
to modify, refer to chapter 4.2.2 please.
Description
Description
Description
Description of
of
of
of the
the
the
the function
function
function
function

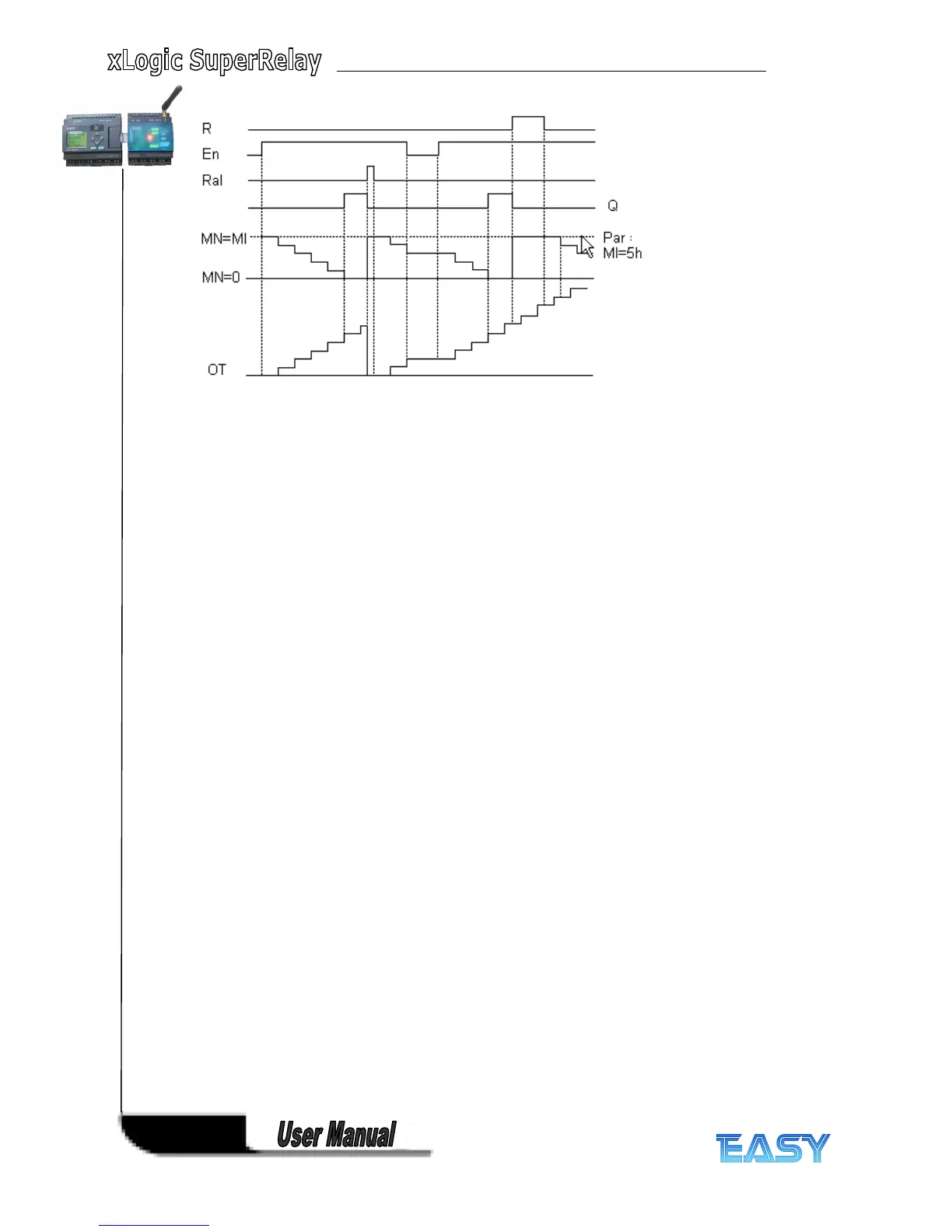

The hours counter monitors input En. As long as the status at this input is 1, xLogic calculates
the time expired and the time-to-go MN. xLogic displays these times when set to configuration
mode. The output is set to 1 when the time-to-go is equal to zero.
You reset output Q and the time-to-go counter to the specified value MI with a signal at input
R. The operation hour counter OT remains unaffected.
You reset output Q and the time-to-go counter to the specified value MI with a signal at input
Ral. The operation hour counter OT is reset to 0.
Depending on your configuration of the Q parameter, the output is either reset with a reset
signal at input R or Ral, or when the reset signal is 1 or the En signal is 0.
